Axis Q6075-S User Manual

AXISQ6075-SPTZNetworkCamera
Specifications

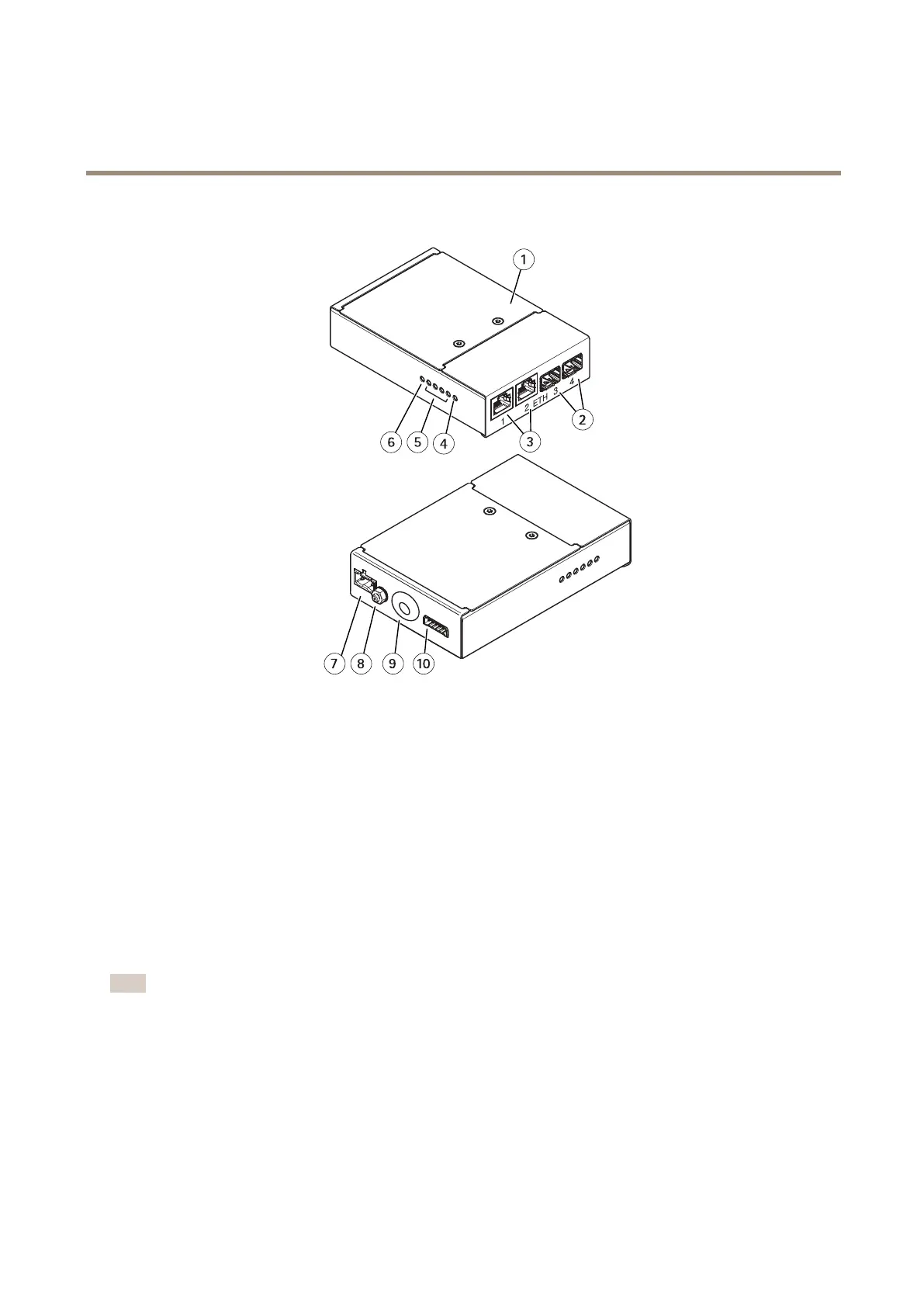

AXIST8607MediaConverterSwitch-externalview
1
Cover
2
NetworkconnectorSFP(2x)
3
NetworkconnectorRJ45(2x)
4
CameranetworkLEDindicator
5
NetworkLEDindicator(4x)
6
PowerLEDindicator
7
Powerconnector(DCinput)
8
Groundingscrew
9
Multicableinlet
10
I/Oterminalconnector
Howtopressurizethecamera(recommended)
ThecamerahousingcanbelledwithNitrogengastopreventcondensation.
Thellingprocessisrepeatedthreetimes,releasingthepressurebetweenllings,tomakesurethatallairandhumidityispurged
fromthehousing.
Note
Thecamerahousinghasanpressurereliefvalvethatlimitsthellingpressureto0.5bar(7psi).Duringnormalusethe
pressureinsidethecamerahousingmaydropbelowthatpressure.Forfullprotectionmakesurethatthepressureisabove
0.2bar(3psi).
1.Settheregulatorgaugeonthegascylinderto0.5bar(7psi).
2.Removethecapsfromtheinletvalveandthepressurereliefvalve.
3.Placethechuckontheinletvalveandpressdowntollthecamerawithnitrogen.
