Axon AX1024

Axon Body 3 Camera User Manual
Axon Enterprise, Inc. Page 35 of 44

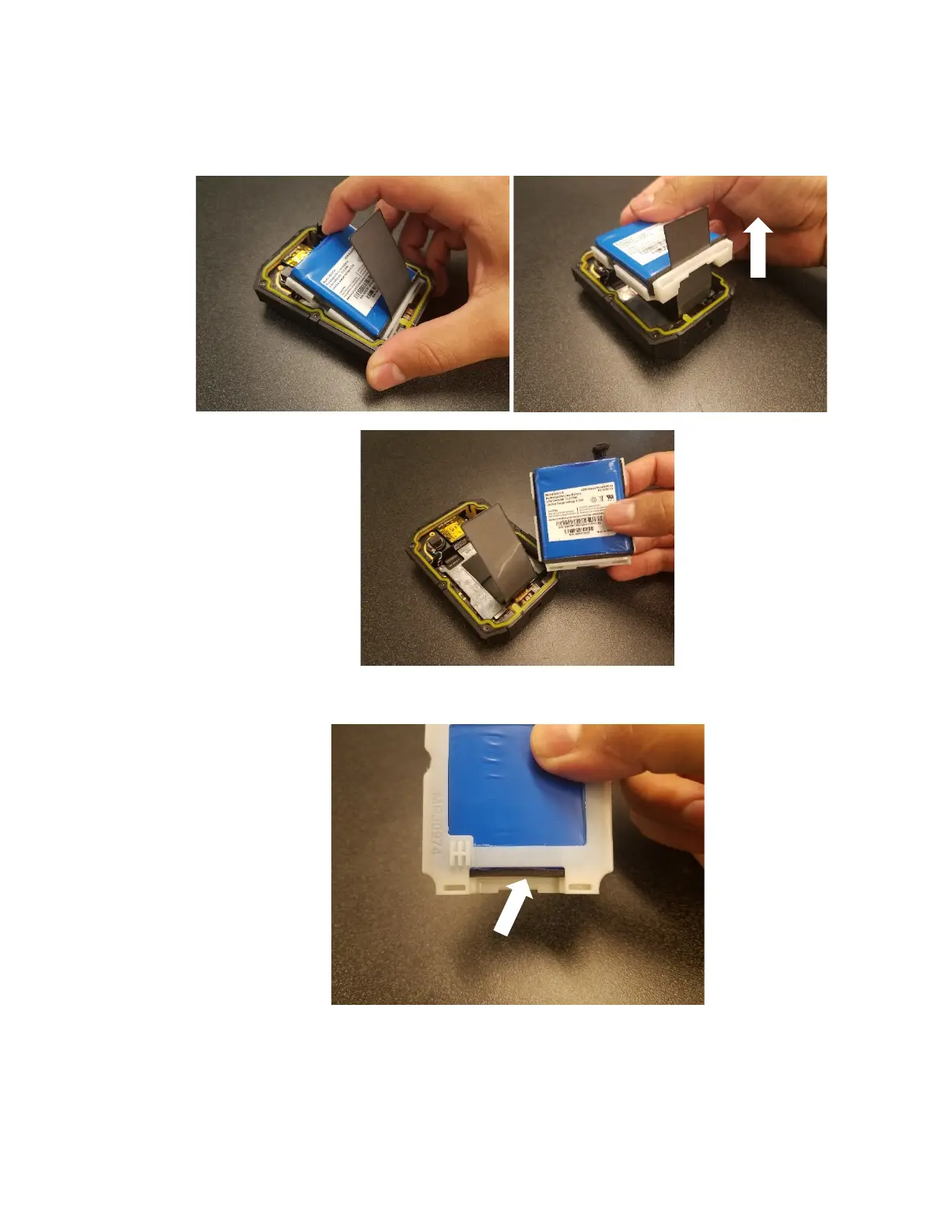

5. Lift battery assembly from top edge and slide the PGS through the slot in the bottom of
the assembly to remove from camera.
6. Locate the slot between the foam and plastic frame at bottom of new battery assembly.
