USER MANUAL _ 6
The MagicPanel 602 consists of a metal frame and plastic covers. The
luminaire is non-waterproof. The power connectors and DMX512 signal
connectors are on the back of the fixture’s base.

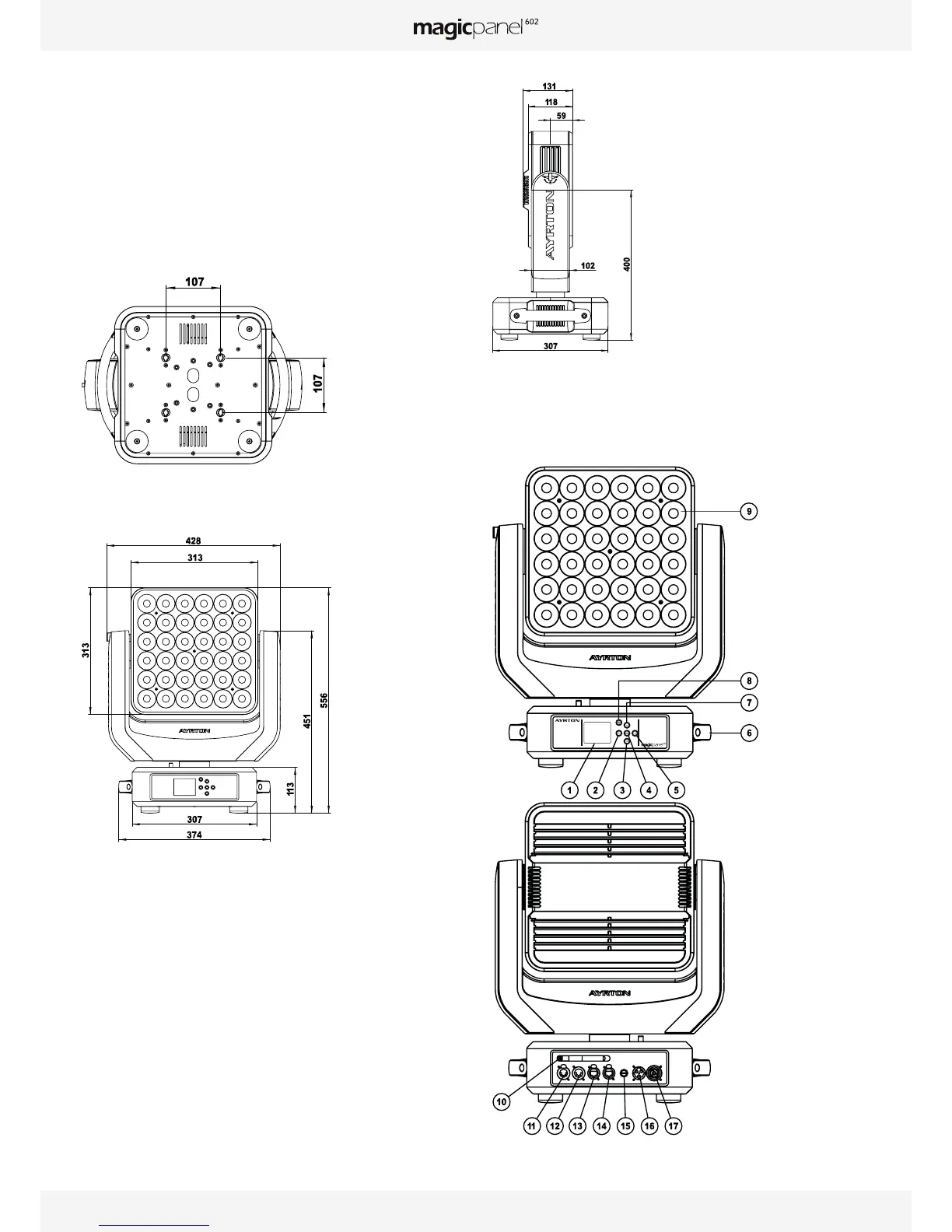

DIMENSIONS
Bottom view
Front view
Side view
DESCRIPTION
