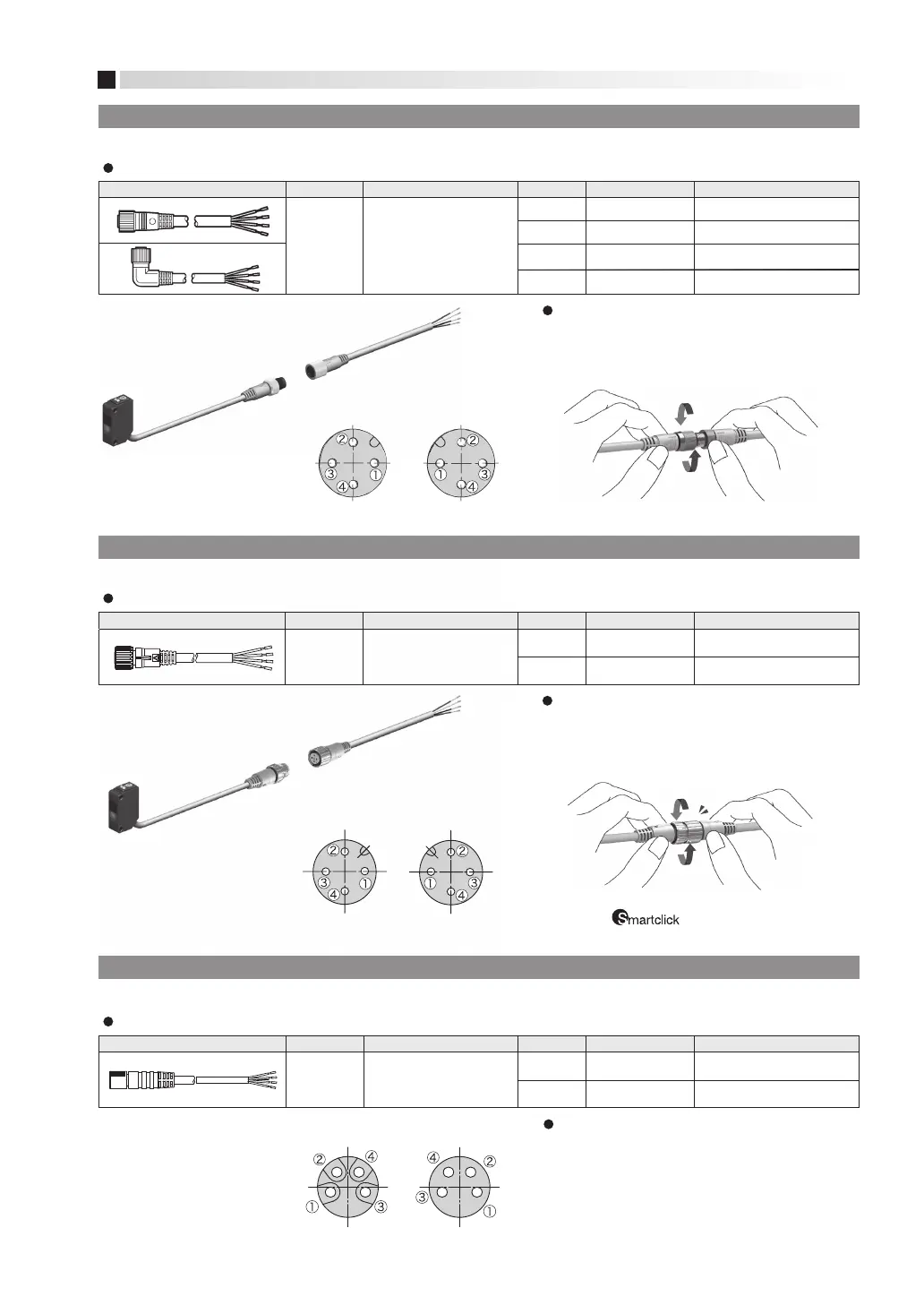

Azbil HP7-P11 - PA5 Series Cable; PA7 Series Cable; PA8 Series Cable

13
Switches side
(Male)
Connector side
(Female)
PA8 Series cable
Be sure to use a PA8 Series connector with cable when connecting a M8 preleaded connector or M8 connector type switch.
2 m
5 m
PA8-4I SX2MK
PA8-4I SX5MK
Vinyl-insulated cable
with high resistance
to oil and vibration
1: brown, 2: white, 3: blue, 4: black
1: brown, 2: white, 3: blue, 4: black
DC
PA5 Series cable
PA7 Series cable
Be sure to use a PA7 Series connector with cable when connecting Quick Lock type switch.
PA5 Series connector with cable
2 m
5 m
2 m
5 m
Vinyl-insulated cable
with high resistance
to oil and vibration
(UL/NFPA79 CM, CL3)
1: brown, 2: white, 3: blue, 4: black
1: brown, 2: white, 3: blue, 4: black
1: brown, 2: white, 3: blue, 4: black
1: brown, 2: white, 3: blue, 4: black
PA5-4I SX2SK
PA5-4I SX5SK
PA5-4I LX2SK
PA5-4I LX5SK
DC
PA7 Series connector with cable
2 m
5 m
PA7-4I SX2SK
PA7-4I SX5SK
Vinyl-insulated cable with
high resistance to oil and
vibration (UL/NFPA79 CM)
1: brown, 2: white, 3: blue, 4: black
1: brown, 2: white, 3: blue, 4: black
DC
Preleaded
connector type
PA5 Series
connector with cable
female
Switches side
(Male)
Connector side
(Female)
male
Tightening the connector
PA5 connector sideSwitches side
Align the grooves and rotate the fastening nut on
the PA5 connector by hand until it fits tightly with the
connector on the switches side.
Tightening the connector
Align the triangle mark and mate the male and female
connector then rotate 45 degree to match the keys on
the rings by hand.
PA8 Series connector with cable.
Tightening the connector
PA7 connector sideSwitches side
PA7 Series
connector with cable
female
Switches side
(Male)
Connector side
(Female)
male
Quick Lock type
Cable lengthShape
Cable properties Lead colorsCatalog Power supply
Cable lengthShape Cable properties Lead colorsCatalog Power supply
Cable lengthShape Cable properties Lead colorsCatalog Power supply
Interchangeable with Smartclick made by OMRON Corporation.
Smartclick is trademark of OMRON Corporation.
Be sure to use a PA5 Series connector with cable when connecting a preleaded connector or connector-type switch.
Align the grooves and rotate the fastening nut on the PA8
connector by hand until it fits tightly with the connector
on the switches side.
CONNECTOR WITH CABLE
