Page 9
Universal
Rail
Upper
Support
Rail
Pre-drill
3/16"
Scrap piece of
wood cut to
stair angle

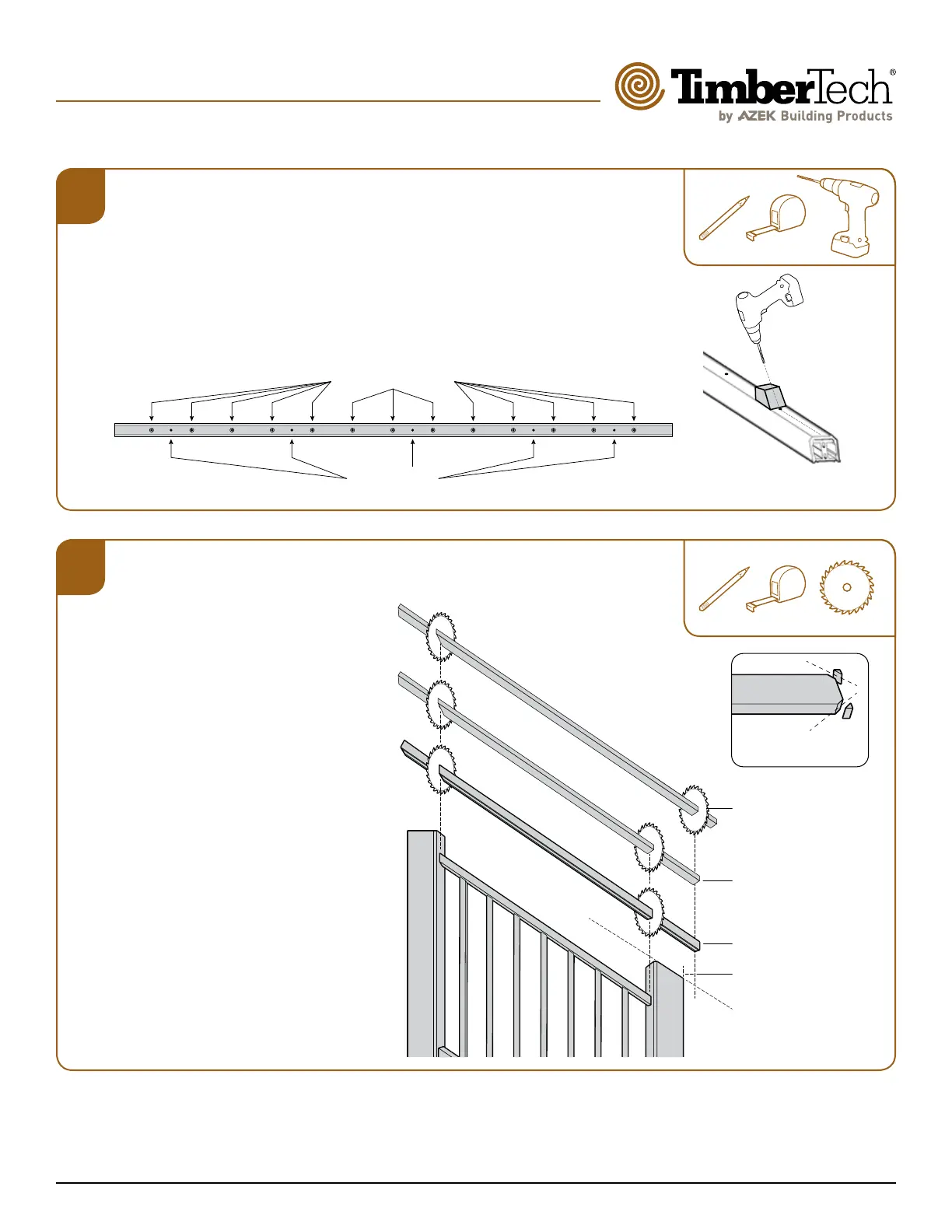

INSTALLING DRINK RAIL – STAIR PANELS
FOR CLASSIC COMPOSITE SERIES RAILING
PREPARE UPPER SUPPORT RAIL
Measure, mark and drill 3/16" diameter holes down through the upper support rail
at 15" on-center intervals
(Dia. #1A). There must be a hole drilled between the first
and second baluster at each end of the rail. These holes will be used to run anchoring
screws into the bottom of the deck board. Holes should be drilled to match the angle
of the stairs. A scrap piece of wood cut to stair angle may help.
(Dia. #1B).
1
3/16" Holes
(spaced 15" on-center or less)
Baluster Screws
Dia. #1A Dia. #1B
2
CUT UNIVERSAL RAIL
AND DECK BOARD
Measure, mark and cut the 2nd
Universal Rail (purchased separately)
and deck board to length
(Dia. #2A).
Both ends need to be cut to match the
angle of the Top Support Rail.
For Between-the-Post applications,
trim both ends of deck board for a clean
finish
(Dia. #2B). Place the Universal
Rail over the top support rail between
the post sleeves.
• For Over-the-Post applications,
proceed to Step 3.
• For Between-the-Post applications,
skip to Step 4.
Drink Rail (deck board)
Between-the-Posts Application –
measure between posts.
Drink Rail (deck board)
Over-the-Posts Application –
butt up to top post, and hang over
bottom post approximately 1½".
Universal Rail –
measure between posts
1½"
For Over-the-Post applications,
cut post sleeve at same angle
and height as universal rail.
Trim deck board corners
for a clean finish.
Dia. #2BDia. #2A
