AZEK TimberTech Impression Rail Express 6 - Attaching Clips to Deck Board and Post Caps

Page 11
#8x3/4" SS
MOD Truss
K-Lath Screws
(phillips head)
Impression Rail Express
®
Drink Rail Clip Assembly
Drink Rail (deck board)
Between-the-Posts
Application
Bottom Rail Cover
(inverted; purchased
separately)
Drink Rail (deck board)
Over-the-Posts Application
Bottom Rail Cover
(inverted; purchased
separately)

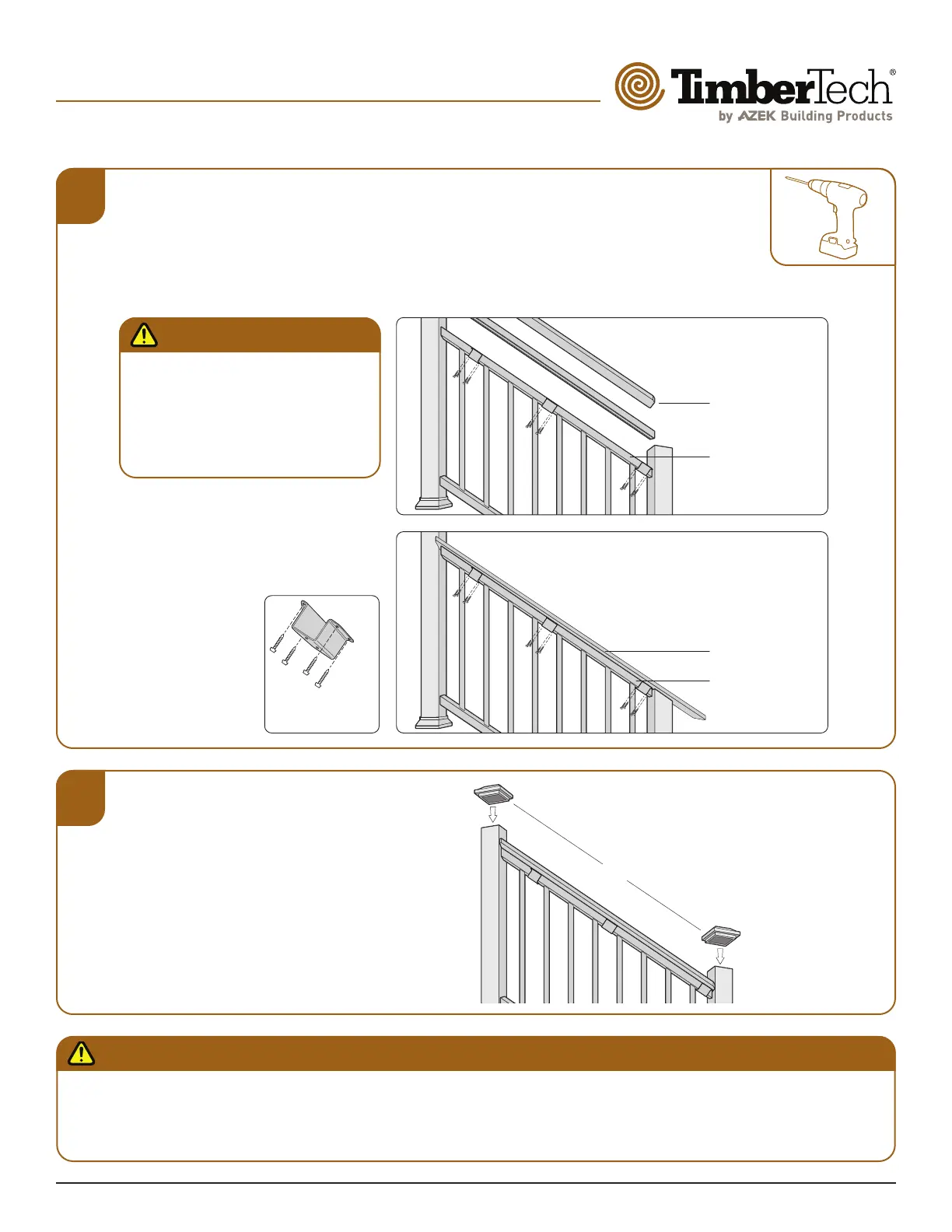

INSTALLING DRINK RAIL – STAIR PANELS
FOR IMPRESSION RAIL EXPRESS
®
IMPORTANT NOTE:
The diagrams and instructions in this brochure are for illustration purposes only and are not meant to replace a licensed professional. Any construction
or use of the product must be in accordance with all local zoning and/or building codes. The consumer assumes all risks and liability associated with
the construction or use of this product. The consumer or contractor should take all necessary steps to ensure the safety of everyone involved in the
project, including, but not limited to, wearing the appropriate safety equipment. Except as contained in the written limited warranty, The AZEK
Company does not provide any other warranty, either express or implied, and shall not be liable for any damages, including consequential damages.
ATTACH POST CAPS
BETWEENTHEPOST APPLICATIONS
5
4
ATTACH DRINK RAIL CLIPS TO DECK BOARD
Place the Deck Board on top and centered over the Bottom Rail Cover. For both Between-the-
Post (Dia #4A) and Over-the-Post and Applications (Dia #4B), secure Deck Board and Bottom
Rail Cover to Upper Support Rail using #8x3/4" SS MOD Truss K-Lath Screws (phillips head)
included with the Drink Rail Clip Kits.
Dia. #4C
IMPORTANT NOTE:
Set the Drink Rail in place and use the
Drink Clip holes to mark locations.
Then drill 1/8" diameter hole ¾" deep
into the bottom of the deck board.
Care must be taken not to drill through
the top of the deck plank. (Dia. #4C)
Post Caps
Dia. #5
Dia. #4A - Between-the-Post
Applications
Dia. #4B - Over-the-Post
Applications
