AZEK TimberTech Impression Rail Express 6 - Attaching Clips to Deck Board and Post Caps

Page 7
Post Caps
ATTACH POST CAPS BETWEENTHEPOST APPLICATIONS
5
INSTALLING DRINK RAIL – LEVEL PANELS
FOR IMPRESSION RAIL EXPRESS
®
4
Dia. #5

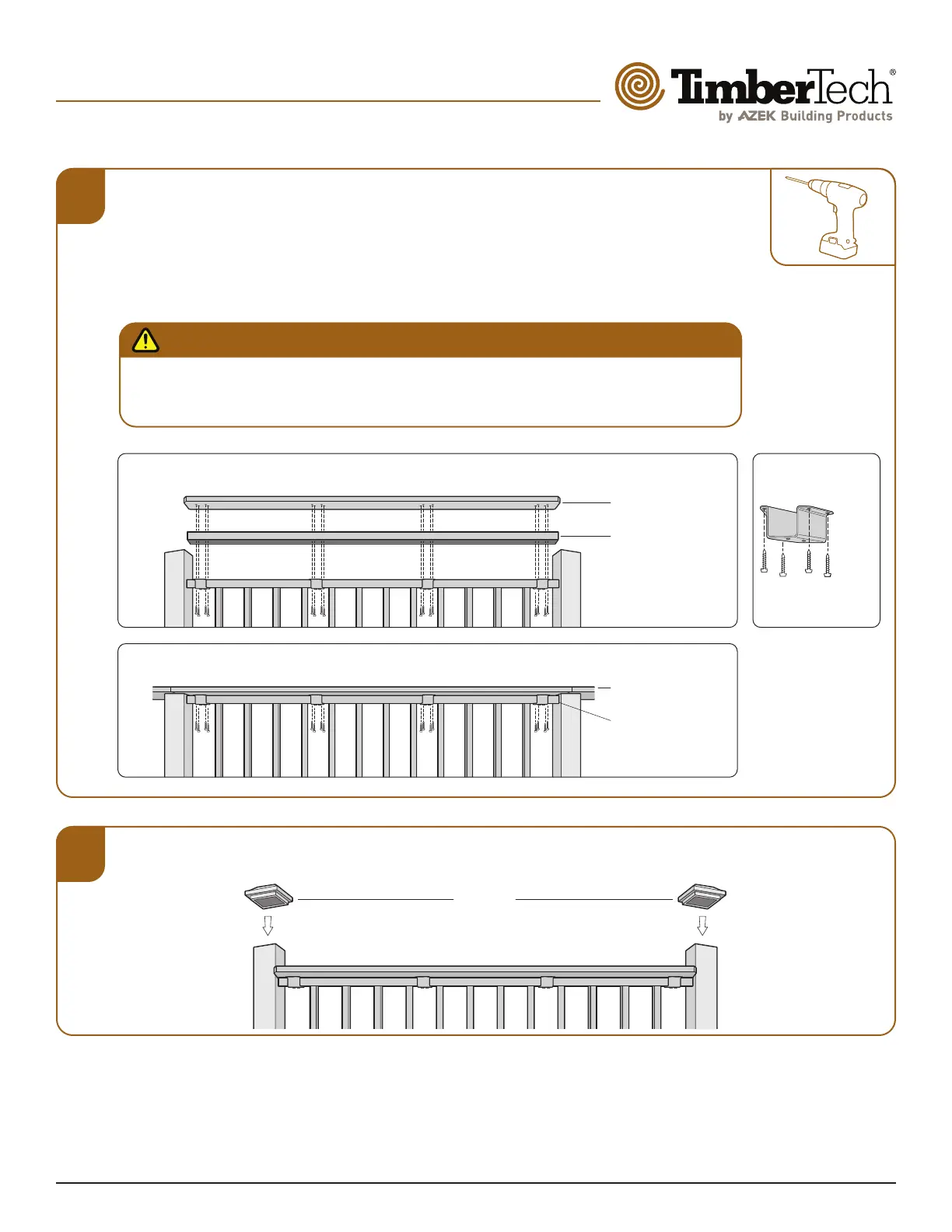

ATTACH DRINK RAIL CLIPS TO DECK BOARD
Place the Deck Board on top and centered over the Bottom Rail Cover. For both Between-the-
Post (Dia #4A) and Over-the-Post and Applications (Dia #4B), secure Drink Rail Clips to Deck
Board using #8x3/4" SS MOD Truss K-Lath Screws (phillips head) included with the Drink Rail
Clip Kits.
IMPORTANT NOTE:
Set the Drink Rail in place and use the Drink Clip holes to mark locations. Then drill 1/8"
diameter hole ¾" deep into the bottom of the deck board. Care must be taken not to drill through
the top of the deck plank.
#8x3/4" SS
MOD Truss
K-Lath Screws
(phillips head)
Impression Rail Express
®
Drink Rail Clip Assembly
Drink Rail (deck board)
Over-the-Posts Application
Bottom Rail Cover
(inverted; purchased
separately)
Drink Rail (deck board)
Between-the-Posts
Application
Bottom Rail Cover
(inverted; purchased
separately)
Dia. #4A - Between-the-Post Applications
Dia. #4B - Over-the-Post Applications
Dia. #4C
