Drawer Fitting Refer to drawer assembly guide with the drawer pack.
Handles Position as required.
NOTE: care should be taken when drilling for the handle so as not to drill in to the shelf.
Soft Closer
Lay on
Frame
Fit to side panel with
2 x scews supplied
Fit to top hinge holes in side
panel opposite top hinge.

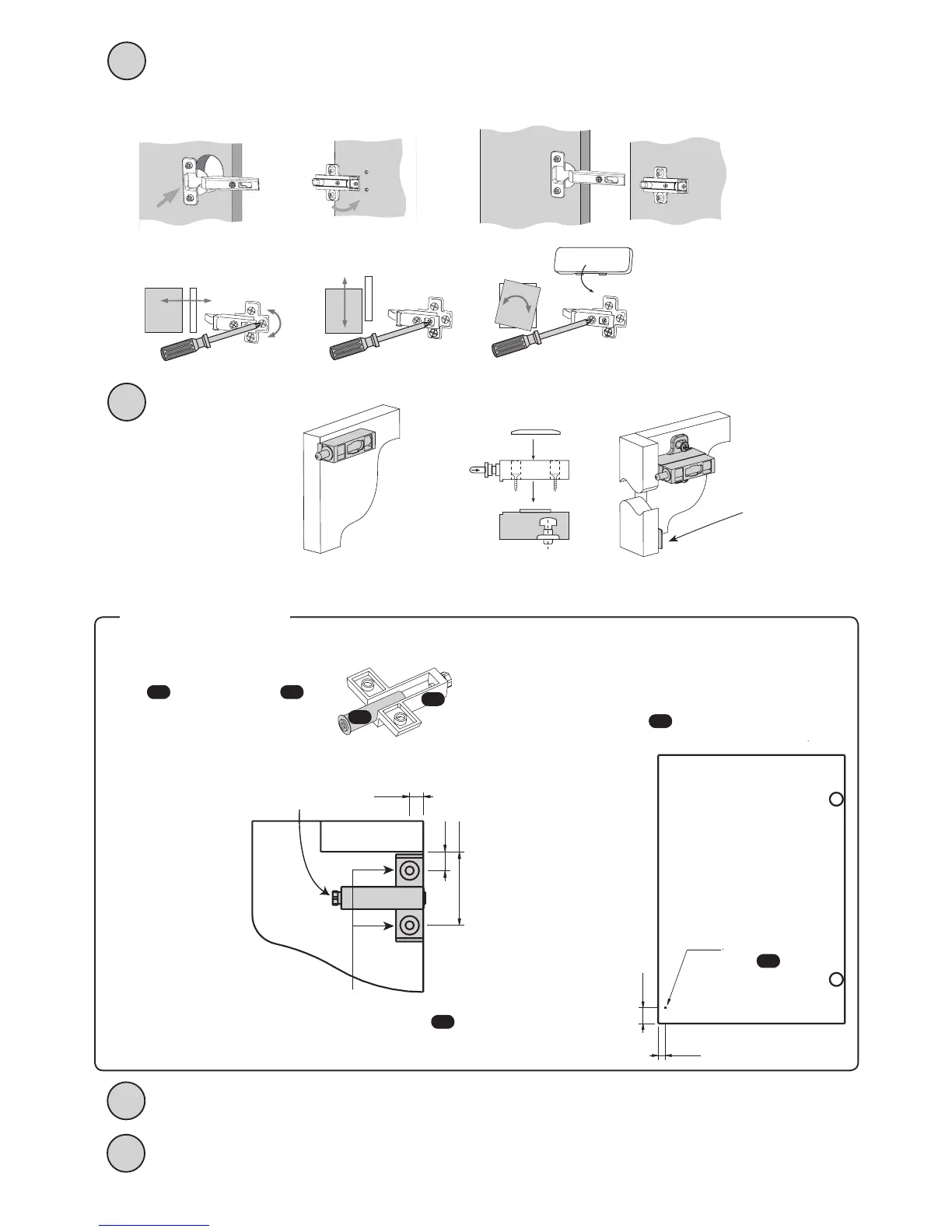

Insert Door Hinge into
rear recess in door
Affix Hinge Plate
on cabinet
Now, Clip Hinge onto Hinge Plate
Turn screws as shown to adjust door position
After adjustment is
complete apply cover plate
Door Hinges
mounting plate for
Inset Doors Only
Fixing of Magnetic Catch
First, carefully push the magnetic
catch , into the holder ,
as shown, until it clips onto the
adjustment screw at the end.
TOP RAIL
43mm
11mm
8mm
15mm screw fixing
adjustment screw
Fixing of Strike Plate
Using a 3mm drill bit, carefully drill a hole in the door,
as shown, approximately 10mm deep.
Now tap the strike plate into this hole, and close
the door.
LH hung wall door shown
3mm hole drilled
for metal striking
plate
20mm
43mm
The door should be
pushed onto the
magnetic catch,
to close it. Then,
to open the door,
simply push the
door again, and
release, and the
door should open.
If the door does
not open smoothly,
then it may require
further adjustment
of the hinges.
This section details all
options available. You
should follow the details
that refer to the system
you have purchased.
10
11
12
13
Fit the door
stop at the
bottom of
the frame, as
required
Push-to-open only:
ARAS
AT
AS
AR
AT
This is now ready to be fitted to the unit.
Carefully mark holes
for fixing the holder,
in the positions
shown, and using a
3mm drill bit, drill
approximately 5mm
deep.
Once fitted, use the adjustment screw to fix catch
in the optimum position.
Then fix the complete
magnetic holder to the
side panel, as shown.
AS
