SELF HELP GUIDE

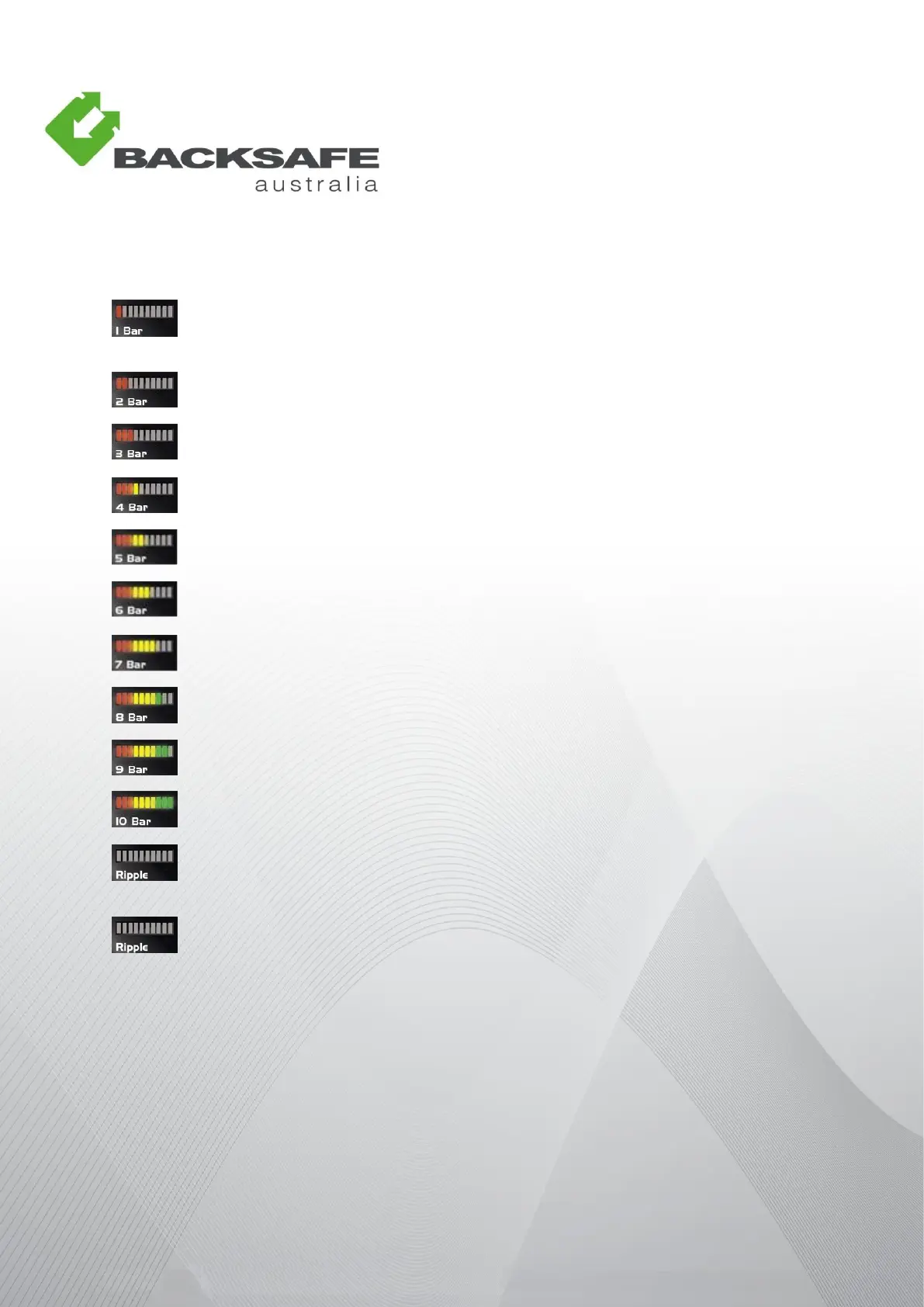

The status lights display battery condition when lights are steady and error codes when lights
are flashing on and off. Count the bars lit and check against this list.
Low Battery Voltage - The battery needs charging or there is a bad connection to the
battery. Check the connections to the battery. If the connections are good, try charging
the battery.
Motor Disconnected - The motor has a bad connection. Check all the connections and
leads between the motor and the controller.
Motor Wiring Trip - The motor has a short circuit to a battery. Check all the connections
and leads between the motor and the battery.
Possible Control System Trip - A brake system trip is indicated. Make sure that all brake
connections are secure.
Not Used
Not Used
Throttle Trip - A throttle wiring fault has been detected.
Possible Control System Trip - A control system trip is indicated. Make sure that all
connections are secure.
Solenoid Brake Trip - The machine will not work if the drive/freewheel lever is in the
freewheel position. If not in freewheel, check all brake connections.
High Battery Voltage - An excessive voltage has been applied to the S-drive. This is
usually caused by a poor battery connection. Check the battery connections.
(Up and Down) Throttle Displaced - The throttle has been not at rest when the machine
is switched on or operated too soon after switching the power on. Place the throttle in
the neutral position and it should operate normally.
(Up only) Charger Charging - The machine will not operate because the battery charger
is connected.
NOTE: Whenever the display is in flashing mode, the power must be turned off and on again to
reset the controller.
If the problems persist after you have made the checks described above please contact your
supplier.
