1 1/4 in
[33 mm]
MN3
(x2)
UPRIGHT
THREADED BRACKET
(x1)
A4M01171
PANEL BOARD - W4L14326
5/8"x14"x16 5/8" (15x356x423)
PB2
(x1)
UPRIGHT - W4L14324
5/8"x2 3/8"x29 1/4" (15x60x742)
MN3
(x2)
NOTE:
PARTS MUST BE ORIENTATED AS
SHOWN FOR CORRECT ASSEMBLY.
LOCATE AND USE THE PILOT
HOLES TO ASSEMBLE PB2 & MN3
BOARDS AS SHOWN.
PB2
(x1)
PANEL BOARD
171
(x1)
3-SIDED-90° BRACKET - BLK
NOTE ORIENTATION
026
(x2)
BOLT - 1-3/4"
405
(x2)
WASHER - 6x15
404
(x2)
NUT BARREL - 5/8"
400
(x2)
WASHER - 8x15
171
(x2)
BOLT - 1"
NOTE ORIENTATION
DON'T FULLY
TIGHTEN
DON'T FULLY
TIGHTEN
DON'T FULLY
TIGHTEN
BOLT WH BLK
1/4x1
(x2)
H100171
NUT BARREL WH BLK
1/4x5/8
(x2)
H100404
WASHER LOCK EXT BLK
6x15
(x2)
H100405
WASHER LOCK EXT BLK
8x15
(x2)
H100400
BOLT WH BLK
1/4x1-3/4
(x2)
H101026
NOTE:
ONLY FINGER TIGHTEN BOLT 026 -
1 3/4" TO PROPERLY ASSEMBLE
FUTURE STEPS.
NOTE PILOT
HOLES UP
1 1/4 in
[33 mm]

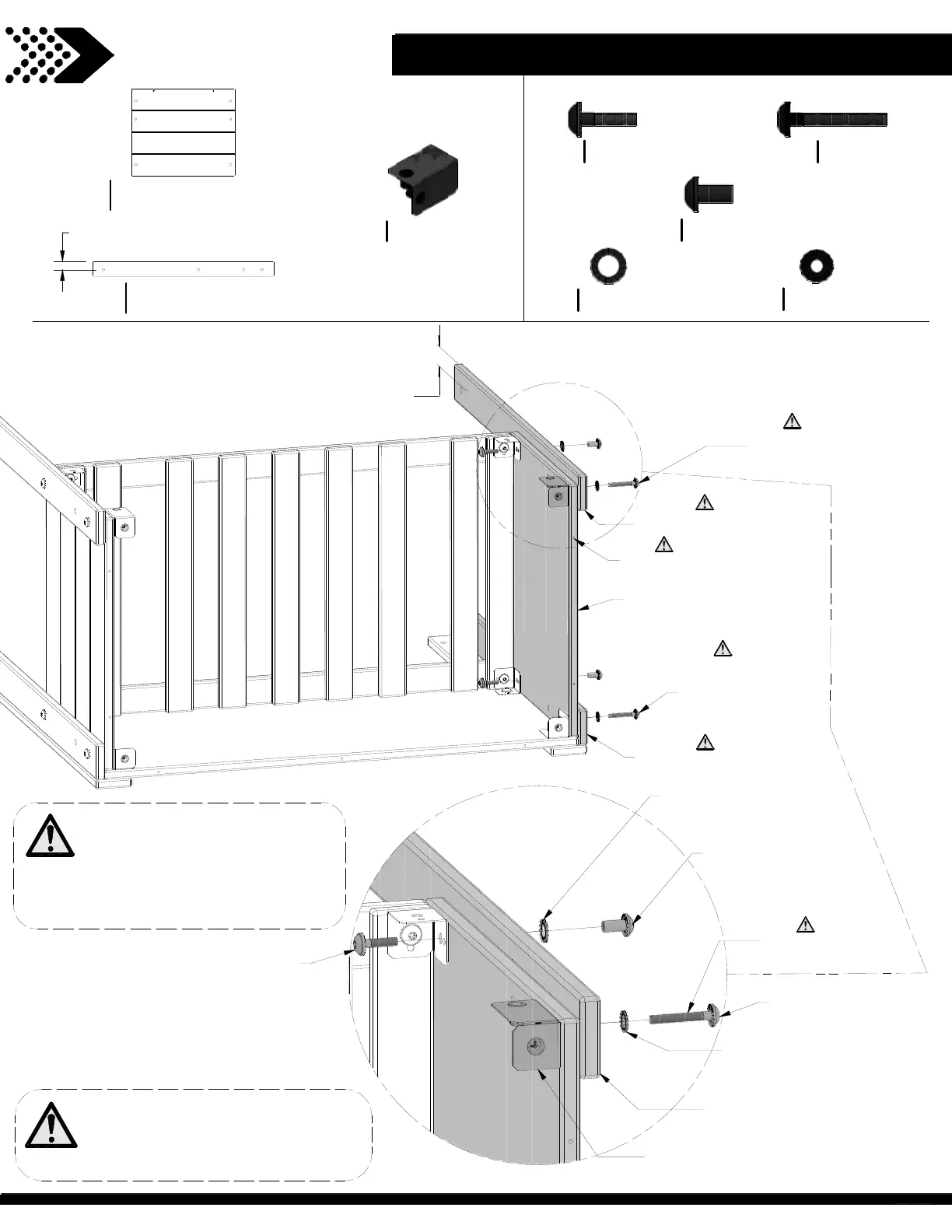

STEP 4A
18
