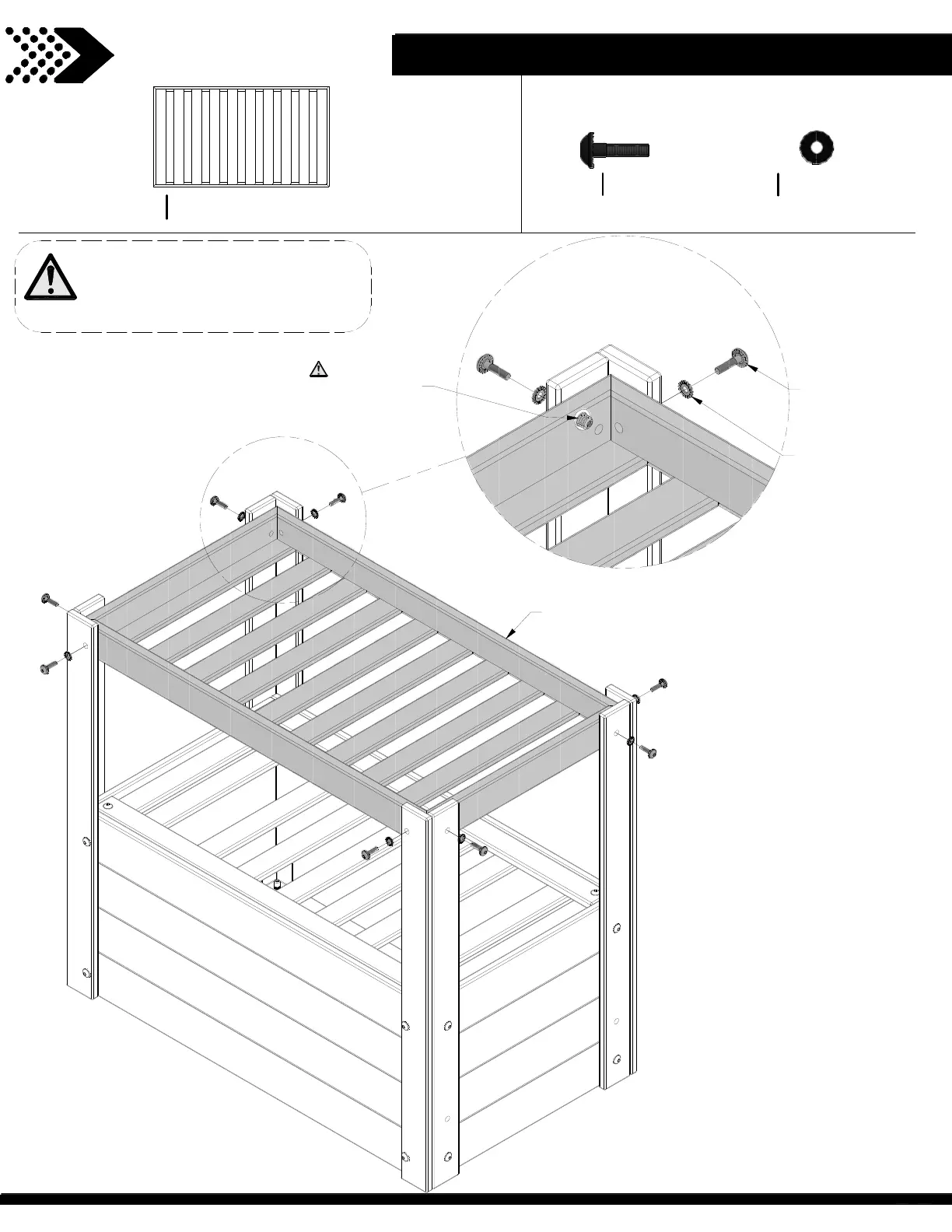

STEP 6

CP2

(x1)

COOLER SHELF

COOLER SHELF - W2A03103

2 3/8"x17 13/16"x31 5/16" (60x453x796)

CP2

(x1)

BOLT WH BLK

1/4x1

(x8)

H100171

WASHER LOCK EXT BLK

6x15

(x8)

H100405

NOTE:

ALIGN PILOT HOLES IN UPRIGHTS

WITH THE PILOT HOLES IN THE

SHELF AND MOUNT AS SHOWN.

171

(x8)

BOLT - 1"

405

(x8)

WASHER - 6x15

NOTE PRE-INSTALLED

THREADED INSERTS
