Backyard Discovery 1605022D - Page 38

BOLT WH
5/16x2
(10)
H100012
WASHER
LOCK EXT
8x19
(16)
H100030
T-NUT
5/16
(18)
H100074
UPRIGHT - W4L06891
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E2
(1)
NOTE HOLES
BOLT WH
5/16x2 1/4
(6)
H100013
NOTE HOLES

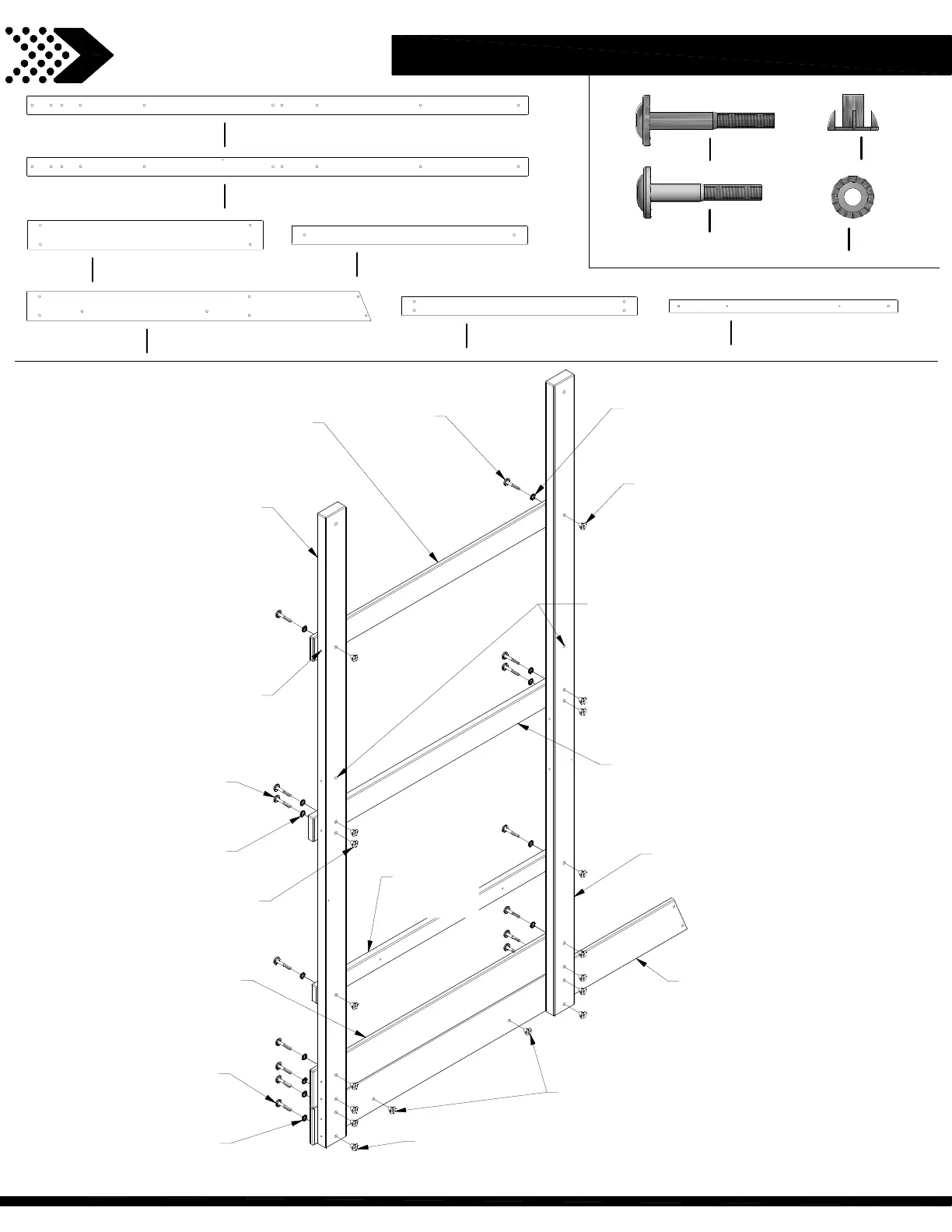

FORT ASSEMBLY
STEP 1
UPRIGHT - W4L06892
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E3
(1)
FLOOR RAIL - W4L06898
1"x3 3/8"x42 1/8" (24x86x1070)
H1
(1)
WALL RAIL - W4L06900
1"x2 3/8"x40 7/8" (24x60x1038)
J1
(1)
GROUND BOARD - W4L06896
5/8"x5 1/4"x42 1/8" (16x134x1070)
K3
(1)
GROUND BOARD - W4L13847
5/8"x5 1/4"x61 1/2" (16x134x1564)
K4
(1)
WALL RAIL - W4L06920
5/8"x3 3/8"x42 1/8" (16x86x1070)
M8
(1)
030 (x2)
WASHER - 8x19
012 (x2)
BOLT - 2"
074 (x2)
T-NUT - 5/16"
013 (x6)
BOLT - 2 1/4
030 (x6)
WASHER - 8x19
074 (x6)
T-NUT - 5/16"
074 (x10)
T-NUT - 5/16"
030 (x8)
WASHER - 8x19
012 (x8)
BOLT - 2"
M8 (x1)
WALL RAIL
E3 (x1)
UPRIGHT
E2 (x1)
UPRIGHT
K4 (x1)
GROUND BOARD
K3 (x1)
GROUND BOARD
J1 (x1)
WALL RAIL
H1 (x1)
FLOOR RAIL
INSTALL CENER T-NUTS
BEFORE MOUNTING BOARD
38
