Backyard Discovery 1605022D - Page 44

LAG SCREW WH
5/16x2
(1)
H100027
LAG SCREW WH
1/4x1 1/2
(2)
H100145
LAG SCREW WH
5/16x1 1/2
(3)
H100026
WASHER
LOCK EXT
6x15
(2)
H100138
WASHER
LOCK EXT
8x19
(4)
H100030
FLOOR RAIL - W4L06897
5/8"x3 3/8"x43 1/4" (16x86x1097)
(1)
M2
LADDER RAIL - W4L13845
1"x2 3/8"x50 3/8" (24x60x1279)
(1)
J6
FLOOR RAIL - W4L06914
5/8"x3 3/8"x43 1/4" (16x86x1097)
(1)
M5
NOTE HOLE LOCATION.
NOTE HOLE
LOCATIONS
CLOSER TO
J6 BOARD HOLE
LOCATION.

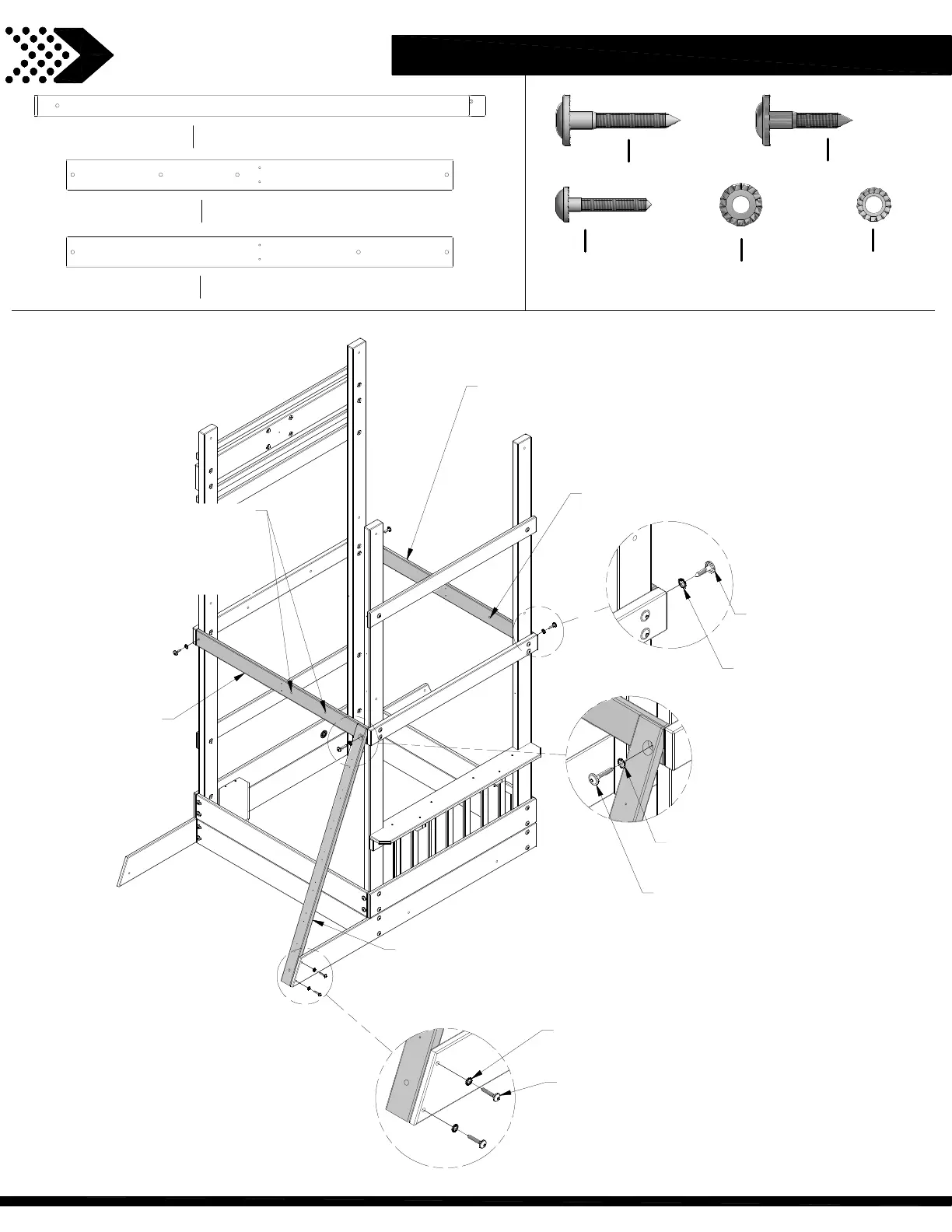

FORT ASSEMBLY
STEP 7
M5 (x1)
FLOOR RAIL
M2 (x1)
FLOOR RAIL
J6 (x1)
LADDER RAIL
138 (x2)
WASHER - 6x15
145 (x2)
LAG SCREW - 1 1/2"
030 (x1)
WASHER - 8x19
027 (x1)
LAG SCREW - 2"
030 (x3)
WASHER - 8x19
026 (x3)
LAG SCREW - 1 1/2"
44
