Backyard Discovery 1605022D - Page 50

LAG SCREW
WH
5/16x2
(4)
H100027
AWNING BOARD - W4L06906
1"x2 3/8"x14 1/8" (24x60x358)
(2)
J4
AWNING BOARD - W4L06907
5/8"x2 3/8"x34 1/8" (16x60x866)
(1)
N1

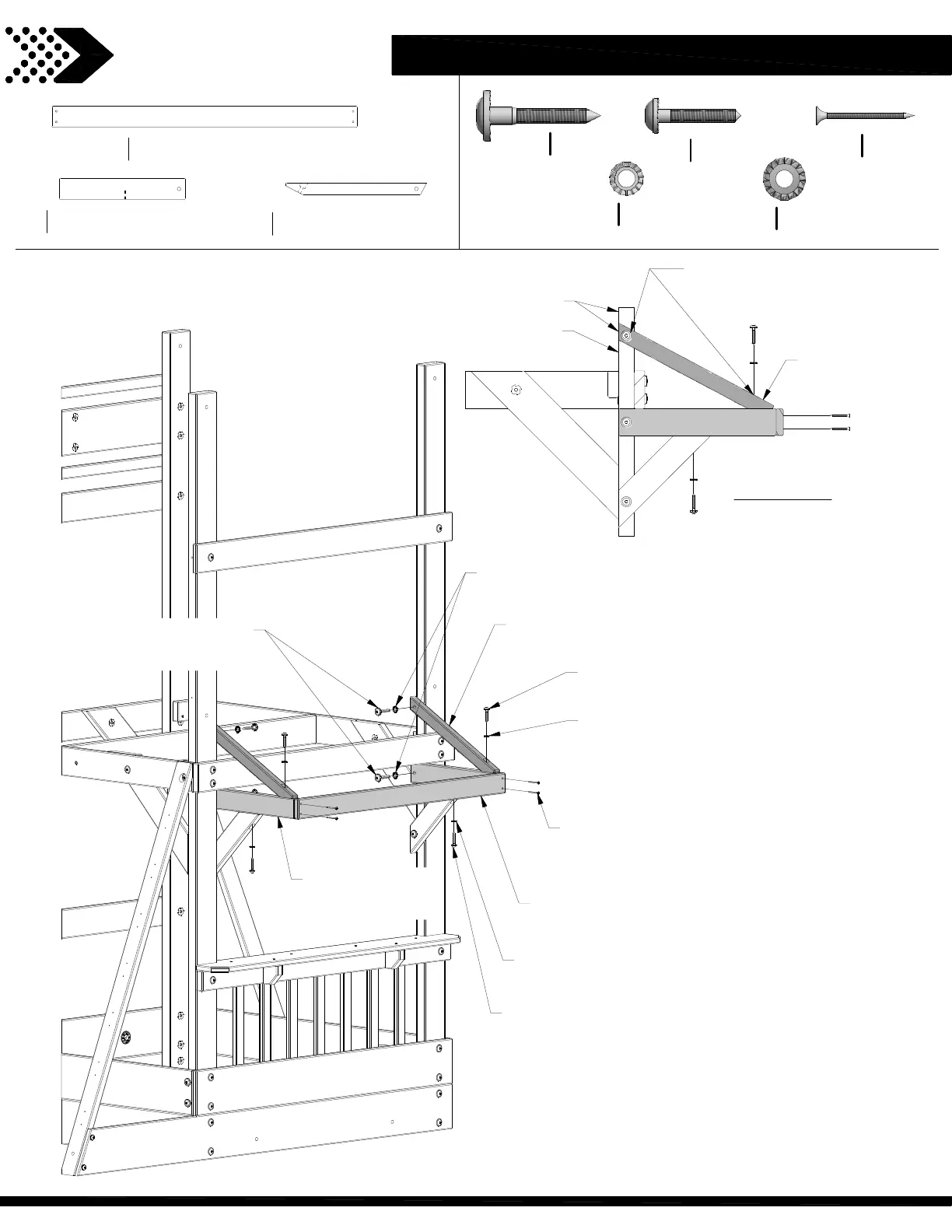

FORT ASSEMBLY
STEP 13
J4 (x2)
AWNING BOARD
089 (x4)
SCREW - 1 3/4"
WASHER
LOCK EXT
6x15
(4)
H100138
LAG SCREW
WH
1/4x1 1/2
(4)
H100145
WASHER
LOCK EXT
8x19
(4)
H100030
SCREW PFH
8x1 3/4
(4)
H100089
027 (x4)
LAG SCREW - 2"
030 (x4)
WASHER - 8x19
145 (x2)
LAG SCREW - 1 1/2"
138 (x2)
WASHER - 6x15
N1 (x1)
AWNING BOARD
SAFETY BOARD - W4L13853
1"x1 3/8"x15 3/4" (24x34x400)
(2)
T2
T2 (x2)
SAFETY BOARD
138 (x2)
WASHER - 6x15
145 (x2)
LAG SCREW - 1 1/2"
FLUSH
DRILL 3/16" - 5mm PILOT HOLES
WHERE SHOWN.
T2
SAFETY BOARD
UPRIGHT
SIDE VIEW
50
