Backyard Discovery 1605022D - Page 52

BOLT WH
5/16x1-1/2
(2)
H100010
WASHER
LOCK EXT
8x19
(3)
H100030
T-NUT
5/16
(2)
H100074
GROUND BOARD - W4L13852
5/8"x5 1/4"x44 1/2" (16x134x1129)
(1)
K6
LADDER RAIL - W4L13846
1"x2 3/8"x50 3/8" (24x60x1279)
(1)
J7
BOLT WH
5/16x1
(1)
H100008

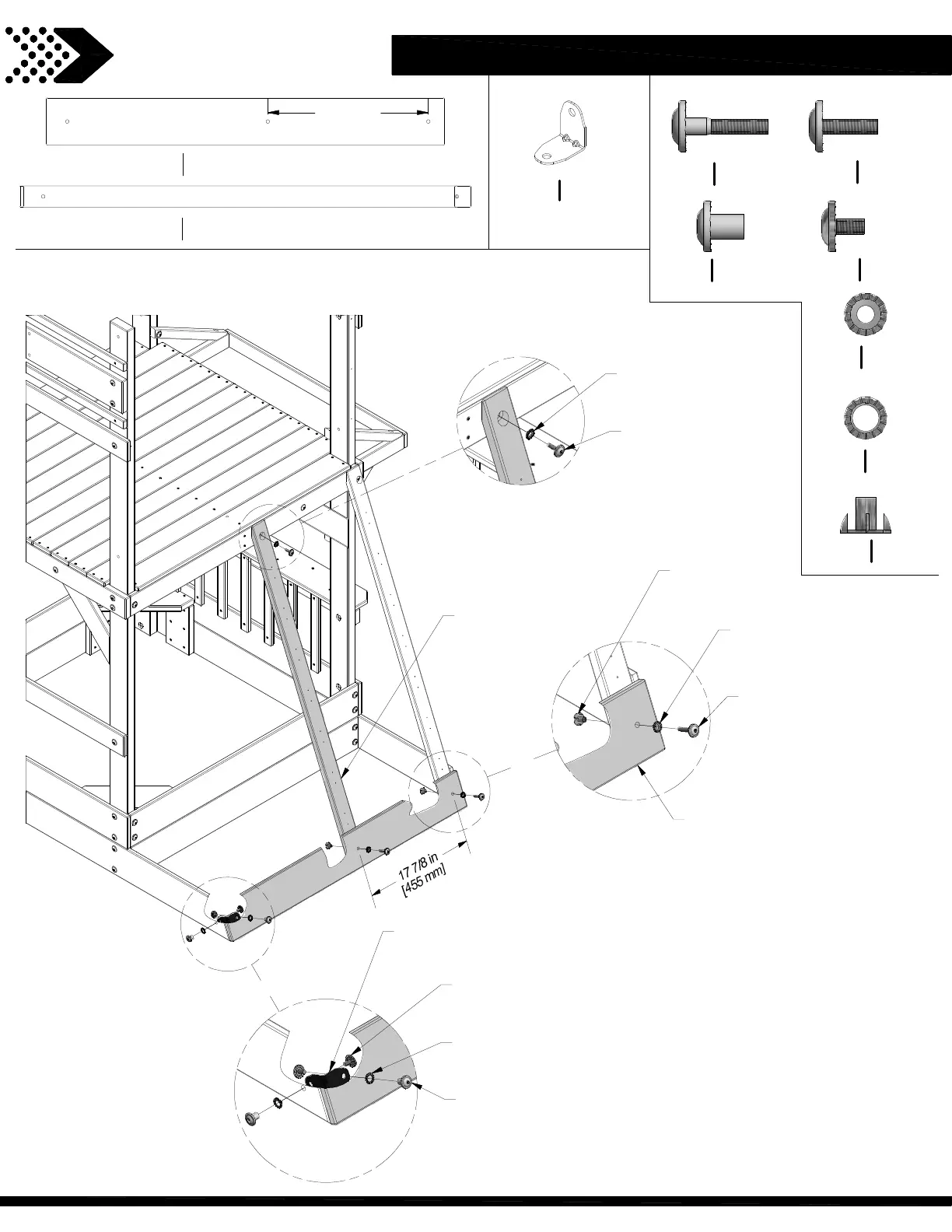

FORT ASSEMBLY
STEP 15
K6 (x1)
GROUND BOARD
010 (x2)
BOLT - 1 1/2"
J7 (x1)
LADDER RAIL
031 (x2)
WASHER - 12x19
115 (x2)
BOLT - 1/2"
048 (x1)
L BRACKET 2.5x38x55x55
030 (x2)
WASHER - 8x19
074 (x2)
T-NUT - 5/16"
030 (x1)
WASHER - 8x19
BOLT WH
5/16x1/2
(2)
H100115
NUT BARREL
WH
5/16 x 5/8
(2)
H100004
WASHER
LOCK EXT
12x19
(2)
H100031
L BRACKET
2.5x38x55x55
(1)
A4M01048
008 (x1)
BOLT - 5/16x1"
004 (x2)
NUT BARREL - 5/8"
17 7/8 in
[455 mm]
52
