Backyard Discovery 1605022D - Page 61

T-NUT
5/16
(8)
H100074
HORIZONTAL TARP SUPPORT - W4L13838
1"x3 3/8"x56 1/8" (24x86x1425)
(2)
H4
HORIZONTAL TARP SUPPORT - W4L13839
1"x3 3/8"x48 3/4" (24x86x1237)
(2)
H5
NOTE:
H5 PILOT HOLES
ARE UPWARD.

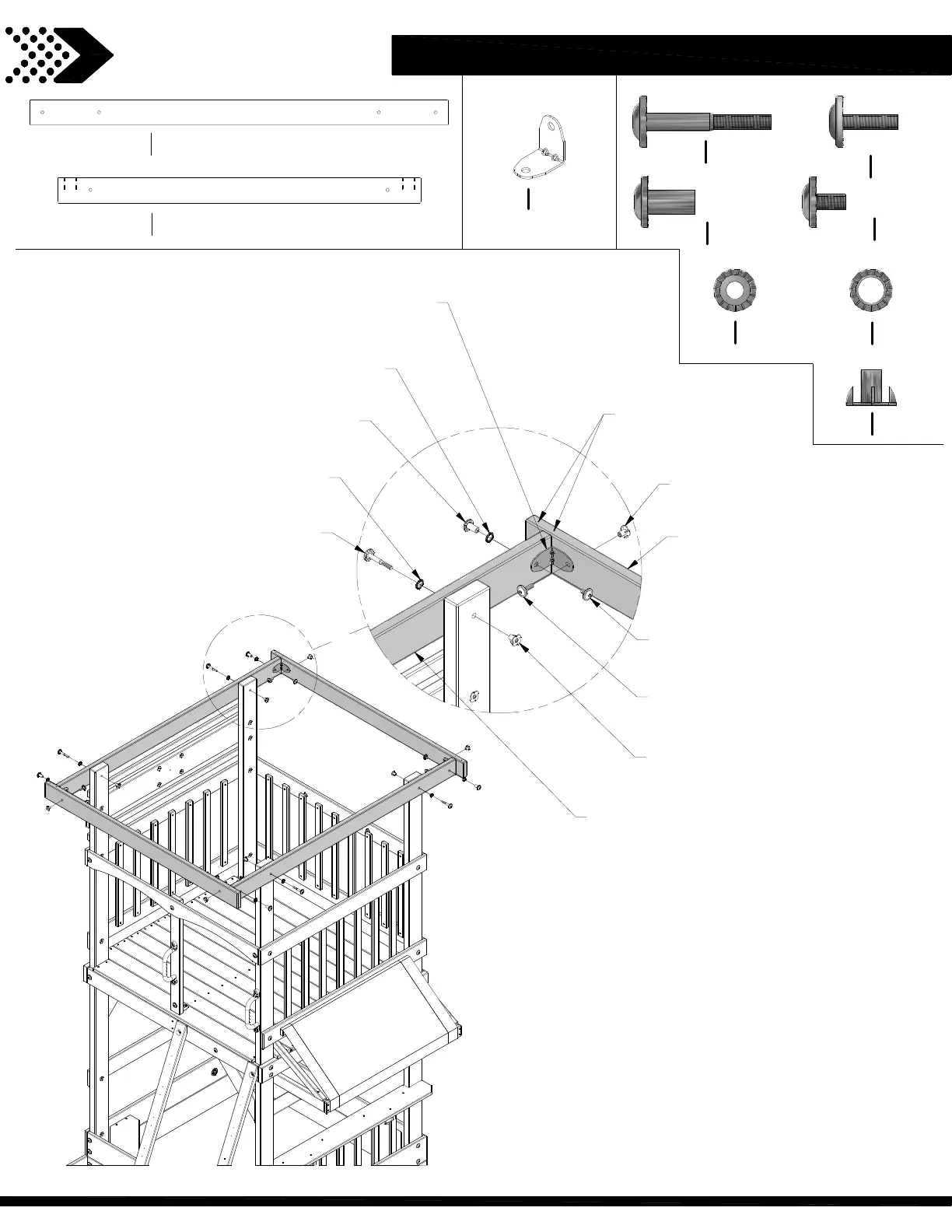

FORT ASSEMBLY
STEP 24
L BRACKET
2.5x38x55x55
(4)
A4M01048
074 (x4)
T-NUT - 5/16"
H5 (x2)
HORIZONTAL TARP SUPPORT
030 (x4)
WASHER - 8x19
005 (x4)
NUT BARREL - 7/8"
031 (x4)
WASHER - 12x19
115 (x4)
BOLT - 1/2"
008 (x4)
BOLT - 5/16x1"
074 (x4)
T-NUT - 5/16"
048 (x4)
L BRACKET 2.5x38x55x55
013 (x4)
BOLT - 2 1/4
H4 (x2)
HORIZONTAL TARP SUPPORT
BOLT WH
5/16x1/2
(4)
H100115
BOLT WH
5/16x1
(4)
H100008
BOLT WH
5/16x2 1/4
(4)
H100013
NUT BARREL
WH
5/16x7/8
(4)
H100005
WASHER
LOCK EXT
12x19
(4)
H100031
WASHER
LOCK EXT
8x19
(4)
H100030
61
