Backyard Discovery 1605022D - Page 64

SCREW PFH
8x1 1/4
(8)
H100087
ROOF BOARD - W4L06953
5/8"x2 3/8"x33 1/8" (16x60x840)
(2)
N2
SUNBURST HALF MOON - W4L06954
5/8"x4"x12" (16x102x306)
(2)
Y3
SCREW PFH
8x1 1/8
(4)
H100088

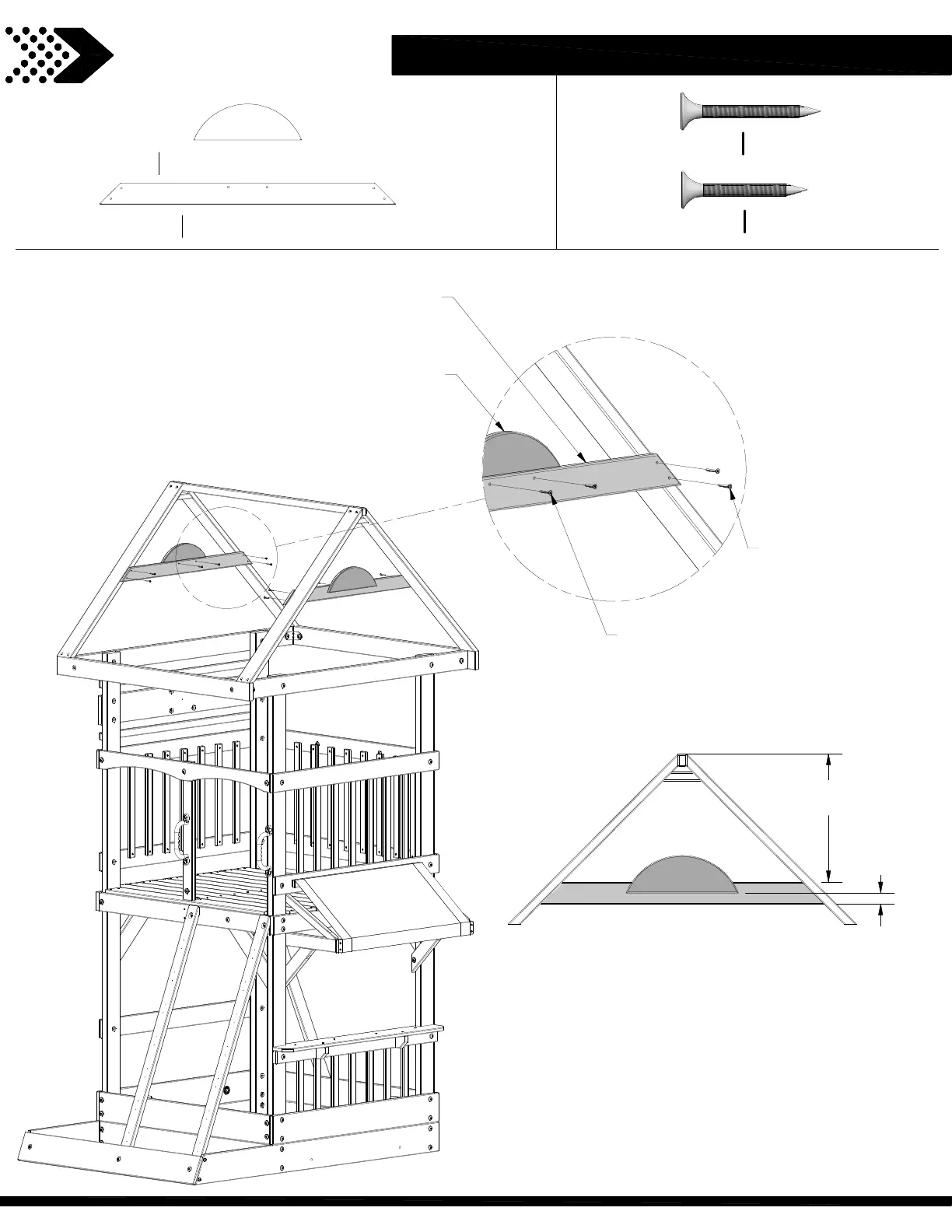

FORT ASSEMBLY
STEP 27
088 (x4)
SCREW - 1 1/8"
Y3 (x2)
SUNBURST HALF MOON
N2 (x2)
ROOF BOARD
087 (x8)
SCREW - 1-1/4"
1 1/8 in
[30 mm]
13 3/4 in
[348 mm]
