Backyard Discovery 2206038 - Gazebo Setup and Preparation; Basic Dimensions and Setup Notes

• Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
Using incorrect hardware may result in improper assembly
• Remember to double check for underground utilities and overhead electrical lines
Post mounts are provided with your structure which allows you to permanently install your structure to a
pre-existing or new wood or concrete surface. See Anchor Instructions for further details and recommendations.
• The hardware to attach the post mounts to the structure is included.
• The hardware to mount the structure permanently to a concrete surface is included.
• The hardware to mount the structure permanently to a wood deck is NOT included and will need to be purchased
separately. You must ensure there is ample structural support under the deck before permanently attaching.

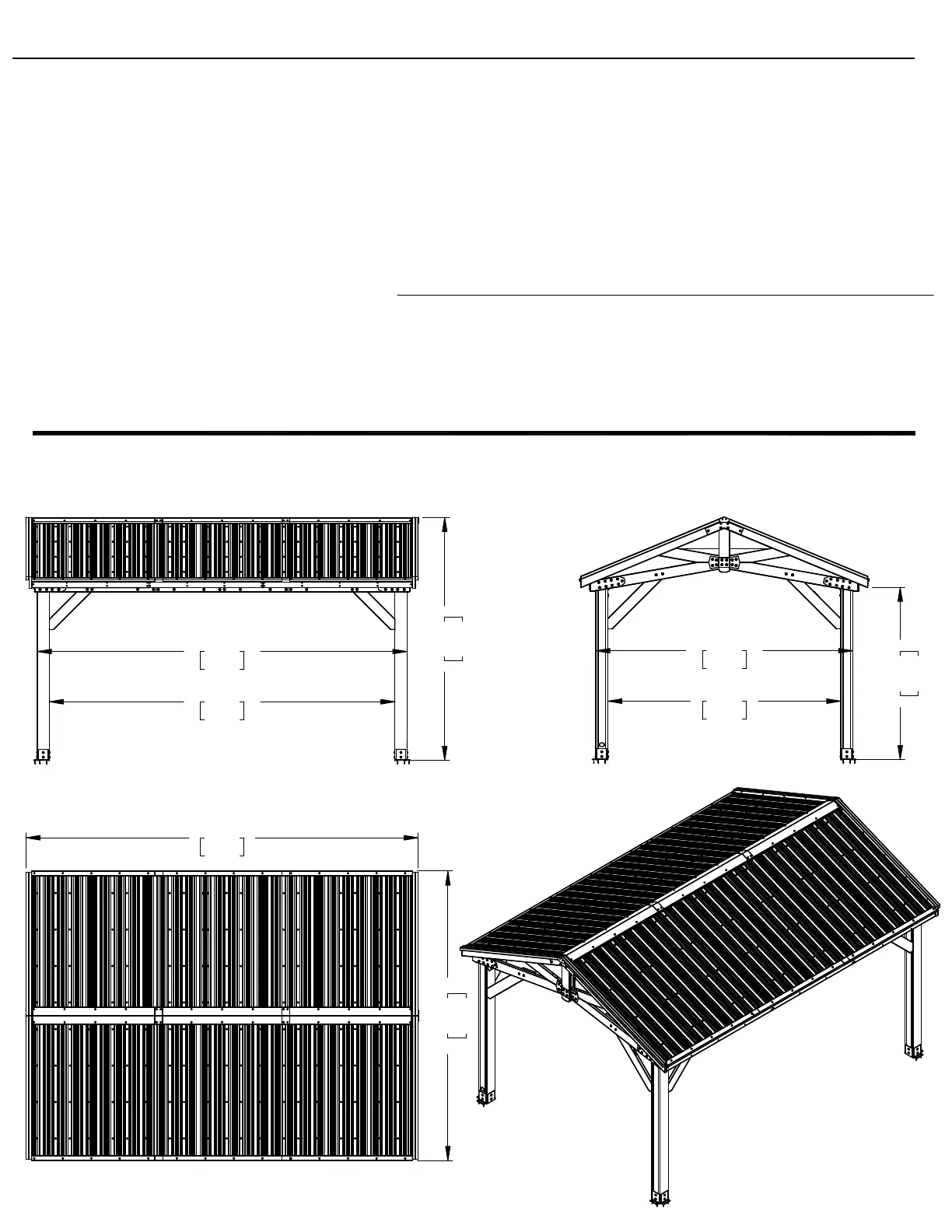

OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES
It is critically important that you start with square and level footings, concrete pad or deck to
attach your structure
16'-5"
5.0m
3.7m
12'-1 1/2"
10'-9 1/4"
3.3m
9'-9 1/4"
3.0m
2.2m
7'-2 3/4"
15'-5 3/4"
4.7m
14'-5 3/4"
4.4m
10'-2"
3.1m
2
