Place the set on level ground, not less than 6 ft 7 in [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
• While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and
improper assembly may result. Extra care must be taken to insure the fort is square.
• The safe play area refers to a zone extending 6 ft (2m) beyond the play product on all sides, including the space above the play product.
Owner's Manual

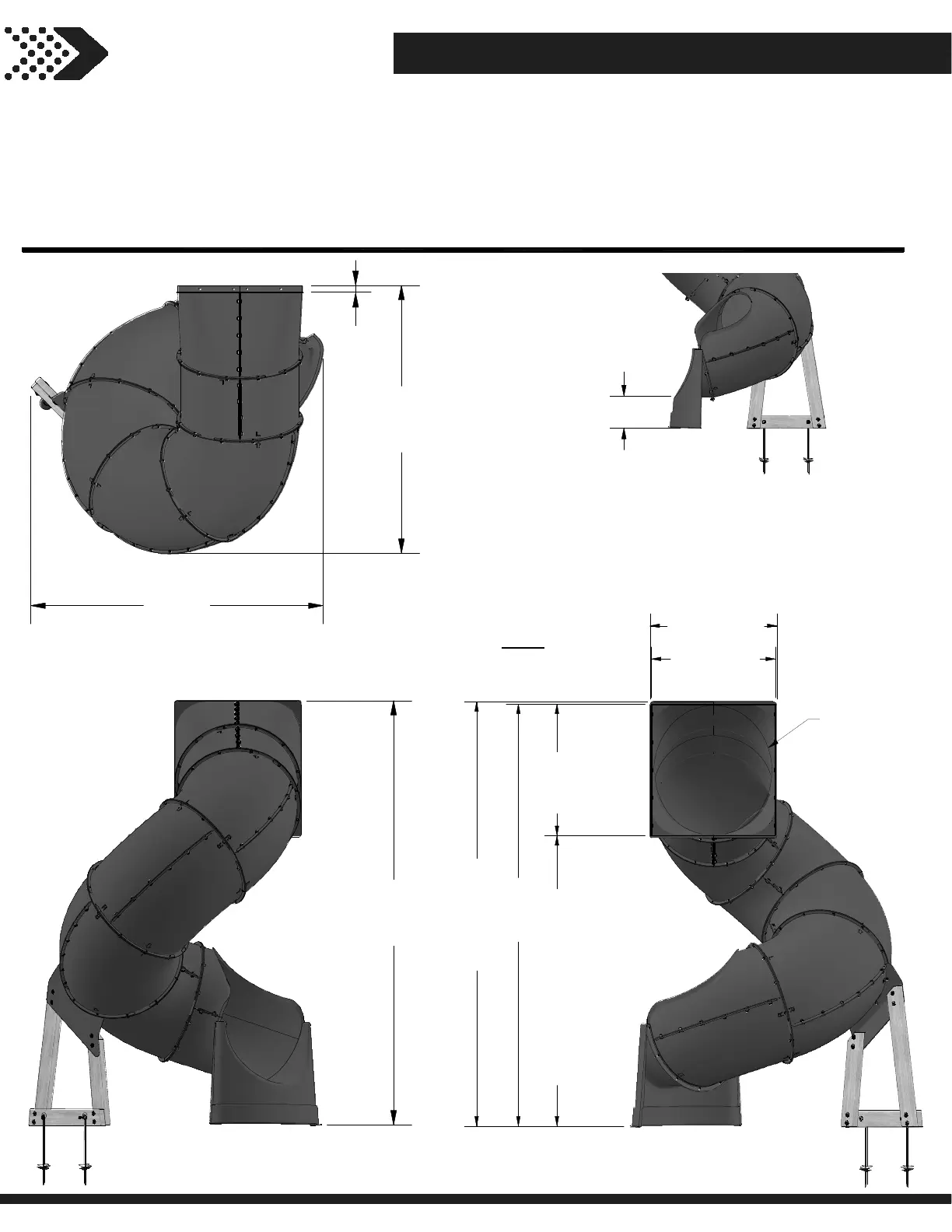

Basic Setup Dimensions & Assembly Notes
5'-1"
[1.5 m]
4'-7"
[1.4 m]
7'-3"
[2.2 m]
4'-11 1/2"
[1.5 m]
APPROXIMATELY
2'-3"
[.7 m]
O.S.
7'-2 1/2"
[2.2 m]
7'-3"
[2.2 m]
OVERALL
2'-1 1/2"
[.6 m]
O.S.
2'-2"
[.7 m]
OVERALL
n
2'
[
n
.6 m]
8 1/2"
[.2 m]
REF.
Spiral Tube Slide Exit Height
NOTE:
This spiral tube slide is
designed to ONLY fit a deck
height of 5 feet with an opening
size of 25 1/2" x 27".
1 3/8"
[35 mm]
