Backyard Discovery 9198074 - Step 4: Elbow Tube & RH Bracket Assembly

Phase 2
STEP 4
TUBE SLIDE BRACKET
(x6)
A4M00996
BOLT PTH WZ
1/4x3/4
(x9)
H100769
NUT LOCK WZ
1/4
(x12)
H100148

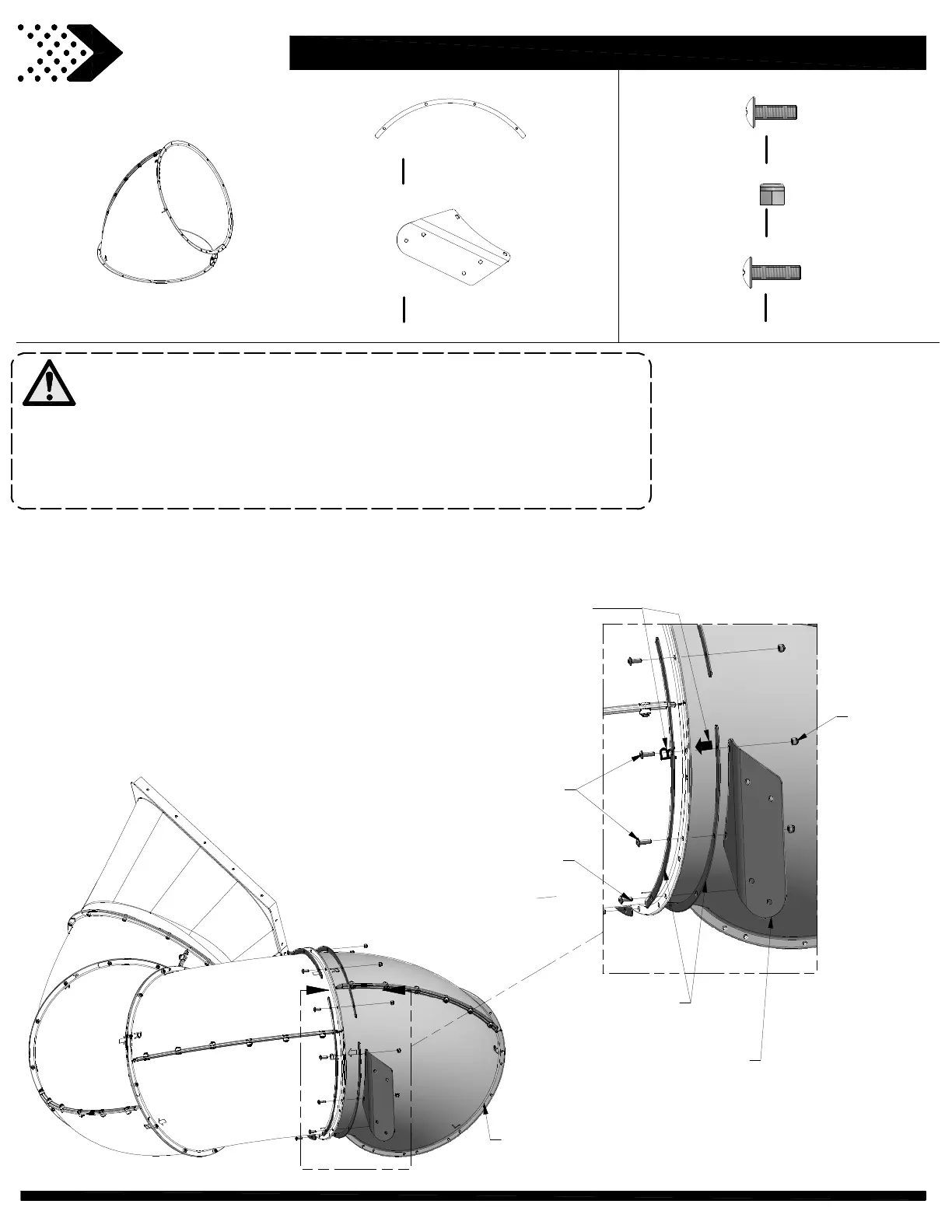

(1)-ELBOW TUBE SUB-ASSEMBLY
BOLT PTH WZ
1/4x7/8
(x3)
H100795
996 (x6)
TUBE SLIDE BRACKET
NOTE THE "R" AND "ARROW"
MARKINGS TO AID IN
POSITIONING THE METAL
BRACKETS.
ELBOW TUBE SUB-ASSEMBLY
769 (x10)
BOLT - 3/4"
795 (x2)
BOLT - 7/8"
148 (x12)
NUT - 1/4"
• ALIGN THE 'R' AND THE 'ARROW' TO ACHIEVE THE
PROPER POSITION WHEN ASSEMBLING THE SLIDE.
• NOTE THIS SECTION ASSEMBLY USES CONFIGURATION
'B' SHOWN IN THE REFERENCE PAGE.
• NOTE THE (3) BOLTS USED TO ASSEMBLE THE SLIDE
BRACKET ARE 7/8", NOT 3/4".
NOTE:
001 (x1)
TUBE SLIDE BRACKET - RH
TUBE SLIDE BRACKET - RH
(x1)
A4M01087
