Backyard Discovery Bay Pointe - Fort Assembly - Swing Beam Integration; Step 18: Attaching Swing Beam Assembly

FORT ASSEMBLY
STEP 18

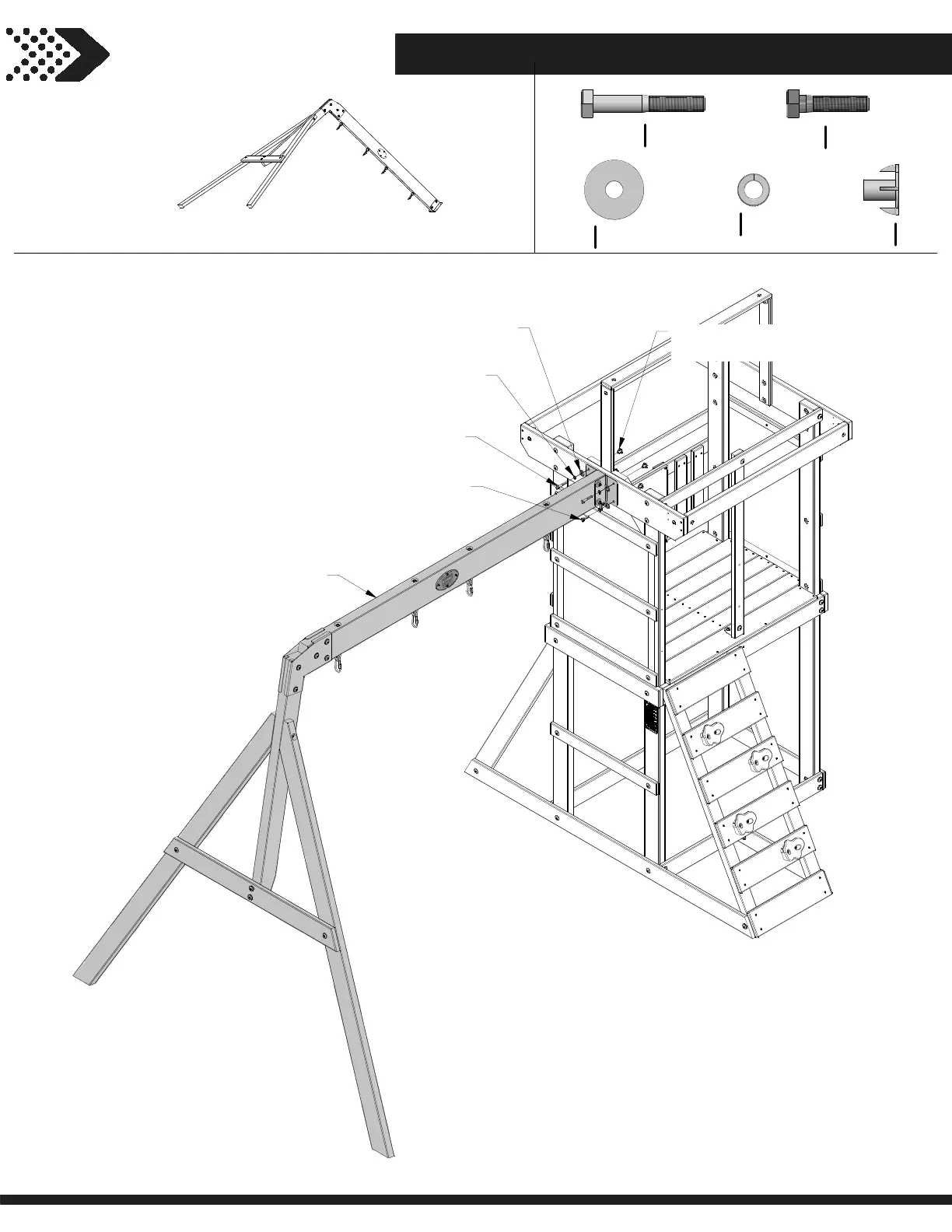

(1) SWING BEAM ASSEMBLY
WASHER SPLIT
5/16
(4)
H100095
WASHER FLAT
8x27
(4)
H100105
T-NUT
5/16
(4)
H100074
BOLT HEX
5/16x2
(2)
H100044
BOLT HEX
5/16x1 1/4
(2)
H100042
074 (x4)
T-NUT - 5/16"
105 (x4)
WASHER - 8x27
095 (x4)
WASHER - 5/16"
044 (x2)
BOLT HEX - 2"
042 (x2)
BOLT HEX - 1 1/4"
(BOTTOM HOLES)
(1) SWING BEAM ASSEMBLY
37
