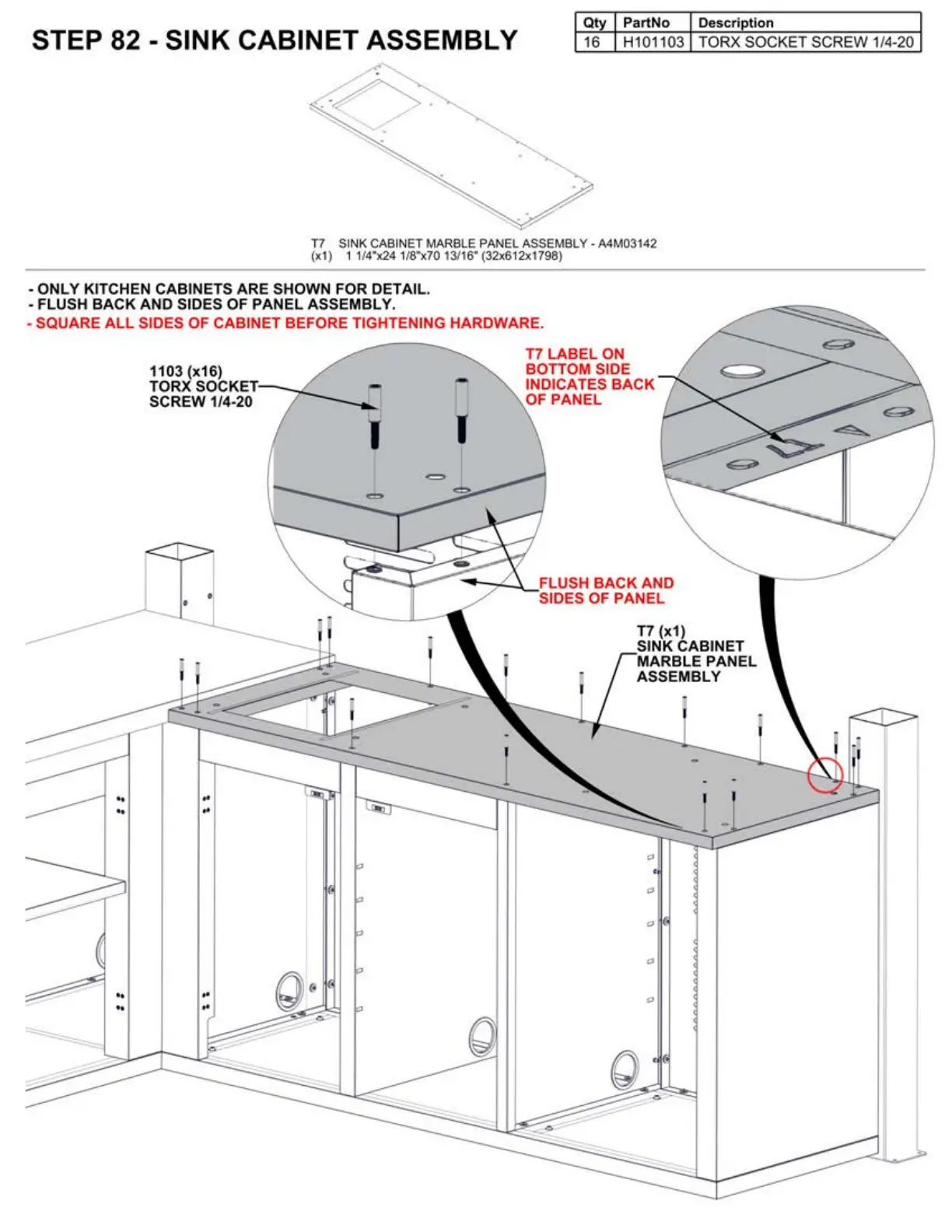

STEP 82 - SINK CABINET ASSEMBLY
Qty PartNo Description
16 H101103 TORX SOCKET SCREW 1/4-20
T7 SINK CABINET MARBLE PANEL ASSEMBLY - A4M03142
(x1) 1 1/4"x24 1/8"x70 13/16" (32x612x1798)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- FLUSH BACK AND SIDES OF PANEL ASSEMBLY.
- SQUARE ALL SIDES OF CABINET BEFORE TIGHTENING HARDWARE.
..
..
1103 (x16)
TORX SOCKET
SCREW 1/4-20
..
. .
T7 LABEL ON
BOTTOM SIDE
INDICATES BACK
OF PANEL
~-r-4.._
FLUSH
BACK
AND
SIDES OF PANEL
T7 (x1)
SINK CABINET
MARBLE PANEL
ASSEMBLY
To Next Page
