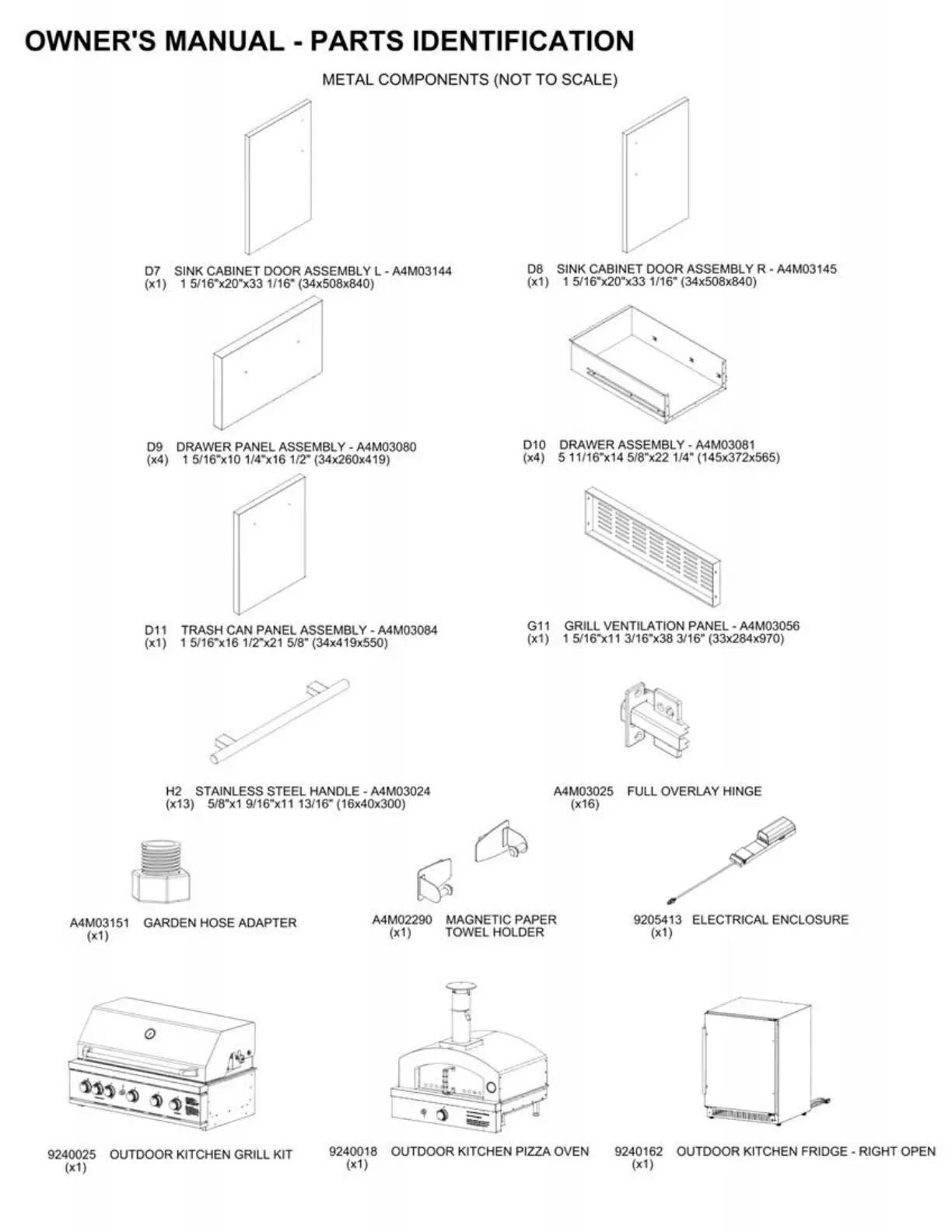

OWNER'S MANUAL - PARTS IDENTIFICATION
METAL COMPONENTS (NOT TO SCALE)
D? SINK CABINET DOOR ASSEMBLY L - A4M03144
(x1) 1 5/16"x20"x33 1/16" (34x508x840)
D9 DRAWER PANEL ASSEMBLY
- A4M03080
(x4)
15/16"x101/4"x161
/2" (34x260x419)
D11
TRASH CAN PANEL ASSEMBLY - A4M03084
(x1) 1 5/16"x16 1/2"x21 5/8" (34x419x550)
H2 STAINLESS STEEL HANDLE -A4M03024
(x13) 5/8"x1 9/16"x11 13/16" (16x40x300)
D8
SINK CABINET DOOR ASSEMBLY R - A4M03145
(x1) 1 5/16"x20"x33 1/16" (34x508x840)
D10 DRAWER ASSEMBLY - A4M03081
(x4) 5
11
/16"x14 5/8"x22 1/4" (145x372x565)
G11
GRILL VENTILATION PANEL - A4M03056
(x1) 1 5/16"x11 3/16"x38 3/16" (33x284x970)
A4M03025 FULL OVERLAY HINGE
(x16)
A4M03151 GARDEN HOSE ADAPTER
(x1)
A4M02290 MAGNETIC PAPER 9205413 ELECTRICAL ENCLOSURE
(x1)
9240025 OUTDOOR KITCHEN GRILL KIT
(x1)
(x1) TOWEL HOLDER
9240018 OUTDOOR KITCHEN PIZZA OVEN
(x1
)
•
lli!rtil
:mn.1111
.
11111
:n
9240162 OUTDOOR KITCHEN
FRIDGE-
RIGHT OPEN
(x1
)
