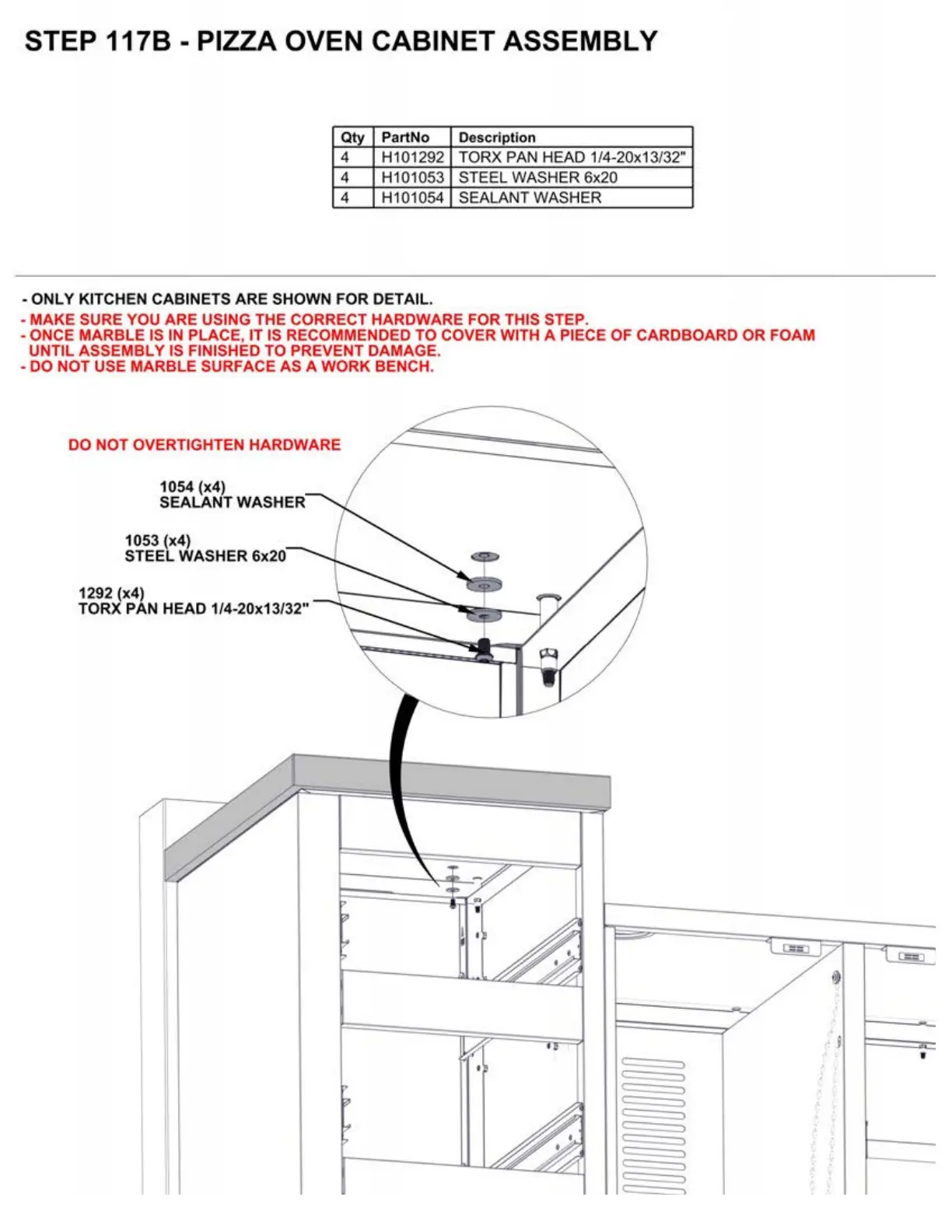

STEP
1178
- PIZZA OVEN CABINET ASSEMBLY
Qty
PartNo
Description
4 H101292 TORX
PAN
HEAD 1/4-20x13/32"
4 H101053 STEEL WASHER 6x20
4 H101054 SEALANT WASHER
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- MAKE SURE YOU ARE USING THE CORRECT HARDWARE FOR THIS STEP.
- ONCE MARBLE
IS
IN
PLACE,
IT
IS
RECOMMENDED TO COVER WITH A PIECE OF CARDBOARD OR FOAM
UNTIL ASSEMBLY IS FINISHED TO PREVENT DAMAGE.
- DO NOT USE MARBLE SURFACE
AS A WORK BENCH.
DO NOT OVERTIGHTEN HARDWARE
1054 (x4)
SEALANT WASHER
1053 (x4)
STEEL WASHER 6x20
1292 (x4)
TORX PAN HEAD 1/4-20x13/32"
C:
=:,
C
:)
C:
::=)
C
::=)
C
C
•
To Next Page
