Backyard Discovery FUSION FIRE - Page 163

163

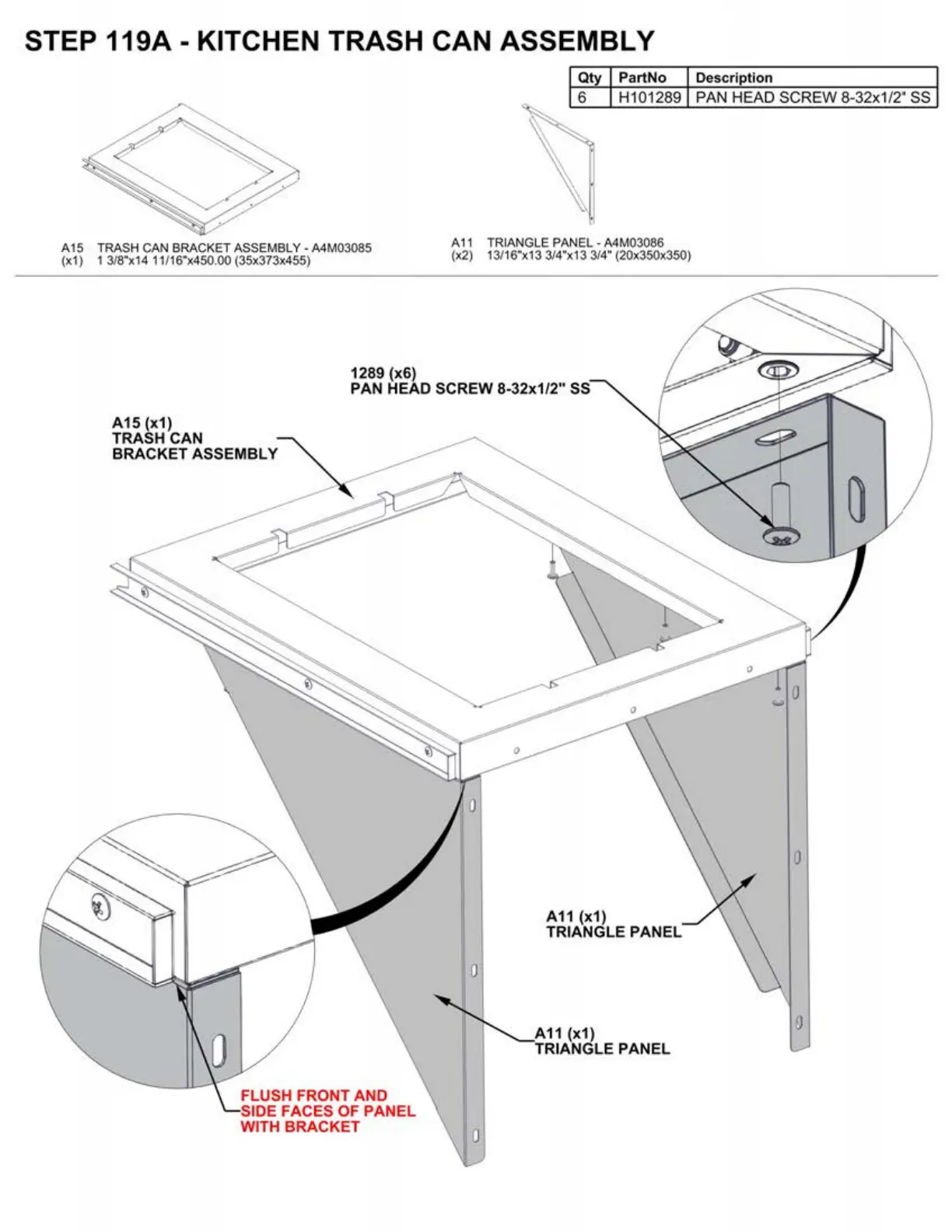

STEP 119A- KITCHEN TRASH CAN ASSEMBLY
Qty PartNo Description
6 H101 289 PAN HEAD SCREW 8-32x1/2" SS
A 15 TRASH CAN BRACKET ASSEM BL Y - A4M03085
(x1) 1 3/8"x14
11 /16"x450.00 (35x373x455)
1289 (x6)
A 11 TRIANGLE PANEL - A4M03086
(x2) 13/16"x13 3/4"x13 3/
4" (20x350x350)
PAN HEAD SCREW 8-32x1/2" SS
A15 (x1)
TRASH CAN
BRACKET ASSEMBLY
FLUSH FRONT AND
SIDE FACES
OF PANEL
WITH BRACKET
A11 (x1)
TRIANGLE PANEL
A11 (x1)
TRIANGLE PANEL
