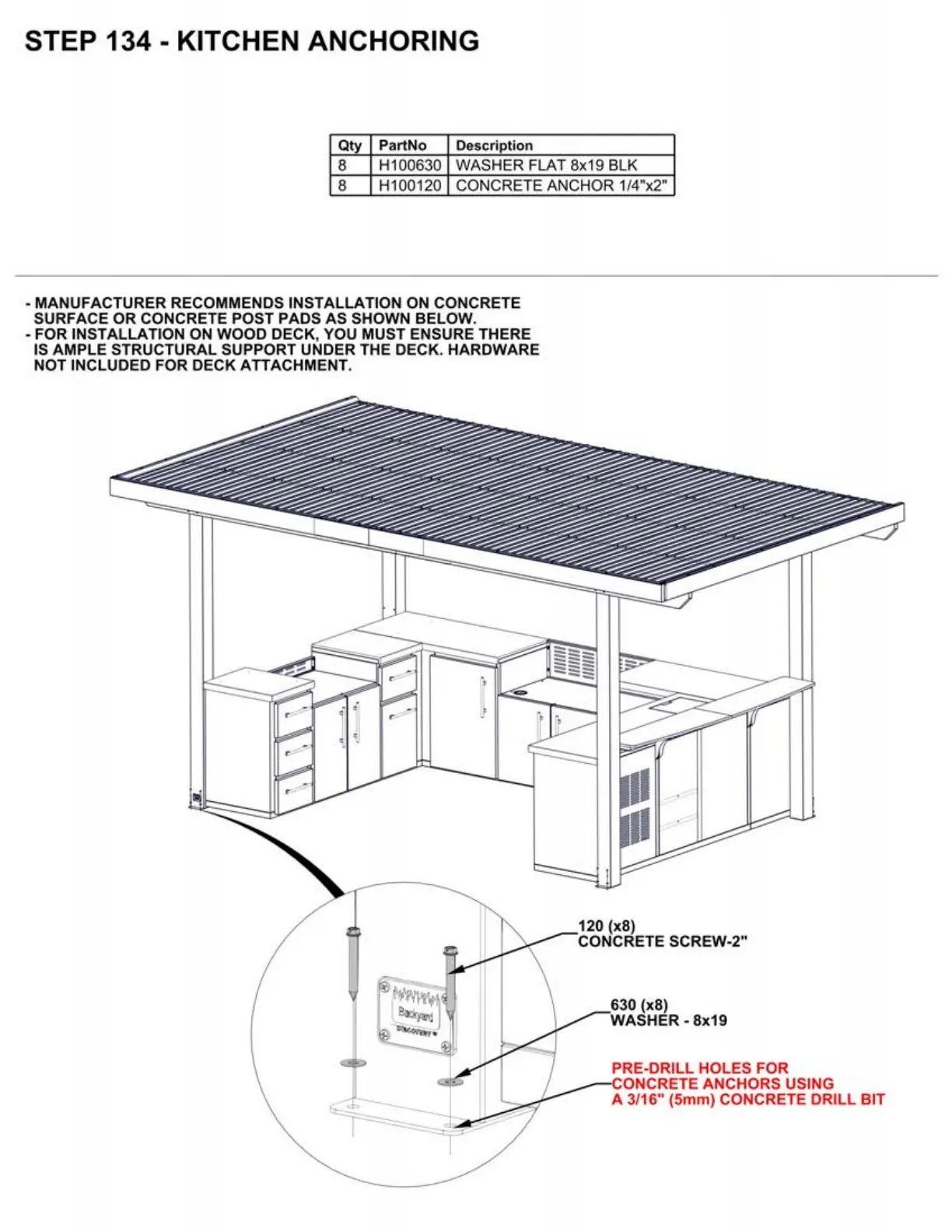

STEP 134 - KITCHEN ANCHORING
Qty PartNo Description
8
H100630 WASHER FLAT 8x19 BLK
8
H100120 CONCRETE ANCHOR 1/4"x2"
- MANUFACTURER RECOMMENDS INSTALLATION
ON
CONCRETE
SURFACE OR CONCRETE POST PADS AS SHOWN BELOW.
- FOR INSTALLATION ON WOOD DECK, YOU MUST ENSURE THERE
IS AMPLE STRUCTURAL SUPPORT UNDER THE DECK. HARDWARE
NOT INCLUDED FOR DECK ATTACHMENT.
120 (x8)
CONCRETE SCREW-2"
630 (x8)
WASHER - 8x19
PRE-DRILL HOLES FOR
CONCRETE ANCHORS USING
A 3/16" (5mm) CONCRETE DRILL BIT
To Next Page
