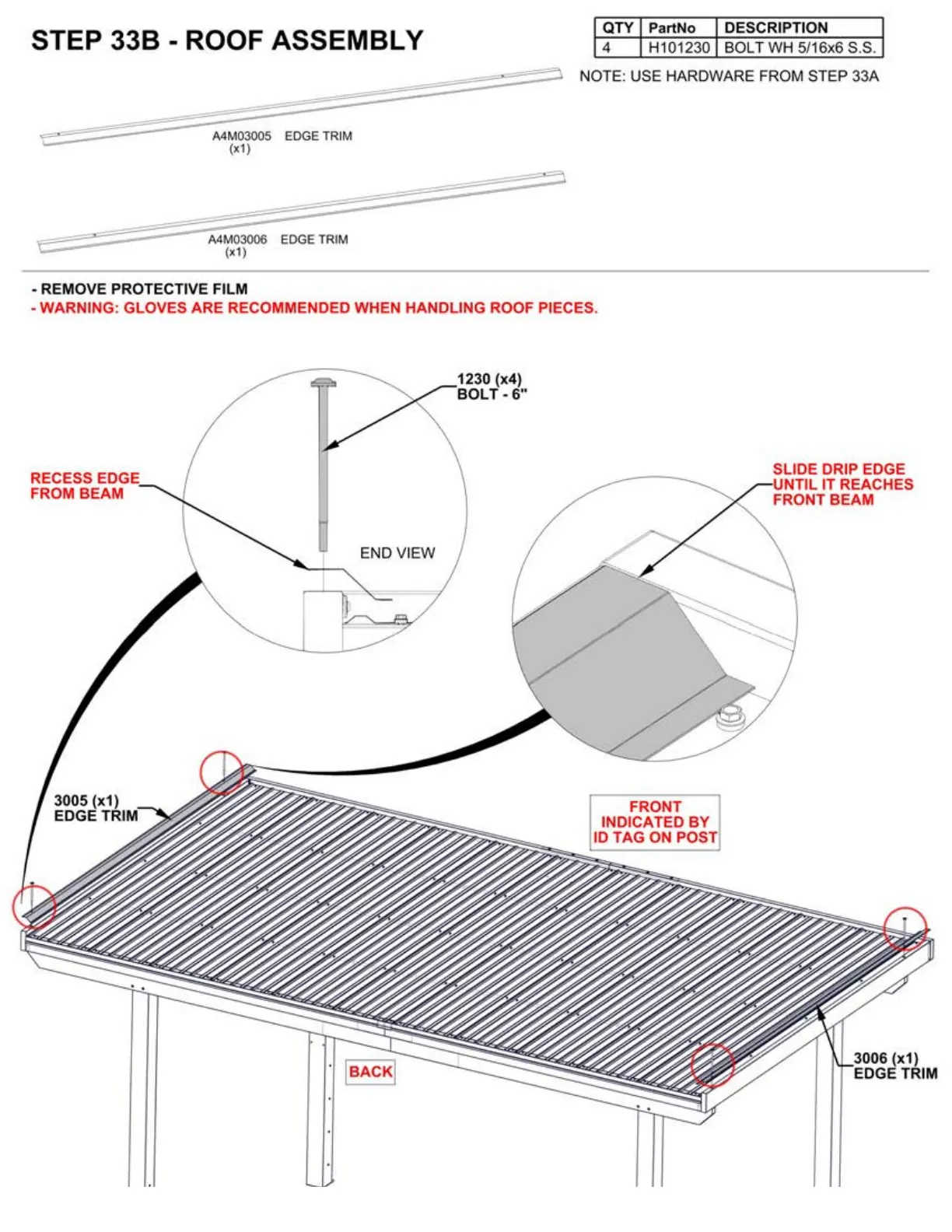

STEP 338 - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
4 H101230
BOLTWH5 /16x 6S.S .
NOTE: USE HARDWARE FROM STEP 33A
(x1)
- REMOVE PROTECTIVE FILM
- WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING ROOF PIECES.
RECESS EDGE
FROM BEAM
END VIEW
1230 (x4)
BOLT- 6"
FRONT
INDICATED
BY
ID TAG ON POST
SLIDE DRIP EDGE
UNTIL IT REACHES
FRONT BEAM
