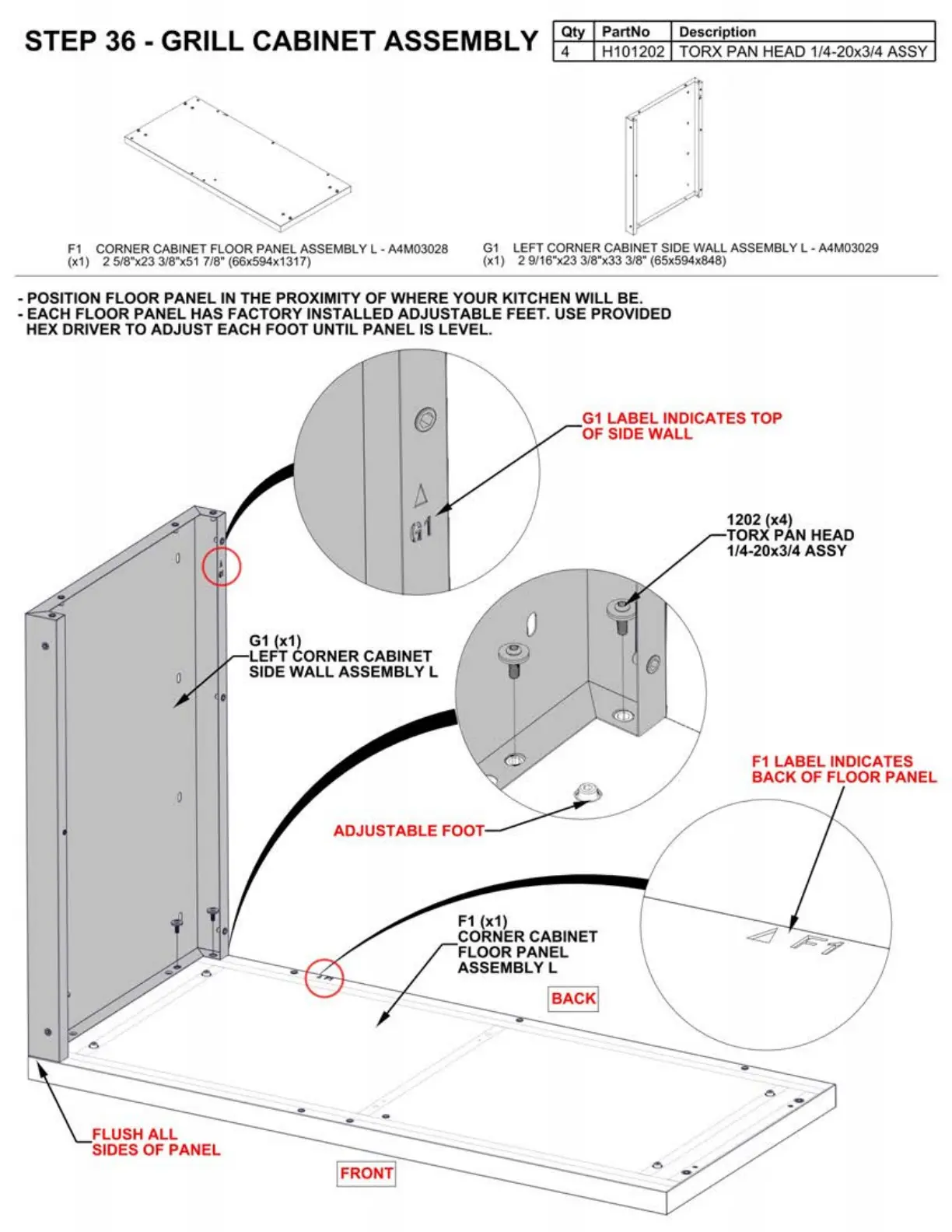

STEP 36 - GRILL CABINET ASSEMBLY
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
F1
CORNER CABINET FLOOR PANEL ASSEMBLY L - A4M03028
(x1) 2 5/8"x23 3/8"x51 7/8" (66x594x1317)
G1
LEFT CORNER CABINET SIDE WALL ASSEMBLY L - A4M03029
(x1) 2 9/16"x23 3/8"x33 3/8" (65x594x8
48
)
- POSITION FLOOR PANEL
IN
THE PROXIMITY OF WHERE YOUR KITCHEN WILL BE.
- EACH FLOOR PANEL HAS FACTORY INSTALLED ADJUSTABLE FEET. USE PROVIDED
HEX DRIVER TO ADJUST EACH FOOT UNTIL PANEL
IS
LEVEL.
•
FLUSH
ALL
SIDES OF PANEL
G1
(x1)
LEFT CORNER CABINET
SIDE
WALL
ASSEMBLY L
G1
LABEL
INDICATES TOP
OF SIDE
WALL
F1
(x1)
CORNER CABINET
FLOOR PANEL
ASSEMBLY L
I
BACK
I
1202 (x4)
TORX PAN HEAD
1/4-20x3/4 ASSY
F1
LABEL
INDICATES
BACK
OF FLOOR PANEL
To Next Page
