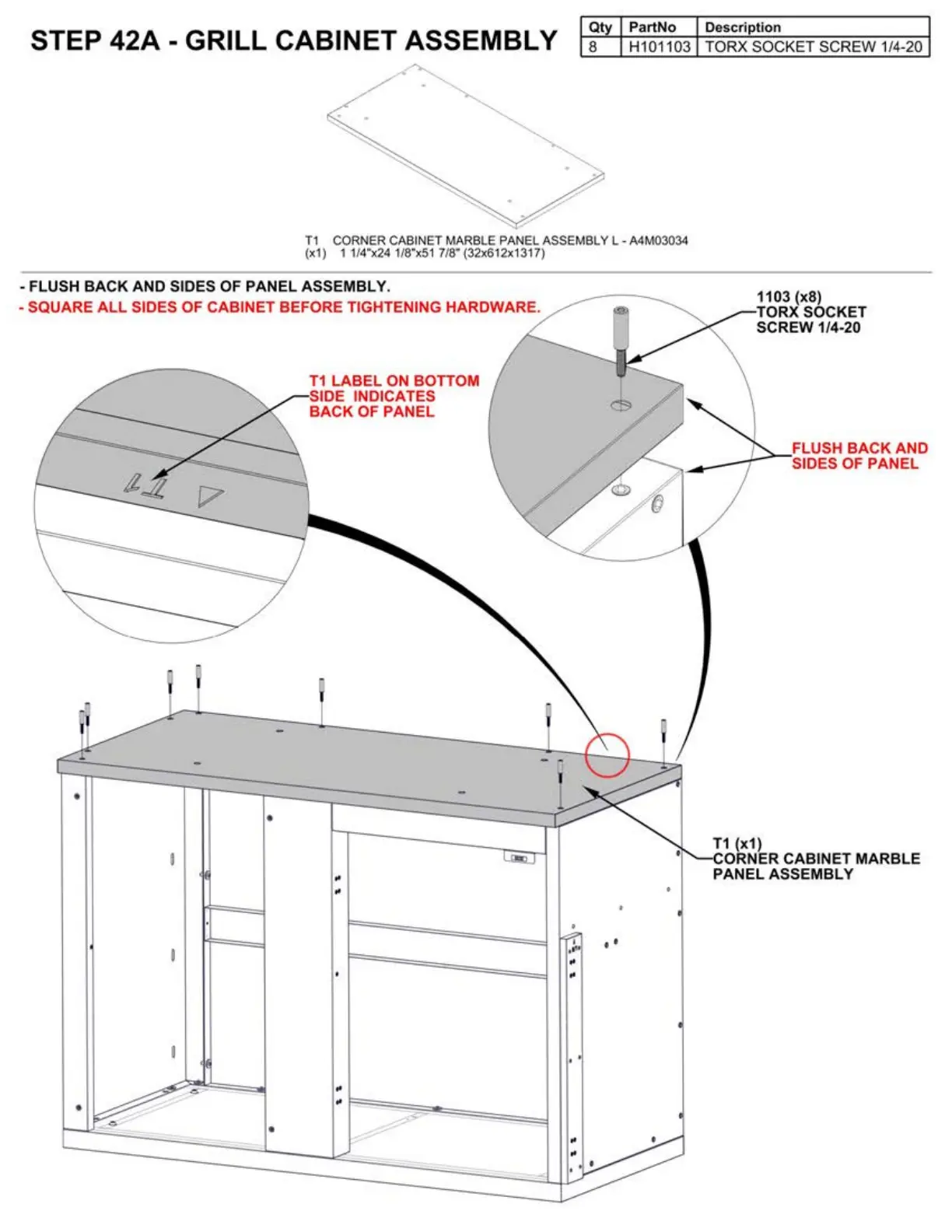

STEP 42A - GRILL CABINET ASSEMBLY
Qty PartNo Description
8 H101103 TO RX SOCKET SC RE W 1/4- 20
T1 CORNER CABINET MARBLE PANEL ASSEMBLY L - A4M03034
(x1) 1 1/4"x24 1/8"x51 7/8" (32x612x1317)
- FLUSH BACK AND SIDES OF PANEL ASSEMBLY.
- SQUARE ALL SIDES OF CABINET BEFORE TIGHTENING HARDWARE.
•
•
•
•
T1 LABEL ON BOTTOM
SIDE INDICATES
BACK OF PANEL
..
..
.~. . .
..
..
' '
1103 (x8)
TORXSOCKET
SCREW 1/4-20
T1 (x1)
FLUSH BACK AND
SIDES OF PANEL
CORNER CABINET MARBLE
PANEL ASSEMBLY
