Backyard Discovery Shenandoah 65413 - Page 18

Parts Identification

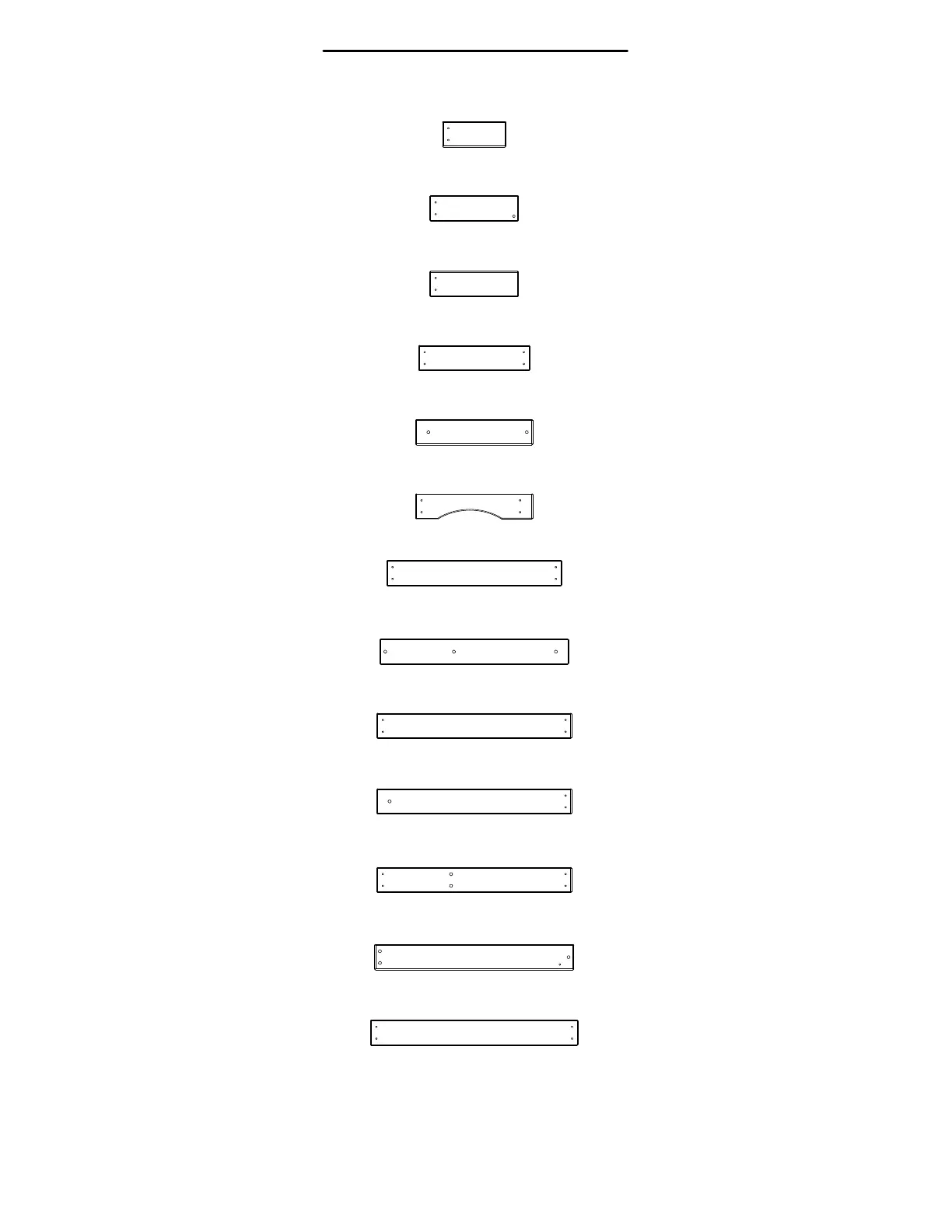

Wood Components
(NOT TO SCALE)
M5 - UPPER WALL BOARD - W104132
5/8"x3 3/8"x8 1/2" (16x86x216)

M6 - UPPER WALL BOARD - W104128
5/8"x3 3/8"x11 7/8" (16x86x302)

M7 - UPPER WALL BOARD - W104129
5/8"x3 3/8"x11 7/8" (16x86x302)

M8 - WALL SLAT - W104134
5/8"x3 3/8"x14 7/8" (16x86x378)

M9 - SHORT ROOF SUPPORT - W104143
5/8"x3 3/8"x15 5/8" (16x86x398)

M10 - ARCH ROOF SUPPORT - W104144
5/8"x3 3/8"x15 5/8" (16x86x398)

M11 - WALL BOARD - W104169
5/8"x3 3/8"x23 1/2" (16x86x596)

M12 - WALL RAIL - W104136
5/8"x3 3/8"x25 1/4" (16x86x642)

M13 - WALL BOARD - W104137
5/8"x3 3/8"x26 1/8" (16x86x662)

M14 - WALL BOARD - W104138
5/8"x3 3/8"x26 1/8" (16x86x662)

M15 - WALL BOARD - W104160
5/8"x3 3/8"x26 1/8" (16x86x662)

M16 - LEMONADE ROOF SUPPORT - W104123
5/8"x3 3/8"x26 3/4" (16x86x678)

M17 - WALL BOARD - W104174
5/8"x3 3/8"x27 3/4" (16x86x706)

