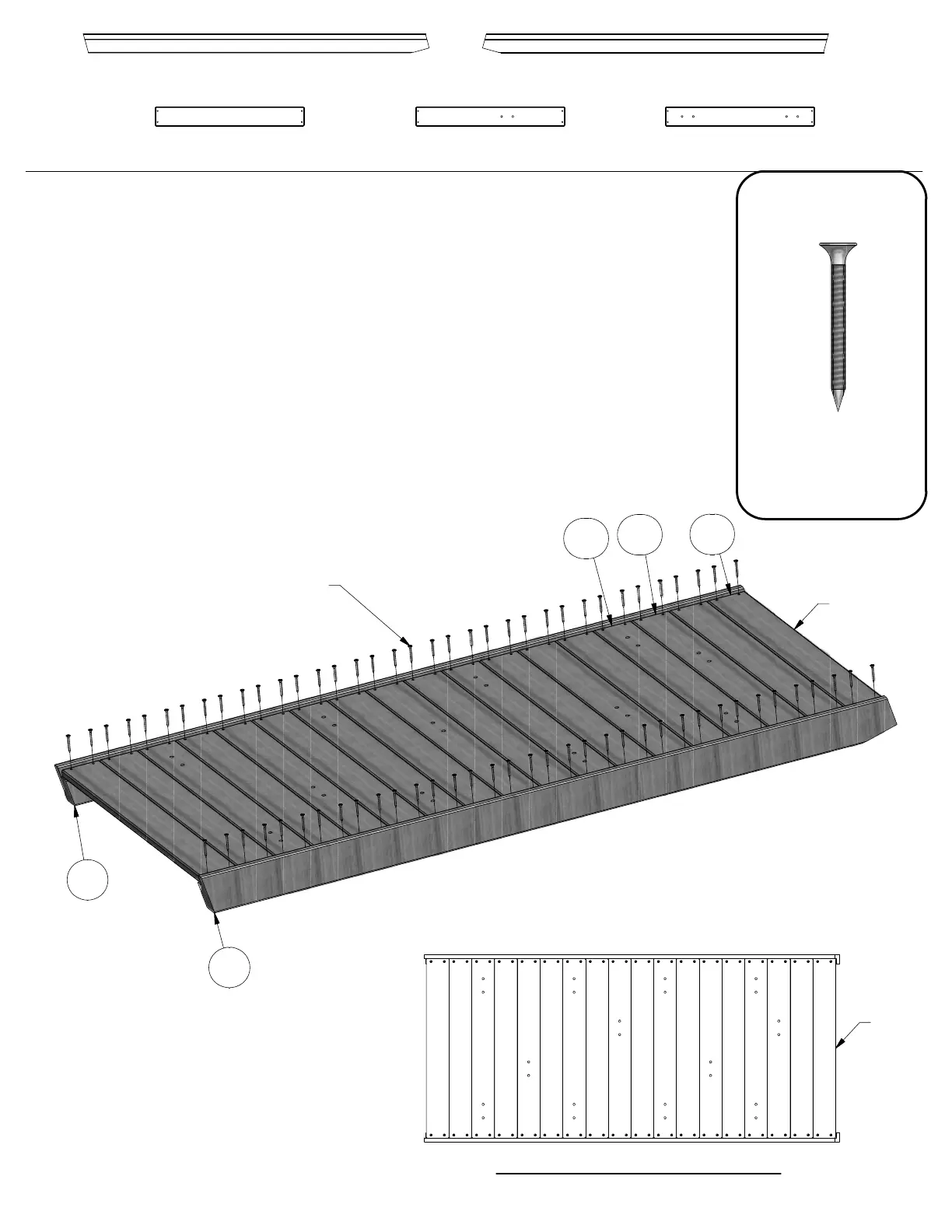

STEP 1
PLACE E72 & E73 RAILS ON THEIR SIDES SO THAT THE GROOVES FACE EACH OTHER.
NOTE ORIENTATION OF M74, M75, & M76 BOARDS IN DIAGRAM, PLACING THEM AS
SHOWN ON E72 & E73 RAILS.
USING BOARDS AS A TEMPLATE, PRE-DRILL EDGES OF RAILS USING 1/8" DRILL BIT.
FAILURE TO PRE-DRILL MAY RESULT IN BOARD SPLITTING.
ATTACH TOP M74 BOARD FIRST AND WORK DOWN USING 1 1/2" SCREWS.
(
(
0
E72 - LEFT RAIL - W100036
1 3/8"x3 3/8"x61 3/4" (36x86x1570)

0
0
M74 - ROCK WALL BOARD - W100987
5/8"x3 3/8"x26 5/8" (16x86x675)

M75 - ROCK WALL BOARD - W100988
5/8"x3 3/8"x26 5/8" (16x86x675)

M76 - ROCK WALL BOARD - W100989
5/8"x3 3/8"x26 5/8" (16x86x675)

E73 - RIGHT RAIL - W100037
1 3/8"x3 3/8"x61 3/4" (36x86x1570)

SCREW PFH
8x1 1/2
(72)
TOP
SCREW PFH 8x1 1/2
3/&6
TOP
BOARD PLACEMENT PATTERN
