Backyard Discovery Shenandoah 65413 - Page 42


6%
(:
(:
(;
(<
EW - GLIDER SUPPORT BYD GREEN - A100065

EX - GLIDER BUSHING BYD GREEN - A100066

EY - TUBING CAP GLIDER SUPPORT - A100067

SWING
HANGER
QUICK LINK
(4)
BOLT WH
5/16x5-3/4
(2)
LAG SCREW
WH 5/16x2-1/2
(2)
NUT LOCK
5/16
(6)
WASHER
FLAT 8x27
(6)

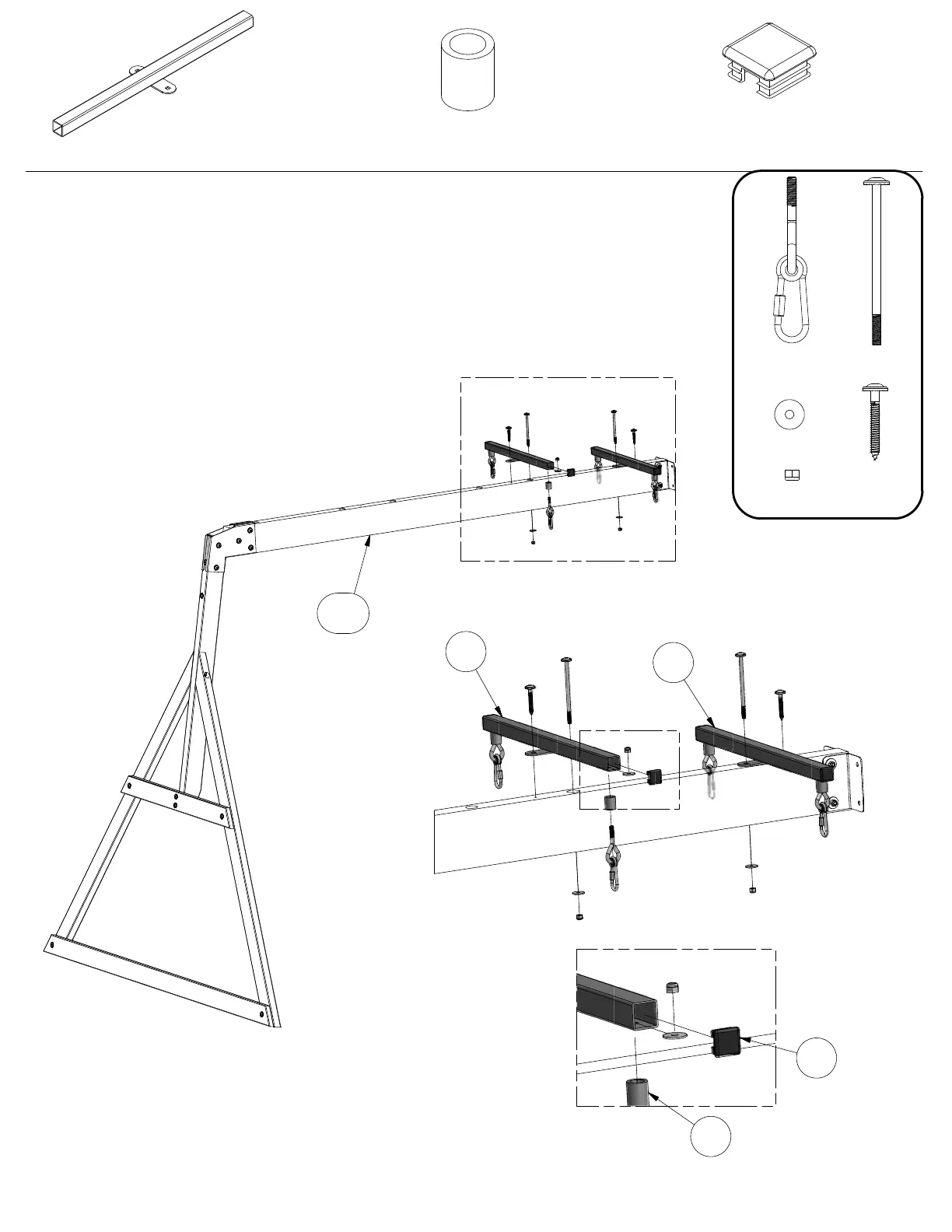

STEP 4
ATTACH (2) EW GLIDER SUPPORT BARS TO SB74 SWING BEAM USING (2) 5-3/4" BOLTS,
FLAT WASHERS AND 5/16" LOCK NUTS AND (2) 2-1/2" LAG SCREWS, AS SHOWN.
INSERT (4) SWING HANGER QUICK LINKS INTO (4) EX BUSHINGS AND THEN ATTACH
SWING HANGER QUICK LINKS TO EW GLIDER SUPPORTS USING (4) FLAT WASHERS AND
5/16" LOCK NUTS, AS SHOWN.
INSERT (4) EY GLIDER SUPPORT CAPS INTO THE ENDS OF EW GLIDER SUPPORTS, AS
SHOWN.
