Backyard Discovery TUCSON 65411B - Page 47

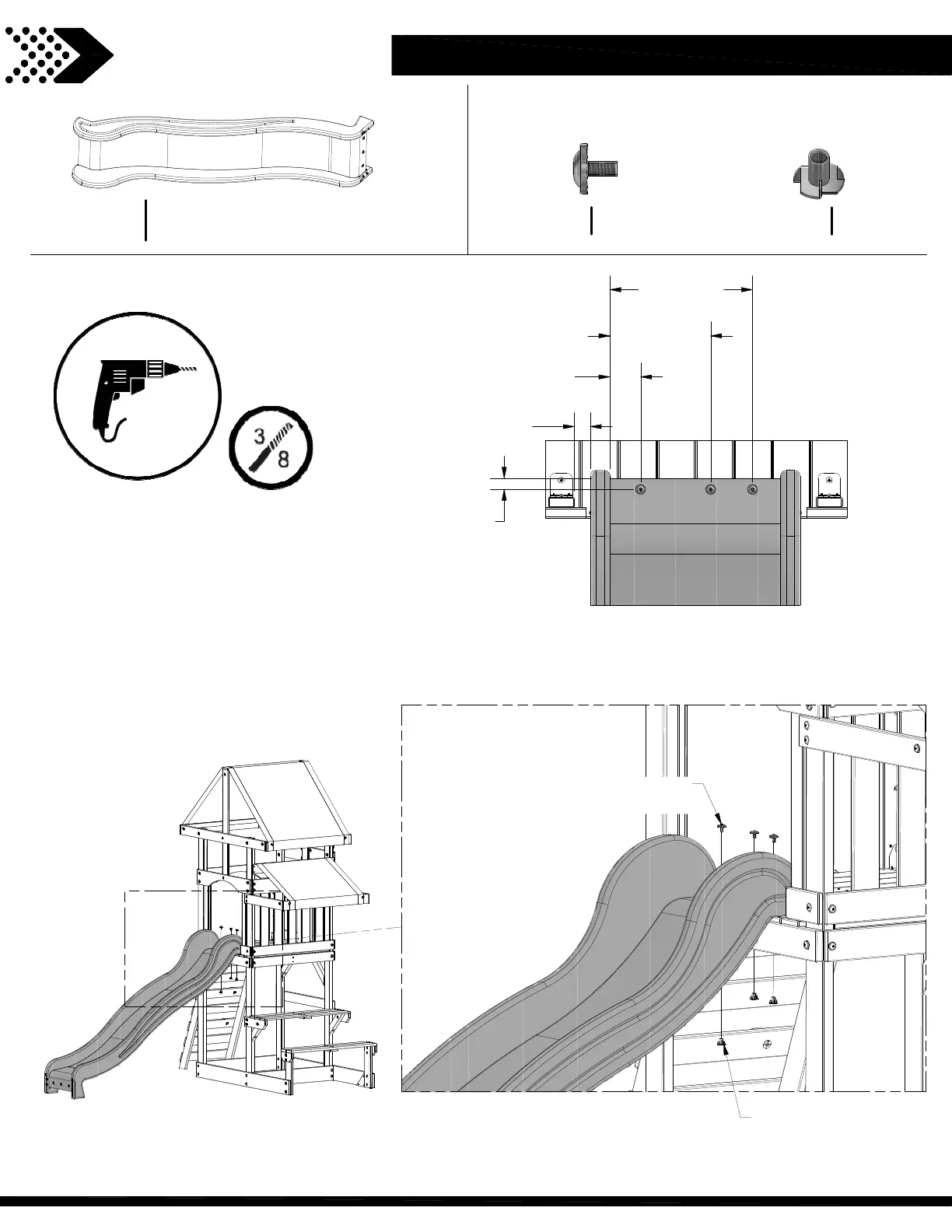

FORT ASSEMBLY
Ǣǻrƻˠ˧
12 3/4 in
[324 mm]
9 in
[229 mm]
2 3/4 in
[70 mm]
1 3/8 in
[36 mm]
9198128 8 FT - FLAT PACK SLIDE
(1)
SLIDE BED
DRILLING PATTERN
ˠˠˤ  ʹɮˢʺ
Dŷĵǻ˚ˠˀˡ˃
˟˦ˣ ʹɮˢʺ
ǻ˚ŗȕǻ˚ˤˀˠ˥˃
BOLT WH
5/16x1/2
(3)
H100115
T-NUT
5/16
(3)
H100074
1 in
[25 mm]
47
