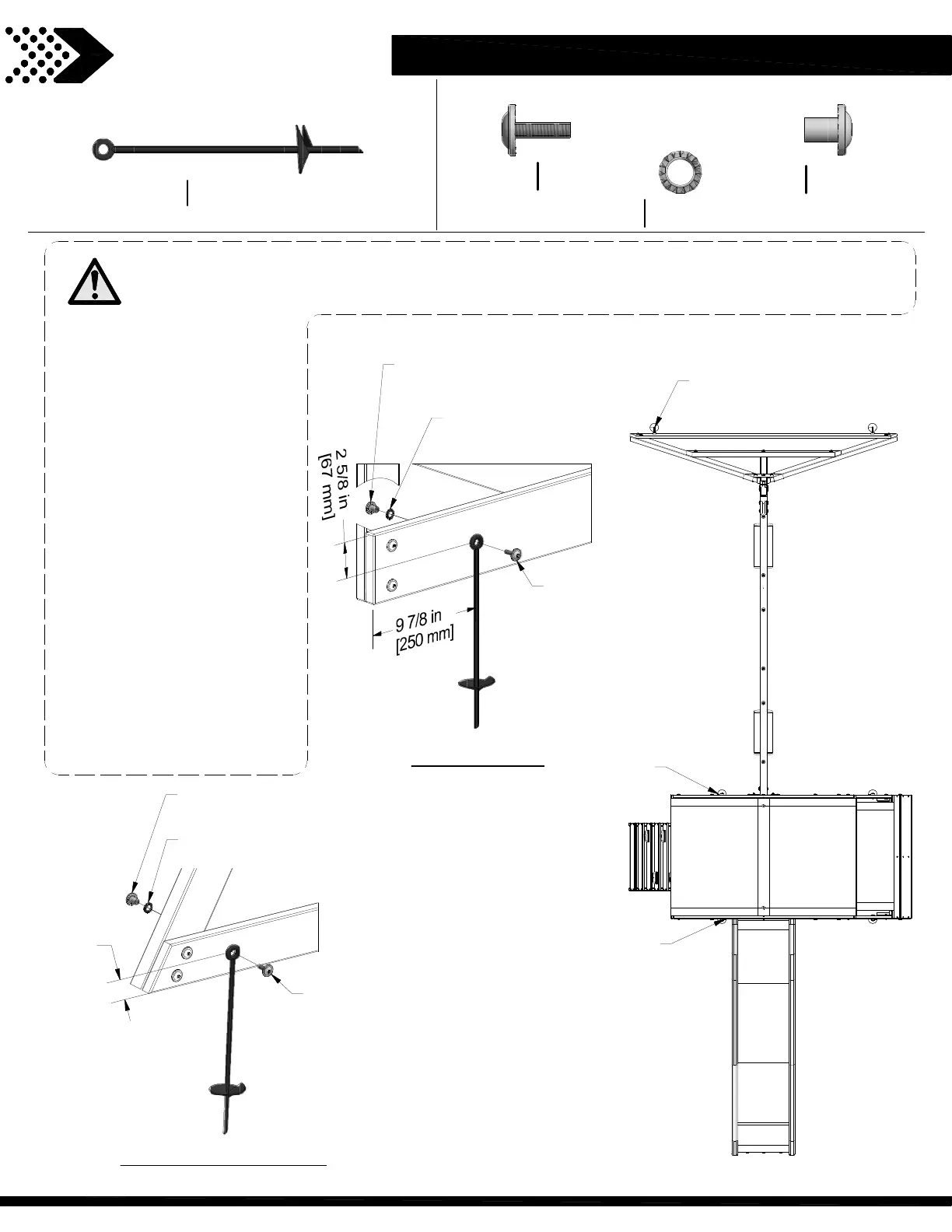

Backyard Discovery TUCSON 65411B - Final Assembly; Step 21: Ground Stake Installation

FINAL ASSEMBLY
Ǣǻrƻˡˠ
ŗŷǻrʲ
FAILURE TO USE GROUND STAKES CAN VOID WARRANTY AND CAUSE INJURY!
1. TWIST AUGER
GROUND STAKE INTO
THE GROUND NEXT TO
THE GROUND BOARD, IN
THE LOCATIONS SHOWN.
2. USE HARDWARE
PROVIDED TO SECURE
THE AUGER GROUND
STAKE TO THE GROUND
BOARD.
3. MAKE SURE ALL
BOLTS, SCREWS, AND
NUTS ARE TIGHTENED.
MAKE SURE EVERY
BOARD IS SECURED.
MAKE SURE YOUR
SWING SET IS LEVEL.
ENJOY THE USE OF
YOUR NEW SWING SET!
FORT STAKES
SWING BEAM STAKES
WASHER LOCK EXT
12x19
(6)
H100031
NUT BARREL WH
5/16 x 5/8
(6)
H100004
BOLT WH
5/16x1
(6)
H100008
˟˟ˣ ʹɮˣʺ
ŗȕǻDNJNJrĵ˚ˤˀ˧˃
˟ˢˠ ʹɮˣʺ
ɟǢËrNJ˚ˠˡɮˠ˨
˟˟˧ ʹɮˣʺ
Dŷĵǻ˚ˤˀˠ˥ɮˠ˃
1 3/4 in
[43 mm]
˟˟˧ ʹɮˡʺ
Dŷĵǻ˚ˤˀˠ˥ɮˠ˃
˟ˢˠ ʹɮˡʺ
ɟǢËrNJ˚ˠˡɮˠ˨
˟˟ˣ ʹɮˡʺ
ŗȕǻDNJNJrĵ˚ˤˀ˧˃
ˠ˦˧ ʹɮˡʺ
ȕµrNJµNJŷȕŗ^Ǣǻħr
ˠ˦˧ ʹɮˡʺ
ȕµrNJµNJŷȕŗ^Ǣǻħr
ˠ˦˧ ʹɮˡʺ
ȕµrNJµNJŷȕŗ^Ǣǻħr
AUGER GROUND STAKE
(6)
A100178
50
