Backyard Play Systems 4431 - Rock Wall Assembly; Rock Wall Plank Placement

24
ROCK WALL ASSEMBLE
5-1/4"
23-3/4"
23-3/4"
2-1/2" Wood Screws
x4
Flush
Flush
5-1/4"
Outside
Dimension
Outside
Dimension
ROCK WALL ASSEMBLE
2-1/2"
Wood Screws
x28
HOLE
23-3/4"
3/4 x 5-3/8 x 23-3/4"
x1
2974-CC
3/4 x 5-3/8 x 23-3/4"
x5
2950-CC

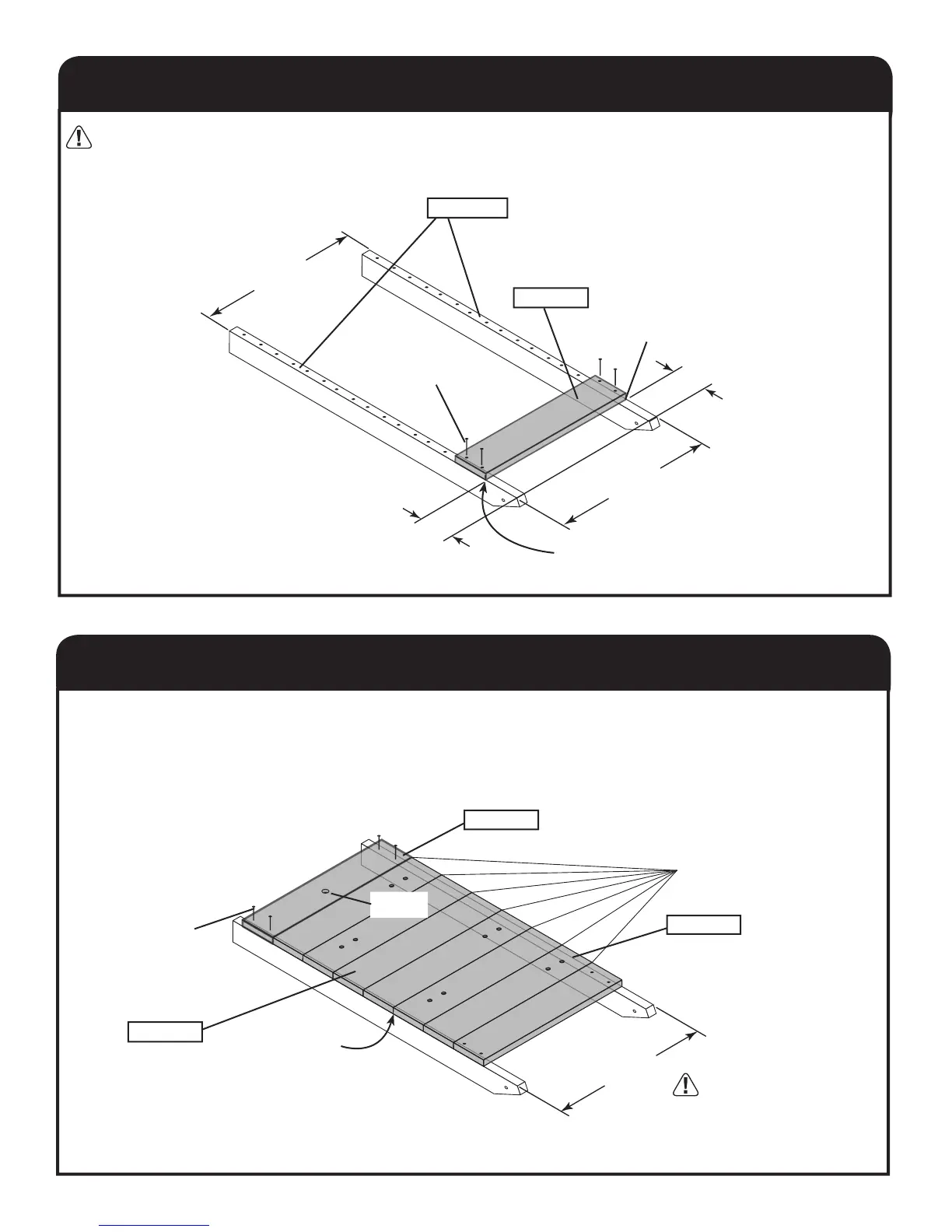

Place planks onto rails (1826-CC) as shown.
If rails are fully pre-drilled, align all planks and screws with pre-drills.
If rails are not pre-drilled, install planks  ush to each other.
Secure planks using 2-1/2" wood screws.
All Flush
Flush
Maintain Dimension
Rail (1826-CC) may have full or partiallly pre-drilled holes.
Align screws with the pre-drilled holes in rails (1826-CC).
3/4 x 5-3/8 x 23-3/4"
x1
2960-CC
1-3/8 x 3-3/8 x 51"
x2
1826-CC
3/4 x 5-3/8 x 23-3/4"
x1
2960-CC
