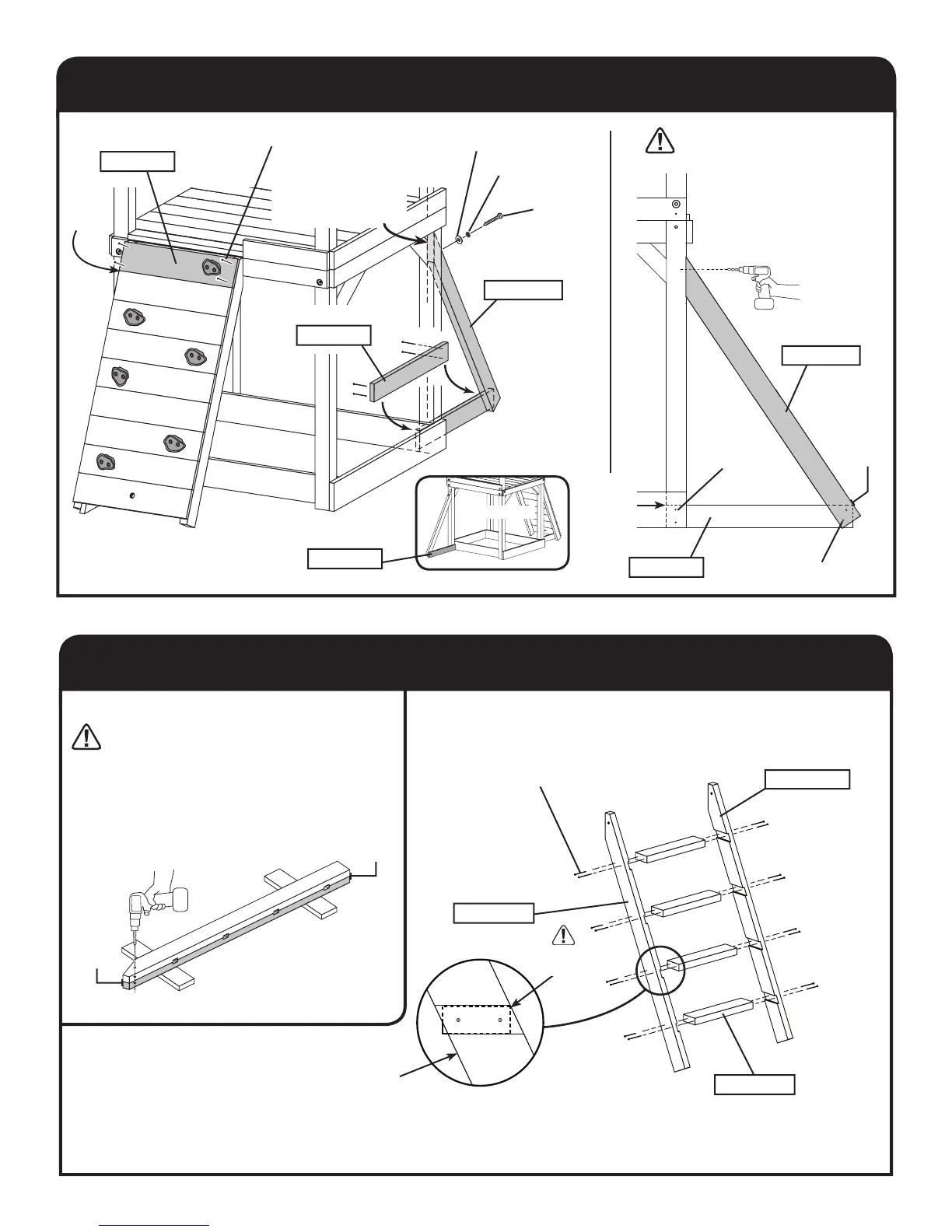

Backyard Play Systems 4431 - Angle Brace Installation; Step Ladder Assembly

28
STEP LADDER
ASSEMBLE
ANGLE BRACE
INSTALL
Pre drill 3/16" pilot hole
2" deep for 4" lag bolt.
x1
1-3/8 x 3-3/8 x 47-3/4"
2966-CC
Flush
2-1/2" Wood Screws
x4
4"
Lag Bolt
Lock Washer
Flat Washer
x1
2966-CC
1-3/8 x 3-3/8 x 47-3/4"
3/4 x 5-3/8 x 23-3/4"
x1
2950-CC
3/4 x 3-3/8 x 28-5/8"
x1
2955-CC
3/4 x 3-3/8 x 28-5/8"
x1
2955-CC
3/4 x 3-3/8 x 28-5/8"
x1
2955-CC
2-1/2" Wood
Screws
2" Wood
Screws
x2
x2
2966-CC: Flush
angle to inner
corner of 3x3 post
Flush
Flush
BACK SIDE
2-1/2" Wood Screws x16
Back side
of ladder
Before Assembling Step Ladder:
If 2521-CC has thru-hole, skip these steps.
1. Stack and align parts as shown with 2522-CC
on top.
2. Hold parts and drill 3/8" hole through 2521-CC
using 2522-CC as a guide.
3. Holes must be exactly aligned.
x4
1 x 3-1/2 x 15-3/8"
2524-CC
x1
1-3/8 x 3-3/8 x 51"
2521-CC
Flush to
front face.
1-3/8 x 3-3/8 x 51"
x1
2522-CC
Flush
Flush
