Backyard Play Systems 4431 - A-Frame Assembly

33

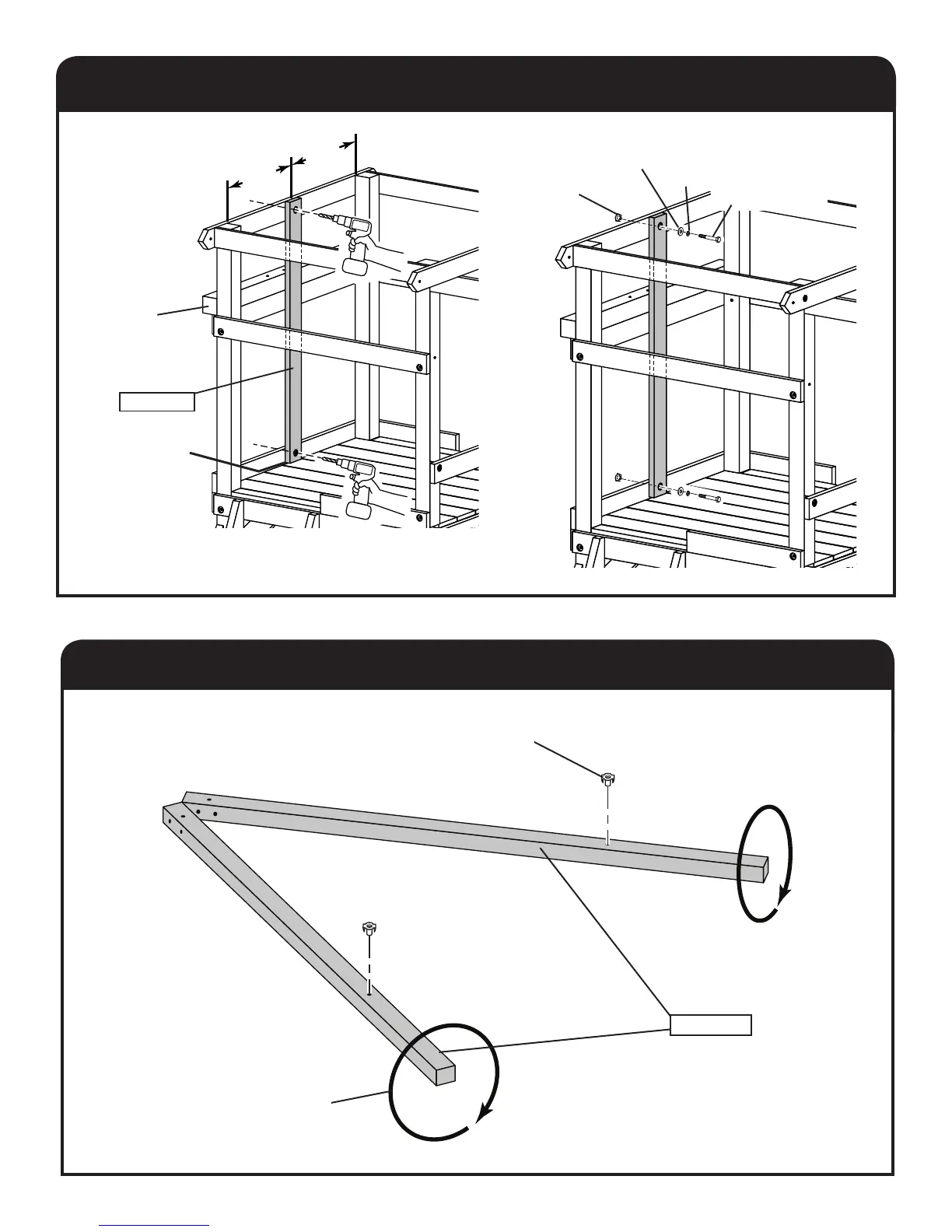

UPRIGHT INSTALL
EQUAL
EQUAL
Center 2977-CC. Mark and Pre drill 7/16" through holes for hex bolt.
x1
2977-CC
1 x 3-3/8 x 47"
SWING BEAM
SUPPORT
2505-CC
A - FRAME ASSEMBLE
T-Nut x2
30 mm Hex Bolt
Flush
x2
T-Nut
Flat Washer
Lock Washer
x2
3 x 3 x 95"
2525-CC
Rotate 2525-CC 180
o
after
installing T-Nuts.
