Backyard Play Systems 4431 - Terrace Assembly: Slide Support

46
BALUSTERS
INSTALL

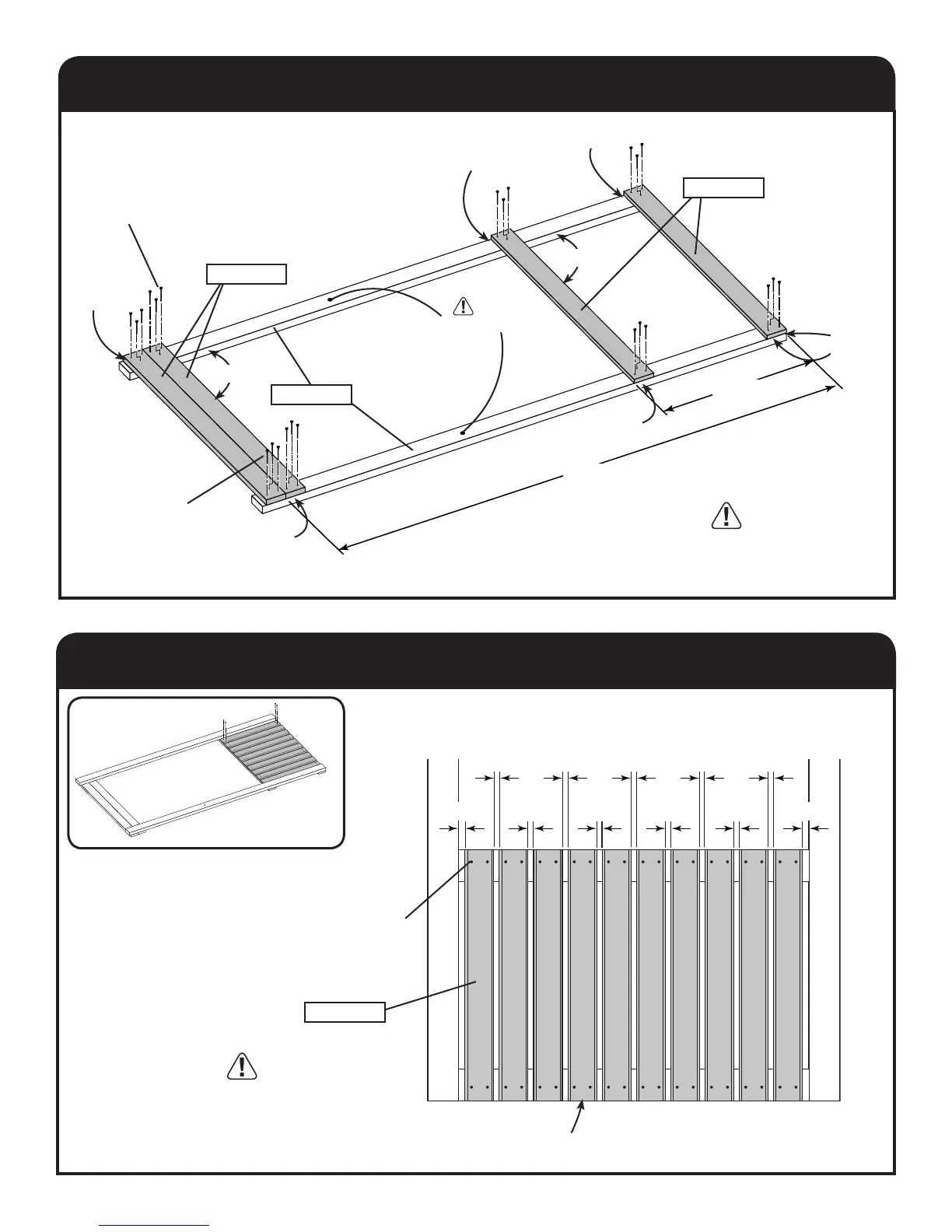

FRAME
ASSEMBLE
Note hole locations (2)
BOTTOM
Flush
Flush
90°
90°
2" Wood
Screws
x6
1-3/4" Wood Screws
x18
Flush
Flush
Flush
90-1/2"
27-1/2"
x2
3/4 x 3-3/8 x 45-1/8"
1820-CC
x2
5/8 x 3-3/8 x 45-1/8"
1817-CC
FLIP FRAME OVER TO
INSTALL BALUSTERS
Ensure Frame is square before
installing wood screws.
Space all Balusters 1/2" apart.
End balusters 5/8" from frame uprights.
Flush along bottom
BOTTOM
1/2" 1/2" 1/2" 1/2" 1/2"
1/2" 1/2" 1/2" 1/2"
5/8" 5/8"
30 mm Wood Screws
x40
x10
5/8 x 3-1/4 x 27-1/2"
2873-CC
Ensure Balusters are evenly spaced
installing wood screws.
x2
1-3/8 x 3-3/8 x 95"
1823-CC
Flush
