Backyard Play Systems 4431 - Fort: Bay Window Installation (Continued)

53
FORT
SAFETY BARRIER
FORT
BALUSTERS
Flush
EQUAL
EQUAL
LEVEL

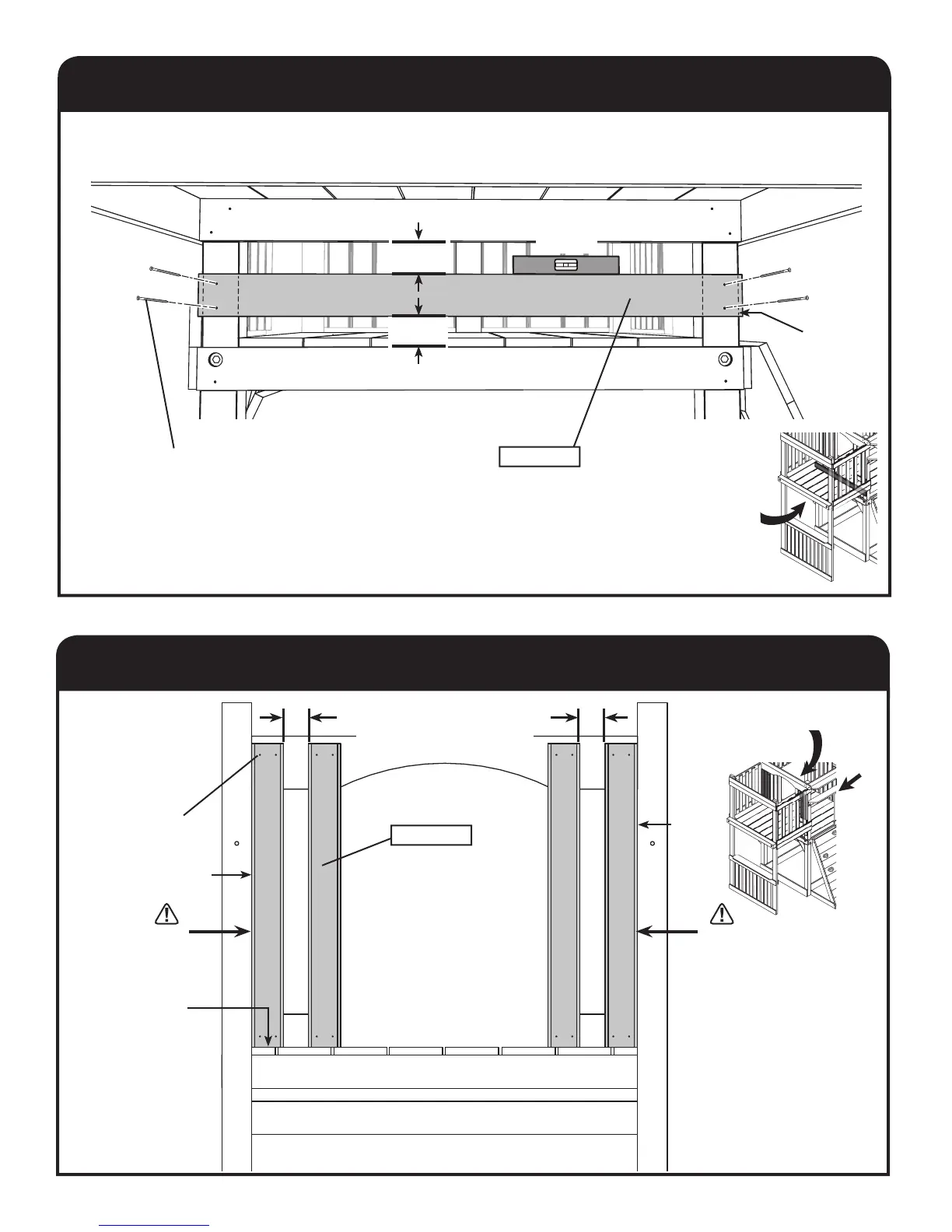

VIEW FROM UNDER
TERRACE
x1
2973-CC
3/4 x 3-3/8 x 45-1/8"
INSTALLATION:
UNDER TERRACE
2-1/2" Wood Screws
x4
30 mm
Wood Screws
x16
VIEW FROM INSIDE
FORT
INSTALLATION:
FROM INSIDE FORT
3x3" 3x3"
BEGIN
HERE
BEGIN
HERE
VIEW
Flush
Flush
Flush
x4
2523-CC
5/8 x 3-1/4 x 29-3/4"
2-1/2" 2-1/2"
