Backyard Play Systems 4431 - Swings Installation

57

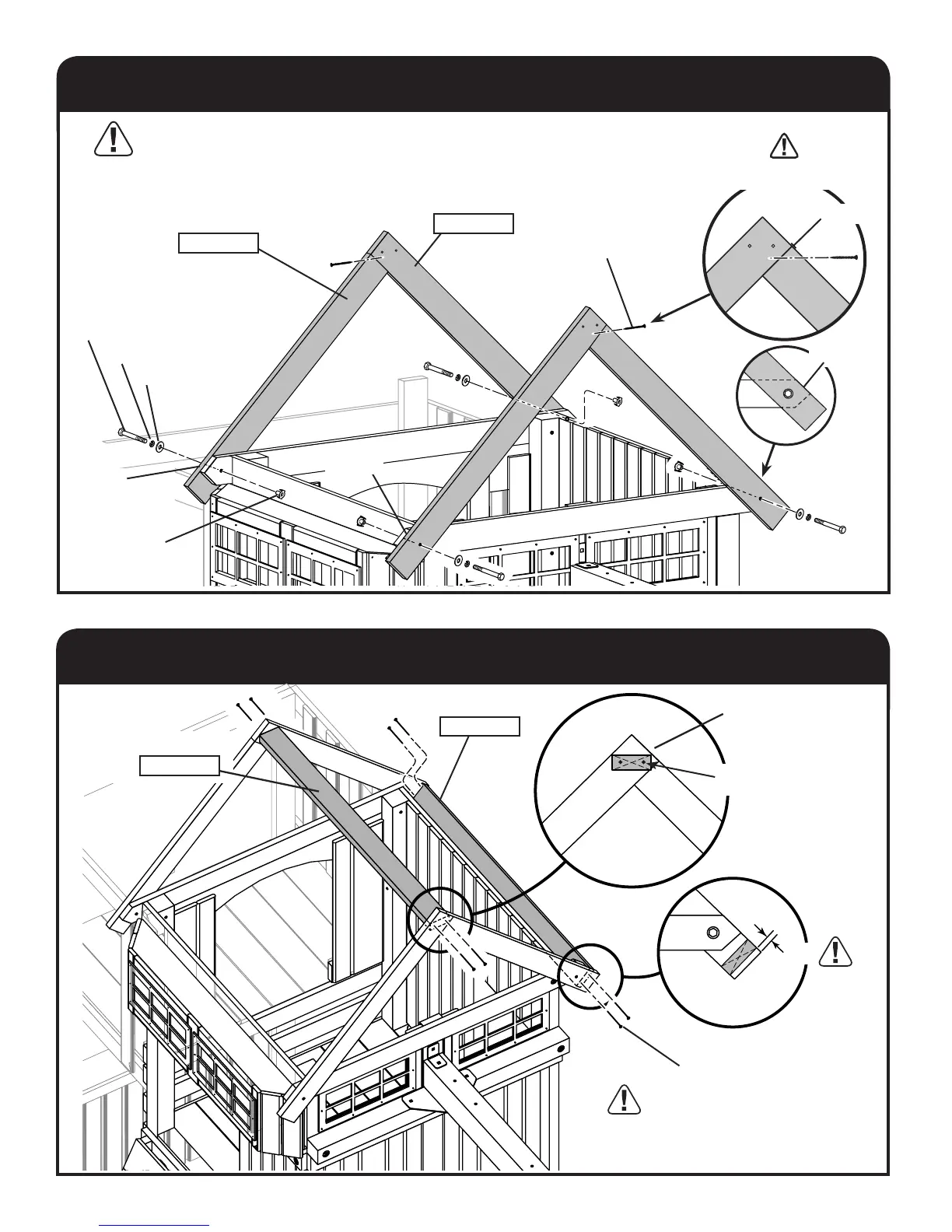

ROOF FRAME
ROOF FRAME
Flush
3/4"
Pre-drill 1/8" x 1" deep for
screws to avoid splitting.
2-1/2" Wood Screws
x8
x1
2971-CC
1 x 3-3/8 x 47-1/8"
x1
2972-CC
3/4 x 3-3/8 x 47-1/8"
x2
2964-CC
1 x 3-3/8 x 37-1/8"
Flush
x2
2963-CC
1 x 3-3/8 x 40-1/2"
Orient 2963-CC so that pre-drilled holes at the top are horizontal.
If the holes are not horizontal, rotate the board.
Secure 2964-CC and 2963-CC using 3" screws.
T-Nut
x4
x4
2" Hex Bolt
Flat Washer
Lock Washer
Flush
Flush
Use pre-drills
Flush
Look for Pre-Drill
at end of 2964-CC
2964-CC
3" Wood Screw
x2
