Backyard YardLine ASTON - PARTS IDENTIFICATION AND SIZES; FLOOR PARTS; WALL PARTS; RAFTER PARTS

WOODSIZECONVERSIONCHART
NominalBoardSize ActualSize
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS
RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
Alltreatedlumber
isstamped:
WALLS
x4
2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)
BLA
x2
2 x 4 x 79-1/8" (5,1 x 10,2 x 201,3 cm)
BJA
x2
2 x 4 x 74-1/4" (5,1 x 10,2 x 188,6 cm)
BNA
x2
2 x 4 x 72-5/8" (5,1 x 10,2 x 184,5 cm)
BFA
x3
2 x 4 x 72" (5,1 x 10,2 x 91,4 cm)
TM
x2
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM

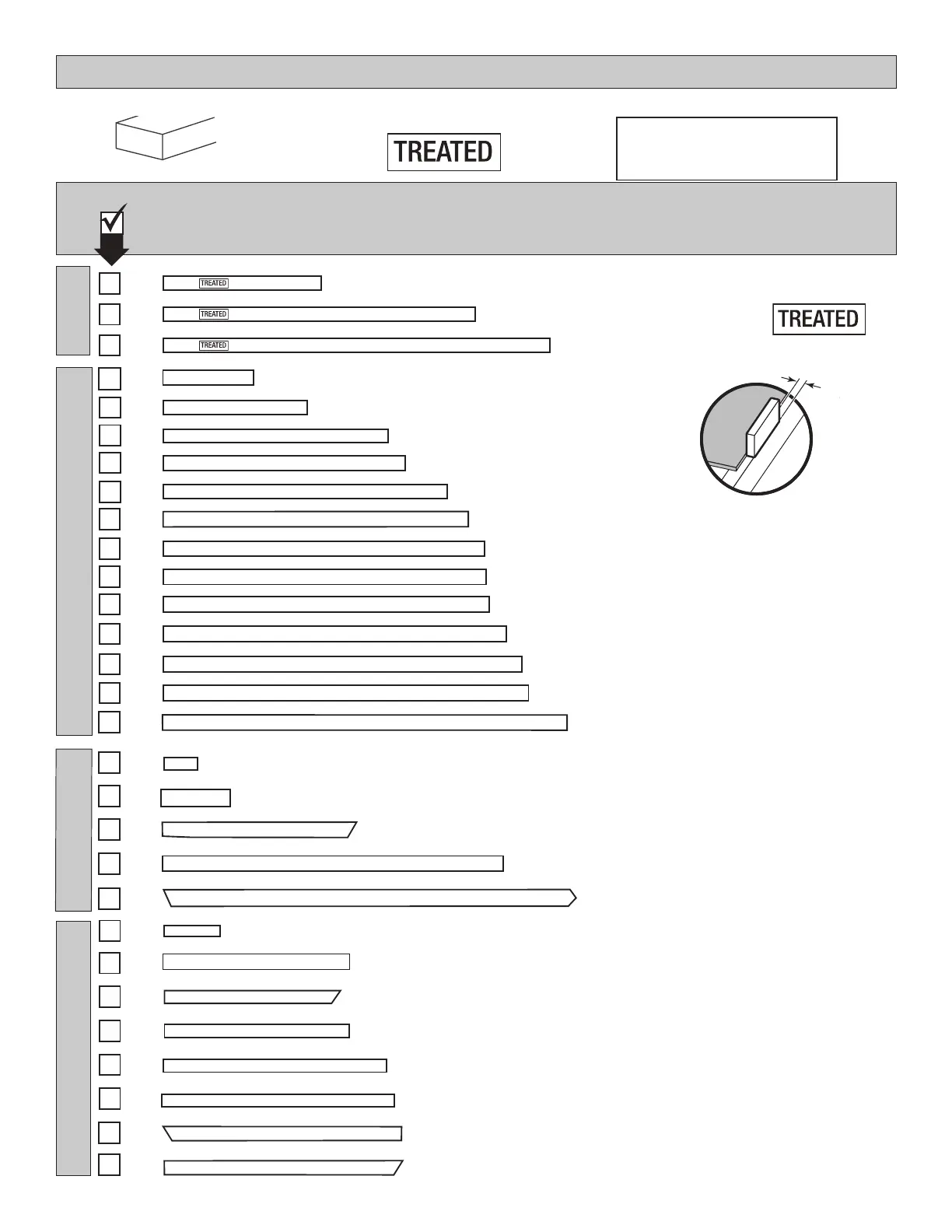

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
x2
1 x 3 x 72" (2,5 x 7,6 x 182,8 cm)
x1
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
TRIM
x2
19/32 x 3-1/2 x 48" (1,5 x 8,8 x 121,9 cm)
x1
19/32 x 3-1/2 x 52 - 3/8" (1,5 x 8,8 x 133 cm)
x2
2 x 3 x 33-1/8" (5,1 x 7,6 x 84,1 cm)
x1
x4
19/32 x 2 - 1/2 x 9" (1,5 x 6,3 x 22,9 cm)
x9
2 x 3 x 10-1/2" (5,1 x 7,6 x 26,7 cm)
x2
1 x 3 x 33 - 1/8" (2,5 x 7,6 x 84,1 cm)
BPA
x1
19/32 x 3-1/2 x 35-1/4" (1,5 x 8,8 x 89,5 cm)
BYA
x6
x3
x2
x2
2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
2 x 4 x 28" (5,1 x 10,2 x 71,1 cm)
2 x 4 x 45 - 5/8" (5,1 x 10,2 x 115,8 cm)
UX
SP
RR
BUA
BQA
FS
EY
x2
2 x 4 x 85-1/2" (5,1 x 10,2 x 217,2 cm)
BKA
2 x 4 x 16 - 1/2" (5,1 x 10,2 x 41,9 cm)
x4
3/4"
(1,9 cm)
RD
BMA
GAA
BRA
HJ
x9
2 x 4 x 93-3/16" (1,5 x 10,2 x 236,7 cm)
BOA
2 x 3 x 35-1/4" (5,1 x 7,6 x 89,5 cm)
ZT
x1
19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)
BXR
x1
19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)
BXL
x1
UN
2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)
4
FLOOR
x2
2 x 4 x 87" (5,1 x 10,2 x 220,9 cm)
x2
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x9
2 x 4 x 72" (5,1 x 10,2 x 182,8 cm)
