Bad Boy 1025H - MID PTO ASSEMBLY

B25W-202010
5
-
25
CHAPTER 5 TRANSMISSION1025H TRACTOR
5

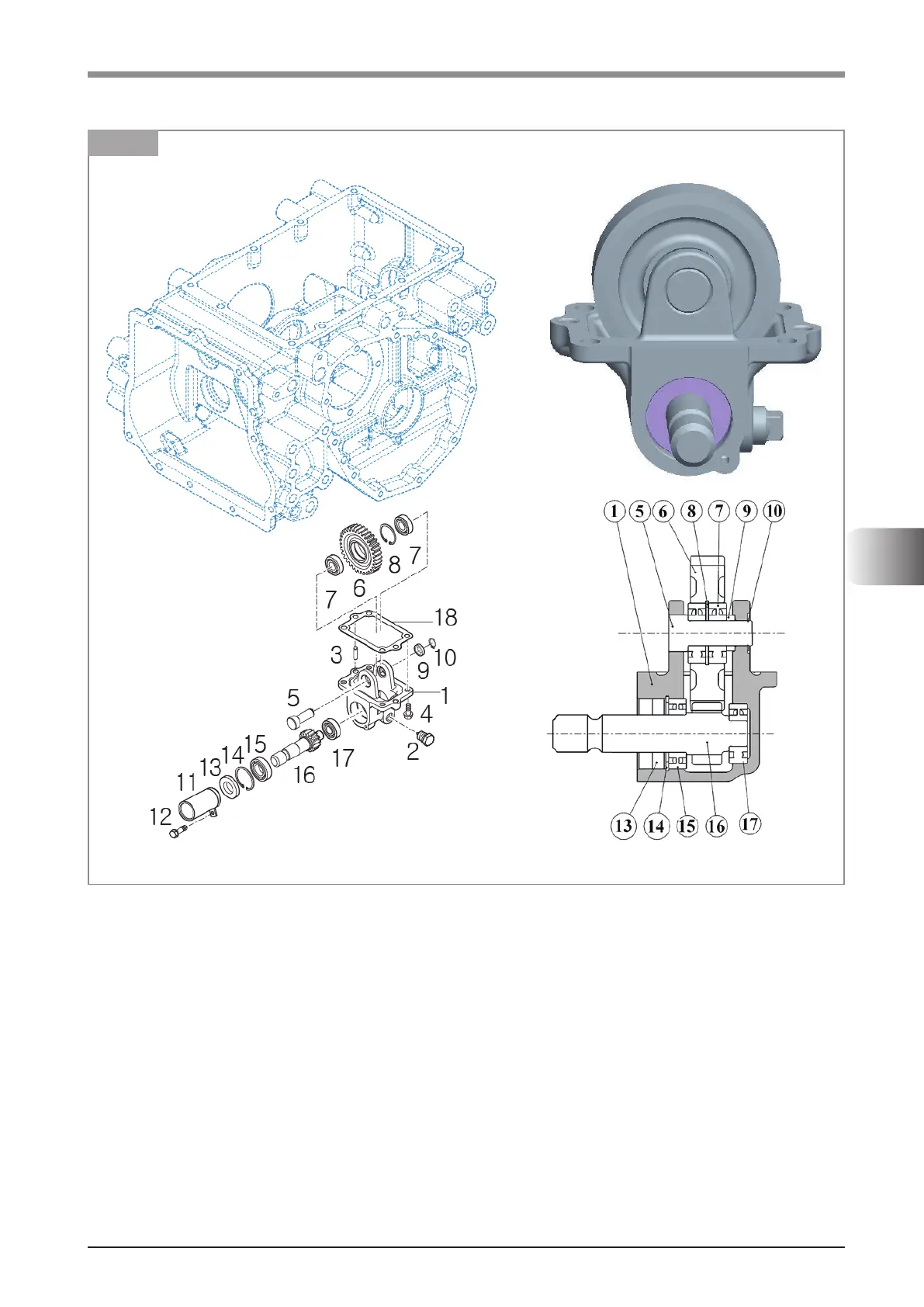

3.3 MID PTO ASSEMBLY
K25W142A
FIG.5-32
(1) CASE, MID PTO
(2) PLUG ASSY, DRAIN (MAGNET)
(3) PIN, PARALLEL/A (D10X22)
(4) BOLT, HEX/S (M10X25)
(5) SHAFT, MID PTO COUNT
(6) GEAR, SPUR 32T
(7) BEARING, BALL (6203)
(8) C-RING, HOLE (40)
(9) COLLAR, 17X24X6
(10) C-RING, SHAFT (17)
(11) CAP COMP, MID PTO SHAFT
(12) BOLT, HEX/S (M6X12)
(13) SEAL, OIL/D (25478)
(14) C-RING, HOLE (47)
(15) BEARING, BALL (6005)
(16) SHAFT, MID PTO
(17) BEARING, BALL (6203)
(18) GASKET, MID PTO (0.5)
