CHAPTER 6 FRONT AXLE (4WD) 1025H TRACTOR
NOTE
• Pay particular attention to the installed direction of thrust collar that is with the sharply-edged face turned
towards the nut.
Reassemble the parts in reverse order of disassembly, following these instructions.
1. When installing the bushes, abide by the following precautions.
2. Clean the surface in the front axle housing which the bush is located ahead of time.
3. Use an installer and press in the bush on a press until the bush reaches at stopper position of housing.
4. The bore surface of bush should be coated with grease.
5. Install the front axle assembly to the front axle bracket by the pin.
6. Install the collar and tighten the nut completely.
7. Lift the front axle bracket with a hydraulic jack to get the wheels of the ground.
8. Loosen the nut within turning 1/2 in order to roll the front axle assembly freely while the wheels are still off
the ground, move the axle on the center pivot pin as a nal check.
9. Install the split pin that it should be bent as shown in the picture below.
10. Install the grease nipple.
11. Fill the grease nipple with the multi-purpose grease sufciently.
NOTE
• Slanted or forced installation of the bush should be avoided, and the bore surface of the bush
should not be damaged.
3.1.3 REASSEMBLY

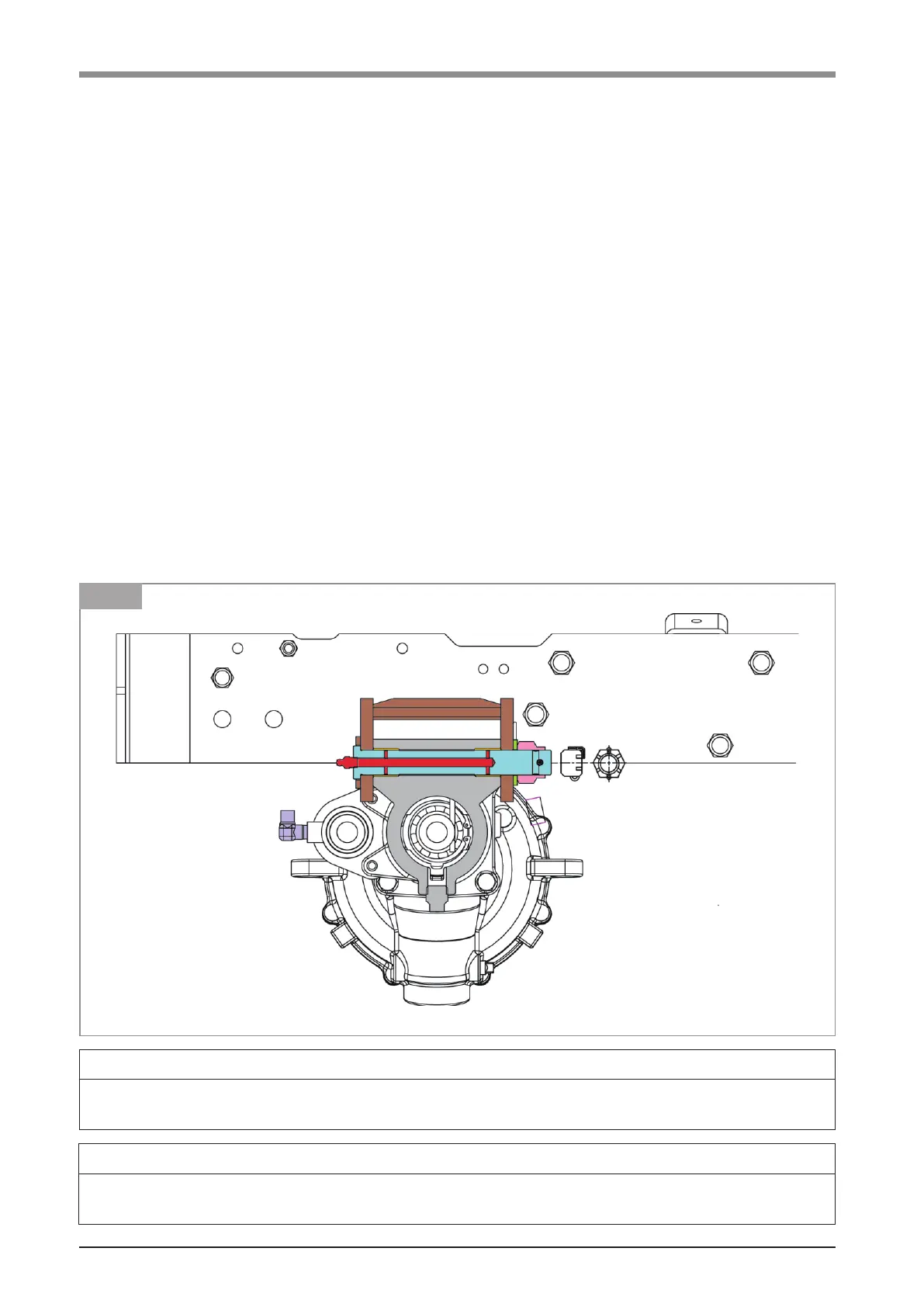

FIG.6-7
K25W165A
