CHAPTER 1 GENERAL INFORMATION 4025H/4035H/4035CH TRACTOR

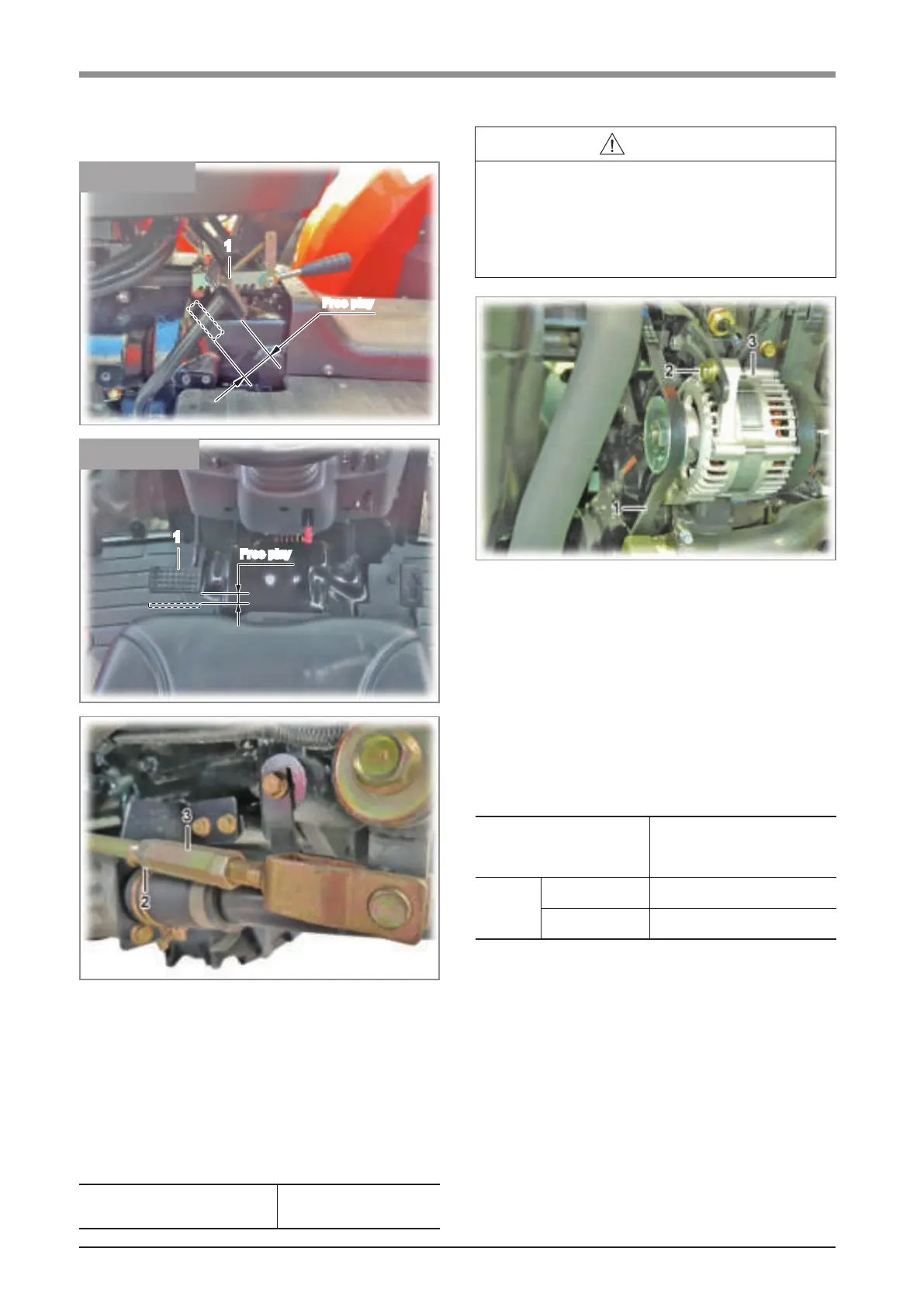

8.2.13 ADJUSTING BRAKE PEDAL
1. Release the parking brake.
BRAKE PEDAL FREE PLAY
5 - 10 mm
(0.19 - 0.39 in)
2. Depress the brake pedal (1) slightly and then
release it.
3. Check the free play of the pedal when releasing it.
4.
Unscrew the lock nut (2) of the brake rod under the
oorandturntheturnbuckle(3)toadjustthefreeplay.
5. Adjust both pedals to the same amount of free play.
6. Tighten the lock nut.
K3CW117A
8.2.14 ADJUSTING FAN BELT TENSION
1. Stop the engine, remove the ignition key and
apply the parking brake.
2. Check the tension of the fan belt (1).
3. Loosen the tension adjusting bolt (2).
4. Place a stick or pipe between the alternator (3)
and cylinder block.
5. Push the alternator outwards to adjust the fan
belt tension.
6. Tighten the adjusting bolt.
CAUTION
Stop the engine before adjusting the tension
of the fan belt.
When adjusting the fan belt tension, be care-
ful not to hurt your hands and damage the al-
ternator.
F42W131A
BELT DEFLECTION
[Pressing with
force of 10 kg (22 lb)]
10-15 mm (0.39-0.59 in)
TORQUE
VALUE
Mounting bolt 26 Nm(19 lb.ft)
Adjusting bolt 52 Nm(38 lb.ft)
1
I
u
h
h
#
s
od
|
B40W113A
ROPS MODEL
1
I
u
h
h
#
s
od
|
B40W114A
CABIN MODEL
