Interface Module XC Modbus
Protocol Converter / User Manual
Baer Energie- & Messtechnik GmbH Siemensstr. 3 D-90766 Fürth Phone +49 911 970590 Fax +49 911 9705950
Installation Hints
The installation must be done in a way, that even in the case of cable break no dangerous voltages
are applied to touchable parts of the module. Generally, meters are delivered with the communication
modules installed. The fitting of a meter with a communication module is, therefore, an exception and
can be necessary e.g. when a module needs to be replaced.
Strictly observe the safety regulations!
The interface module is exchangeable during the meter operation. Fit the interface module in the meter
as follows:

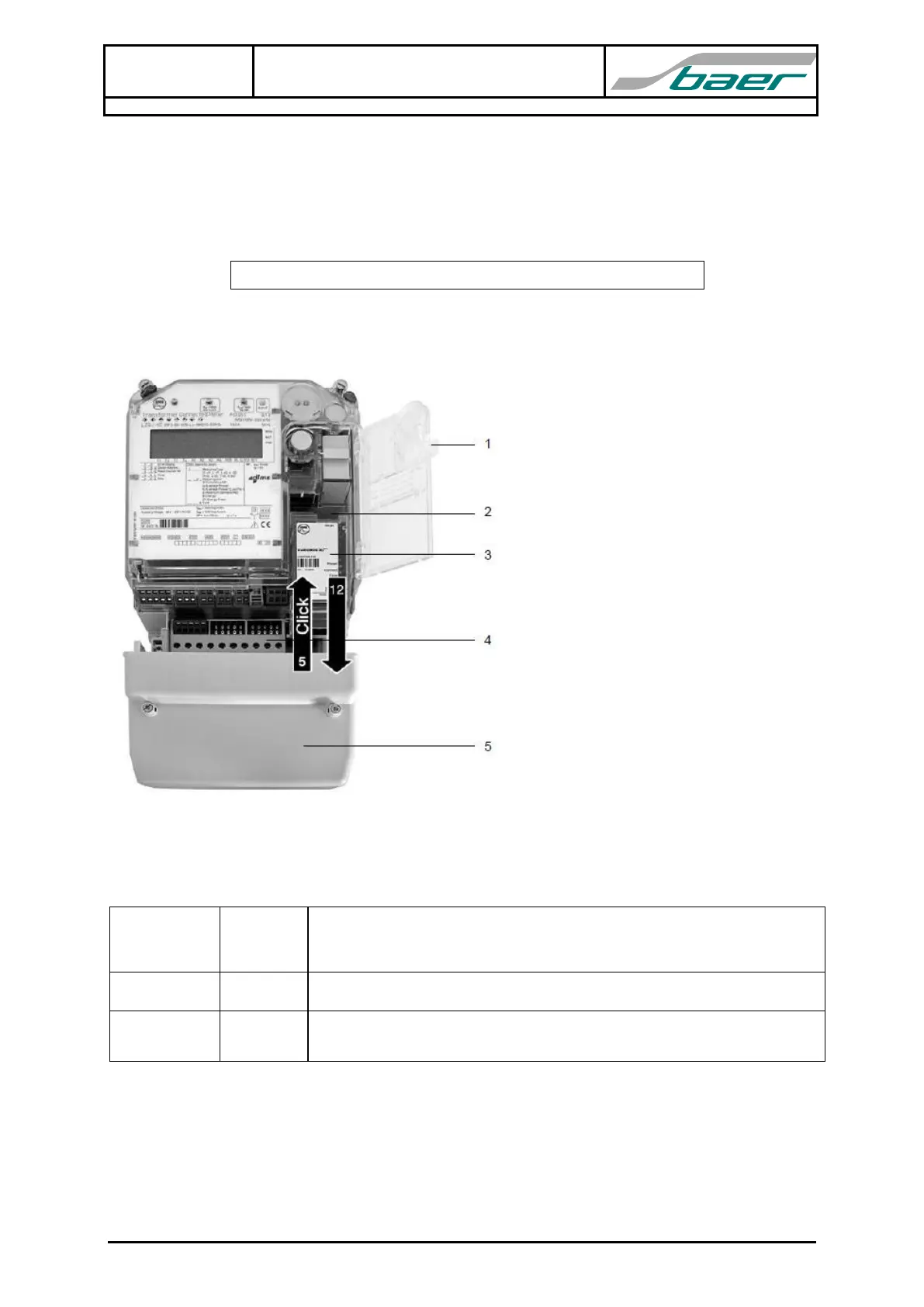

Installation of the interface module:
1. Check the interface module.
2. Remove the terminal cover [5].
3. Open the transparent module cover [1].
4. Insert the interface module [3] carefully at the
place provided in the meter [2].
5. Push the module in to the internal contacts.
6. Connect the cable.
7. Close the transparent module cover [1].
8. Close the terminal cover [5].
Removing of the interface module:
9. Remove the terminal cover [5].
10. Open the transparent module cover [1].
11. Disconnect the cable.
12. Remove the interface module.
13. Close the transparent module cover [1].
14. Close the terminal cover [5].
LED Displays
Three LED’s display the current operating status of the module and give information about the data
transfer.
Status and communication via Modbus interface:
LED signals, that the module is supplied with power
LED goes off during transmit data via Modbus (RS485) interface
Communication via Modbus (RS485) interface: receive data
Communication error (internal meter interface), LED flashes in 3 sec.
cycle
