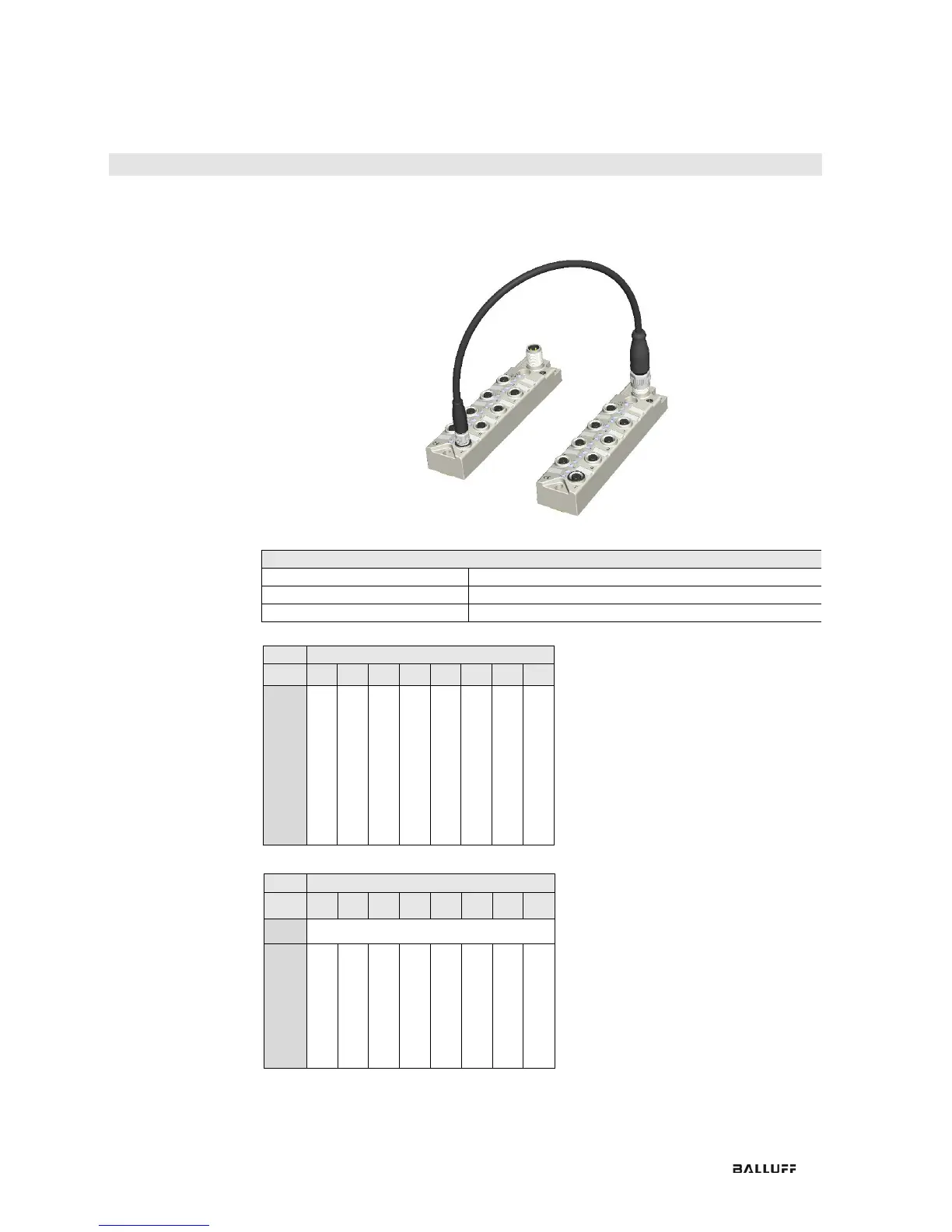

6 Configuration: extended with BNI IOL-102-002-Z019
6.1. IO-Link Data
BNI IOL-309-002-Z019 extended with BNI IOL-102-002-Z019
Transmission rate
COM2 (38.4 kbaud)
Minimum cycle time
4.0 ms
Process data length
2 byte input, 1 byte output
6.2. Process
Data/Input
Data
Byte
0
Bit 7 6 5 4 3 2 1 0
Description
-
Input Port 6 Pin 4
Input Port 5 Pin 4
Input Port 4 Pin 4
Input Port 3 Pin 4
Input Port 2 Pin 4
Input Port 1 Pin 4
Input Port 0 Pin 4
Byte
1
Bit 7 6 5 4 3 2 1 0
Extension port
Description
Input
Port 7 Pin 4
Input
Port 6 Pin 4
Input
Port 5 Pin 4
Input
Port 4 Pin 4
Input
Port 3 Pin 4
Input
Port 2 Pin 4
Input
Port 1 Pin 4
Input
Port 0 Pin 4
