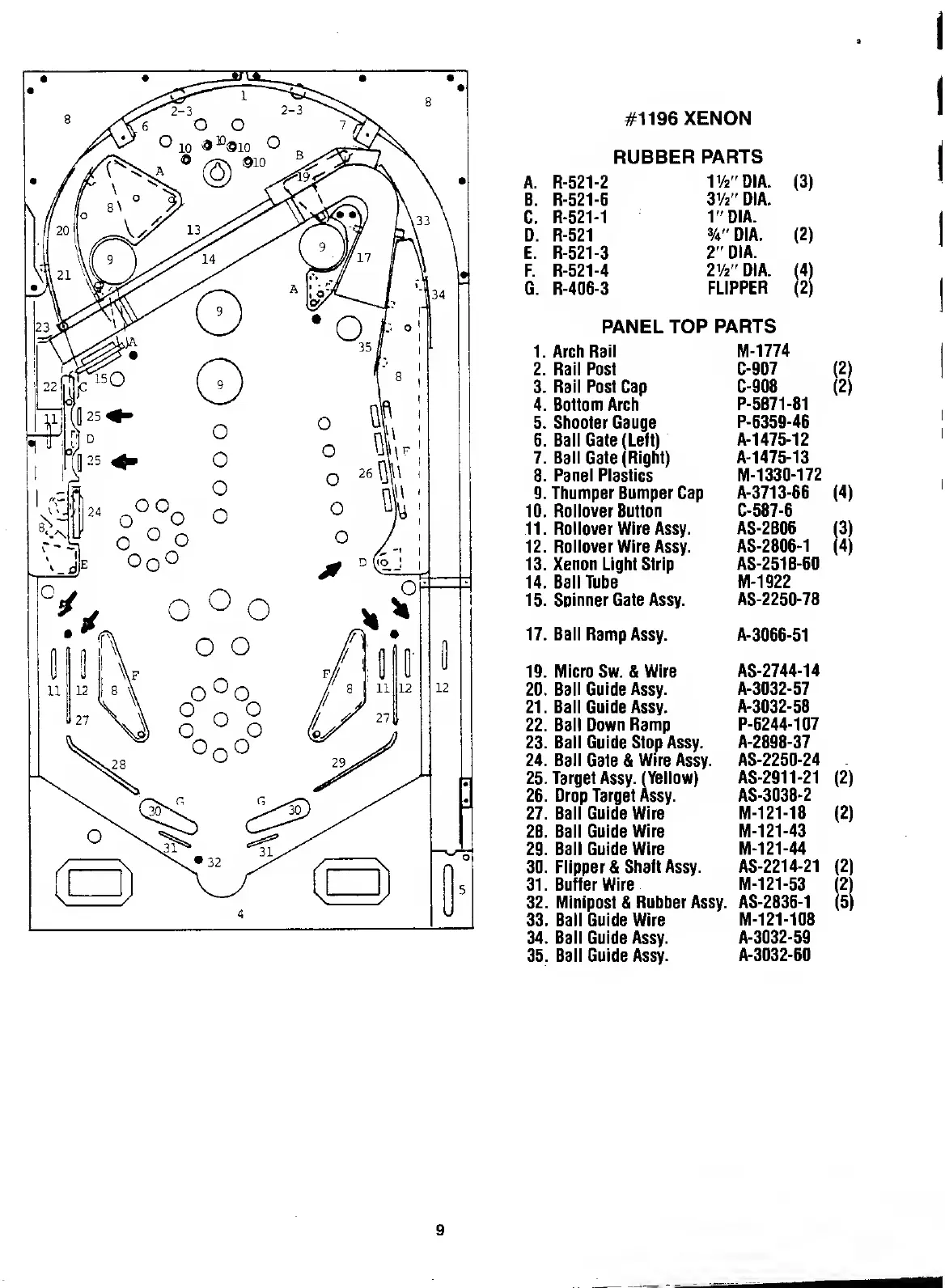

#1196 XENON
RUBBER PARTS
A. R-521-2
1WDIA.
(3)
B. R-521-6
3V2" DIA.
C.
R-521-1
1"DIA.
D. R-521
%"
DIA.
(2)
E. R-521-3
2"
DIA.
F. R-521 -4
2
1
/2"
DIA.
(4)
G. R-406-3
FLIPPER
(2)
PANEL
TOP PARTS
1. Arch
Rail M-1774
2. Rail Post C-907
(2)
3. Rail Post Cap C-908
(2)
4. Bottom Arch
P-5871-81
5. Shooter Gauge
P-6359-46
6. Ball Gate (Left)
A-1475-12
7. Ball Gate (Right) A-1475-13
8. Panel Plastics M-1
330-1
72
9.
Thumper Bumper Cap A-3713-66
(4)
10.
Rollover Button C-587-6
11. Rollover Wire Assy.
AS-2806
(3)
12. Rollover Wire Assy. AS-2806-1
(4)
13. Xenon Light Strip
AS-2518-60
14. Ball Tube
M-1 922
15. Soinner Gate Assy.
AS-2250-78
17. Ball Ramp
Assy. A-3066-51
19. Micro Sw. & Wire
AS-2744-14
20.
Ball Guide Assy. A-3032-57
21. Ball Guide Assy.
A-3032-58
22. Ball Down
Ramp P-6244-107
23. Ball Guide Stop Assy
A-2898-37
24. Ball
Gate &
Wire Assy. AS-2250-24
25. Target Assy. (Yellow)
AS-2911-21
(2)
26. Drop Target Assy. AS-3038-2
27. Ball Guide Wire
M-121-18
(2)
28. Ball Guide
Wire M-1
21
-43
29. Ball Guide Wire
M-1
21
-44
30. Flipper &
Shaft Assy. AS-2214-21
(2)
31. Buffer Wire
M-1
21
-53
(2)
32. Minipost & Rubber Assy. AS-2836-1
(5)
33. Ball Guide Wire
M-121-108
34. Ball Guide Assy.
A-3032-59
35. Ball Guide Assy.
A-3032-60
