The Banded "Axe" Combo Boat/Shore Blind is a versatile hunting blind designed for use both on a boat and on shore. This manual provides detailed instructions for assembling the blind and offers guidance on its secure attachment to a boat.

Function Description:

The "Axe" Combo Boat/Shore Blind serves as a portable concealment structure for hunters. Its dual functionality allows it to be deployed as a boat blind, providing cover while hunting from the water, or as a shore blind, offering concealment in various land-based environments. The blind is designed for quick assembly and disassembly, making it convenient for transport and setup in different hunting scenarios. The structure is built around a frame that supports a main cover and a front panel, creating an enclosed space for the hunter. The design incorporates features like hinged frame kits for easy "popping up and down" between hunting and transport positions, enhancing its utility and adaptability.

Important Technical Specifications:

The blind's frame is constructed from various interconnected components, including:

Bottom Corner Frames (A): 4 pieces, featuring welded ground stake brackets for shore use.
Front and Back Connect Frames (B): 4 pieces.
Top Corner Frames (C): 4 pieces.
Bottom Side Connect Frames (D): 2 pieces.
Top Side Connect Frames (E): 2 pieces.
Back Vertical Frame Kits (F): 2 sets, including bungee cord, aluminum hinges, steel sleeve, and quick pin sets.

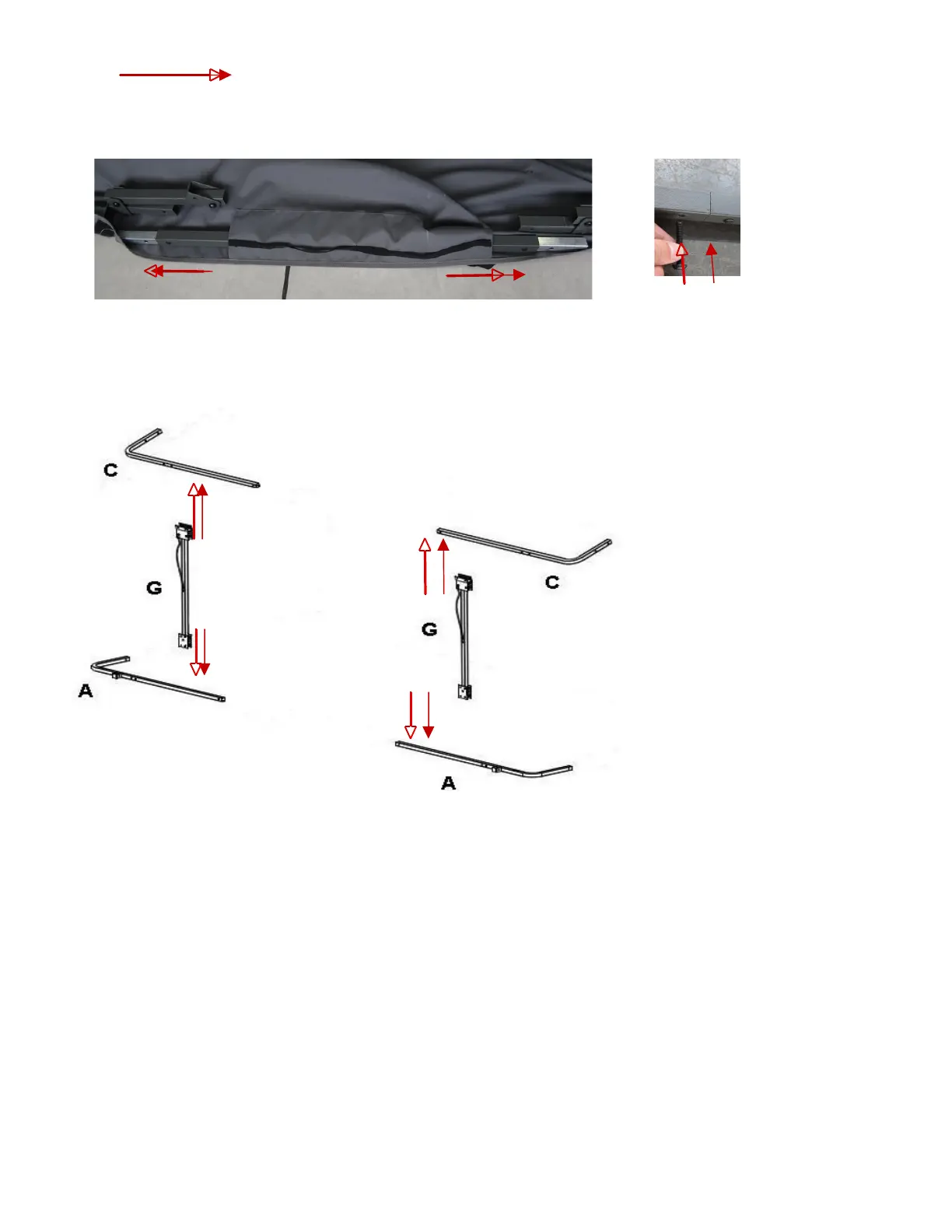

Front Vertical Frame Kits (G): 2 sets, including bungee cord, aluminum hinges, steel sleeve, and quick pin sets.
Roof Frame Kits (H): 2 pieces, with a "U" hinge on one end.
Roof Support Frame Kits (I): 2 pieces, with "U" hinges on each end.
Roof Round Frames (J): 4 pieces (6 pieces for EXL version).
Roof Round Connect Frames (K): 2 pieces (2 pieces for EXL version).

The hardware package (L) includes:

16 M6x30mm bolt sets.
4 boat mounting screw sets.
28 M6x37mm bolt sets.
1 open-end wrench.
1 Allen wrench.
4 threaded RivNuts with 1 setting tool (M8 wrench required for setting).
8 sleeve tubes for bolts.

The blind utilizes an Olive Blind Cover (M) and an Olive Front Panel (N) for concealment. The assembly process involves connecting these frame components using the provided bolts and nuts. The RivNut system is a key feature for securely attaching the blind to a boat, ensuring stability during transport and use.

Usage Features:

The "Axe" Combo Boat/Shore Blind is designed for ease of use and adaptability:

Dual Functionality: Can be used as a boat blind or a shore blind, offering flexibility for different hunting environments.
Quick Assembly/Disassembly: The modular frame design and bolt-and-nut connections facilitate relatively quick setup and takedown.
Boat Attachment System: The threaded RivNut system provides a secure method for mounting the blind to a boat. This is crucial for safe transport and improved functionality, especially when transitioning between hunting and transport positions. The process involves drilling 11/32" holes, installing RivNuts, and then bolting the blind to these points.
"Pop-Up" Functionality: The hinged frame kits (F and G) allow the blind to be easily "popped up and down" between hunting and transport positions, which is particularly beneficial for boat use.
Concealment: The Olive Blind Cover (M) and Front Panel (N) are designed to provide effective camouflage in natural environments.
EXL Version: An extended version (EXL) is available, which includes additional Roof Round Frames (J) and Roof Round Connect Frames (K) to accommodate larger setups.

Maintenance Features:

While the manual does not explicitly detail maintenance procedures, the following can be inferred:

Hardware Management: The inclusion of specific bolt and nut sizes (M6x30mm, M6x37mm) and tools (open-end wrench, Allen wrench) suggests that periodic tightening of fasteners may be necessary to maintain structural integrity.
RivNut System: The RivNut setting tool and instructions for its use imply that proper installation and occasional inspection of the RivNuts are important for maintaining a secure boat attachment. Over-tightening of bolts is cautioned against to prevent damage to the RivNuts.
Cover Care: Although not specified, the fabric covers (M and N) would likely benefit from cleaning and proper storage to prolong their lifespan and maintain their camouflage effectiveness.
Frame Inspection: Regular inspection of the frame components for any signs of wear, damage, or corrosion would be advisable, especially for the hinges and connection points, to ensure safe and reliable operation.
Warranty: Banded offers a 1-year warranty covering defects in material or workmanship, emphasizing the importance of retaining proof of purchase and registering the product for warranty claims. This suggests that the product is designed for durability, but users should be aware of the warranty terms for potential repairs or replacements.
