to select the stop current. Short press the button to adjust the value in
turn, and the stop current can be set between 0.01 and 0.30A.
Short press the "Next" button to switch to the main interface Ⅳ (wire
group measurement interface):

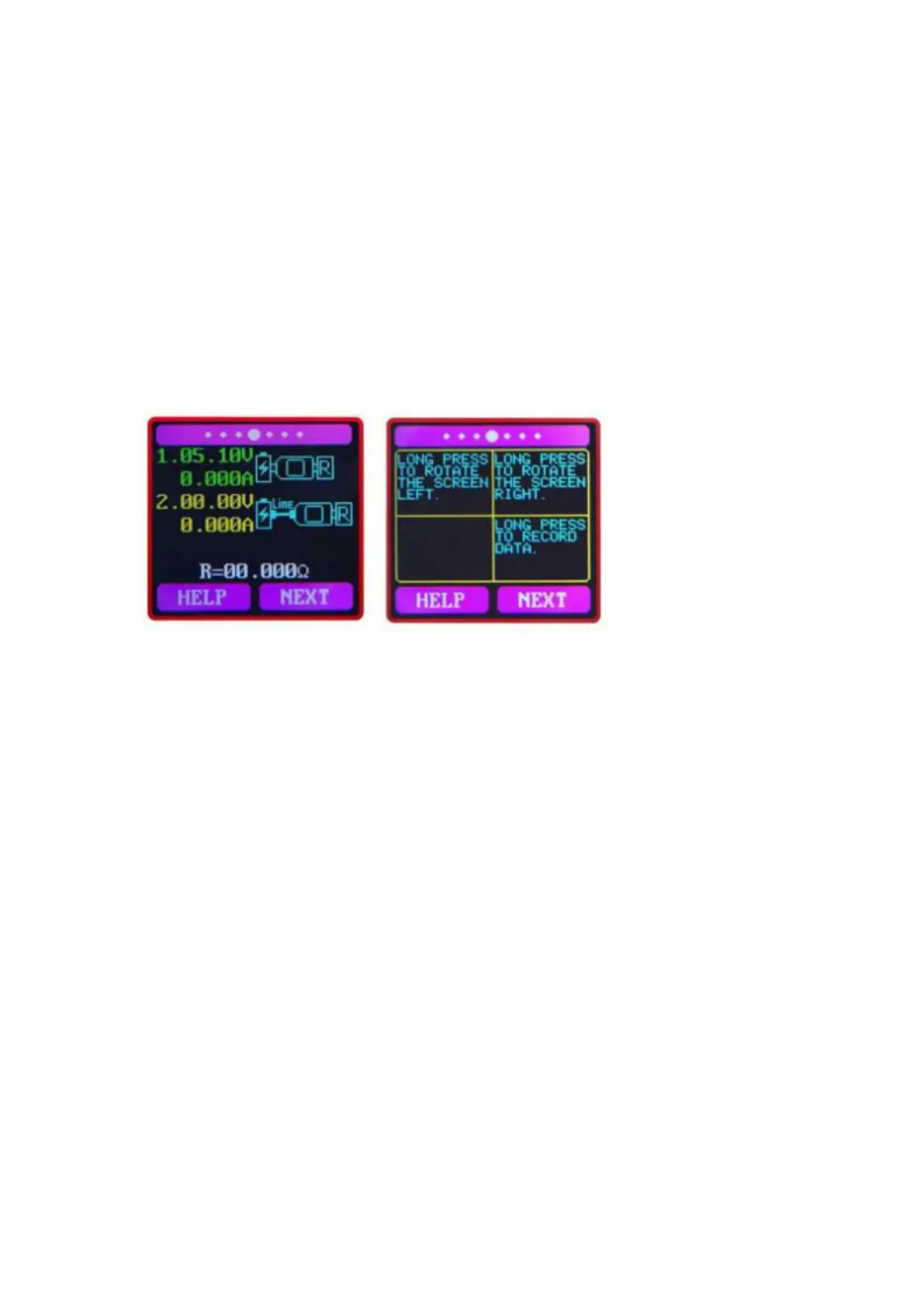

Main interface Ⅳ(wire group measurement interface):
1. The voltage current value of the tester directly connected to the
power supply.
2. The test instrument is connected to the voltage current value when
the data line is connected to the power supply.
R: DATA wire resistance
This product's interface can be used to measure the data line resistance
value, the operation steps:
The first step: the tester directly connect the power supply, adjusts the
appropriate load current (Recommendation 1A), long press the “Next”
button to record the data, and the right indicator icon stops flashing.
Step 2: Unplug the tester and connect the tester to the power supply
