baracuda G2 - Page 10

English

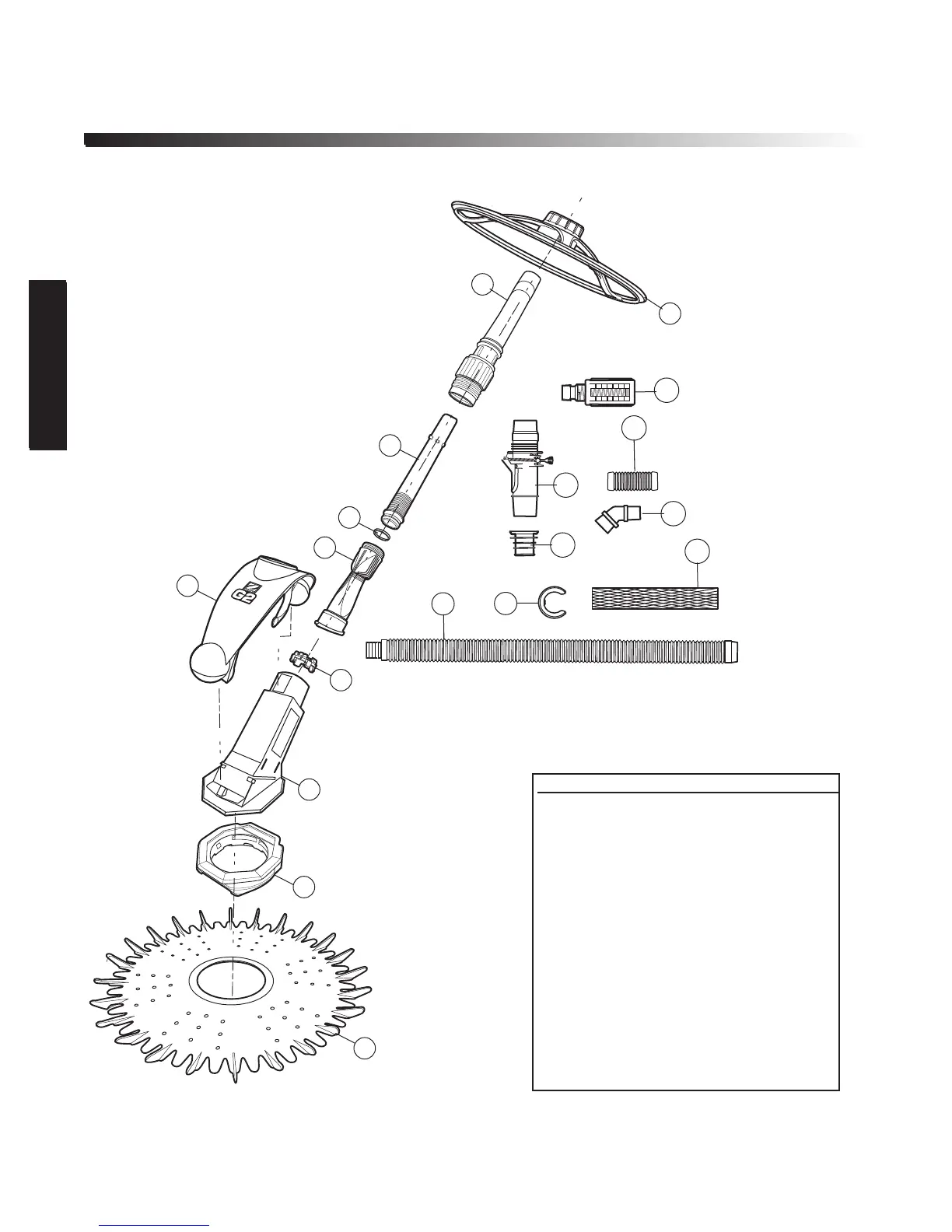

G2 Parts Diagram
English
10
12
15
16
11
17
14
13
1
2
3
4
5
6
7
8
10
9
18
0 1 2 3 4 5 6
6 5 4 3 2 1 0
No. Part Description Qty.
1 W83278 Wheel Deflector - 12” 1
2 W70460 Outer Extension Pipe 1
3 W56525 Inner Extension Pipe 1
4 W81600 Diaphragm Retaining Ring 1
5 W81701 Diaphragm 1
6 W70476 Weight / Float Assembly 1
7 W74000 Compression Ring 1
8 W70461 Inner Body 1
9 W70327 Foot Pad 1
10 W70464 Finned Disc 1
11 W70335 Flow Gauge 1
12 W33160 4-1/2” Connector 1
13 W60050 FlowKeeper™ Valve 1
14 W70263 In-ground Valve Cuff 1
15 W70244 45° Elbow 2
16 W33800 Hose Protector 1
17 W38260 Hose, 1 Meter 12
18 W83247 Hose Weight (US/Mexico) 2
W83247 Hose Weight (Canada) 1
